Box Blade vs Land Plane: Which Do You Need?
If you own a compact or utility tractor and you're staring at a rutted gravel driveway, a bumpy pasture, or ground you want to level for an arena or food plot, sooner or later you land on the same question: box blade vs land plane? Both are 3-point grading tools, both cut and move soil, and both live in the same price neighborhood — so it's easy to assume you only need one.
The honest answer is that they're built for different jobs. A box blade is a rough-grading, material-moving, dig-and-fill tool. A land plane is a smoothing and leveling tool that practically drives itself. Pick the wrong one for your work and you'll fight it every pass.
This guide breaks down what each implement actually does, which grades better for your task, how they compare on gravel driveways and new-ground leveling, what horsepower you need, and why a lot of experienced owners eventually keep both in the shed.
What a box blade actually does
A box blade is a three-sided steel box with a row of scarifier shanks (rippers) up front and cutting edges front and rear. Drop the shanks and you can tear into packed dirt, roots, and old gravel; the box then catches that loosened material and carries it to wherever it's low. Because the sides trap material, a box blade excels at moving volume — dragging soil from a high spot to a low one, filling potholes, backfilling, and building a crown down the center of a road.
The trade-off is skill. A box blade follows your tractor and your top-link setting, so it takes practice — and ideally a hydraulic top link — to get a flat result instead of a series of gouges and piles. Owners on tractor forums consistently describe box blades as the more capable tool and the one that "can do everything a land plane can and much more," but also the one that demands real seat time.
What a land plane actually does
A land plane (also called a land leveler, grader scraper, or land plane grader) is a longer frame with two angled blades set inside a rigid box that rides on skids or its own length. As you pull it, the front blade shaves off high spots and the material spills forward and drops into the low spots ahead of it. The long frame bridges dips and humps, so the tool essentially averages the surface flat — with, as one owner put it, "almost no learning curve." You drop it and go.
That self-leveling action is why land planes are the darling of anyone maintaining an established gravel driveway, road, or riding arena. They re-mix separated gravel, erase washboard, and finish a surface faster than a box blade — one operator reported finishing his road "in less than half the time" with a land plane. What they don't do well: dig deep, carry large volumes across a property, crown aggressively, or work rough off-road ground full of roots and rocks.
Box blade vs land plane: side-by-side comparison
Here's how the two stack up on the factors compact and utility tractor owners ask about most. Prices reflect the box blades and land planes in our own lineup.
| Factor | Box Blade | Land Plane |
|---|---|---|
| Best use | Rough grading, breaking hard ground, filling potholes, moving & spreading material, crowning, backfill | Smoothing & finishing, re-leveling, killing washboard, maintaining established drives, arenas, food plots |
| Learning curve | Steeper — rewards practice and a hydraulic top link | Very easy — practically self-leveling, "drop and go" |
| Gravel driveways | Best for repairs: deep potholes, adding & spreading new gravel, rebuilding a crown | Best for upkeep: fast smoothing, re-mixing gravel, erasing washboard between deliveries |
| New-ground leveling | Strong — shanks break sod/hardpan and the box carries fill to the lows | Limited on raw ground; shines once the rough cut is done and you want a finish pass |
| Price range | More affordable — roughly $1,100 and up in our lineup | Higher — roughly $1,700–$2,300 for the heavier builds |
| HP needs (rule of thumb) | ~4–6 HP per foot of width. A 60" suits ~25–35+ HP; a 72" ~35–50+ HP | Weight does the cutting; mid-size units suit ~25–45 HP, 84"+ planes prefer ~35–50+ HP |
Which grades better, a box blade or a land plane?
It depends entirely on what "grade" means for your job. For a finished, flat, smooth surface — the kind you want on an established driveway or a riding arena — the land plane grades better, and it does it with less skill and in less time. Its long frame won't chase every bump the way a box blade can in inexperienced hands, so it's far less likely to leave washboard behind.
For shaping ground — cutting a high spot down, hauling that dirt to a low spot, digging out a wallow, or building a crown so water sheds off your road — the box blade grades better because it can actually move meaningful volume and dig where you tell it. Think of it this way: the box blade builds the grade, the land plane perfects it.
Box blade or land plane for a gravel driveway?
This is the single most common question we hear, and the real-world answer from long-driveway owners is nuanced. If your driveway has deep potholes, soft spots, or you're spreading a fresh load of gravel, reach for the box blade — you need something that can dig, carry, and pack material and rebuild a crown. If your gravel is basically all there and the problem is washboard, ruts, and gravel that has separated by size, the land plane wins: it re-mixes and smooths in a fraction of the time and is nearly foolproof.
That's exactly why owners of longer drives so often report using a rear blade or box blade a few times a year for the heavy fixes, and a land plane far more often for routine smoothing. One tip that shows up again and again: work gravel when it's slightly damp (after rain), and don't blame the tool for potholes caused by hard braking — pack the fix well and it stays put.
Not sure which one fits your tractor?
Tell our equipment experts your HP, driveway length and what you're grading. We'll point you to the right box blade or land plane and walk through 3-point compatibility. Financing available, and we price-match.
Request a Quote Shop Land Grading Equipment Financing AvailableLand plane vs box blade for a compact tractor
On a compact tractor (roughly 25–45 HP), both tools work well as long as you size them right. The classic rule of thumb: pick an implement a little wider than your rear tires so you aren't driving in the rut you just cut. For a box blade, budget about 4–6 HP per foot of width — a 60-inch box blade is a comfortable match for many sub-compacts and compacts, while a 72-inch suits mid-compacts and utility tractors.
Land planes lean on weight as much as horsepower, because they cut by being dragged, not pushed. A heavier, well-built plane will grade cleaner and last longer, but you want enough tractor to pull it confidently. Lighter compacts do fine with mid-size planes on established ground; if you're planning an 84-inch-plus plane or a lot of raw dirt work, step up to 35+ HP. When in doubt, check our tractor and attachment compatibility page or just ask us.
Why many owners end up with both
Here's the pattern we see over and over: someone buys a box blade first (it's the versatile builder and the more affordable entry), uses it to rough-in a driveway or level a pad, then adds a land plane a season later once they realize how much faster and cleaner it finishes and maintains the surface. The box blade does the heavy, occasional building; the land plane does the frequent, easy upkeep. They're complements, not competitors — which is why "own both" is the near-unanimous verdict on the forums for anyone with real acreage or a long drive.
Featured box blades & land planes
Here are popular, in-stock picks on each side of the box blade vs land plane debate, from budget-friendly box blades to heavy-duty land planes:

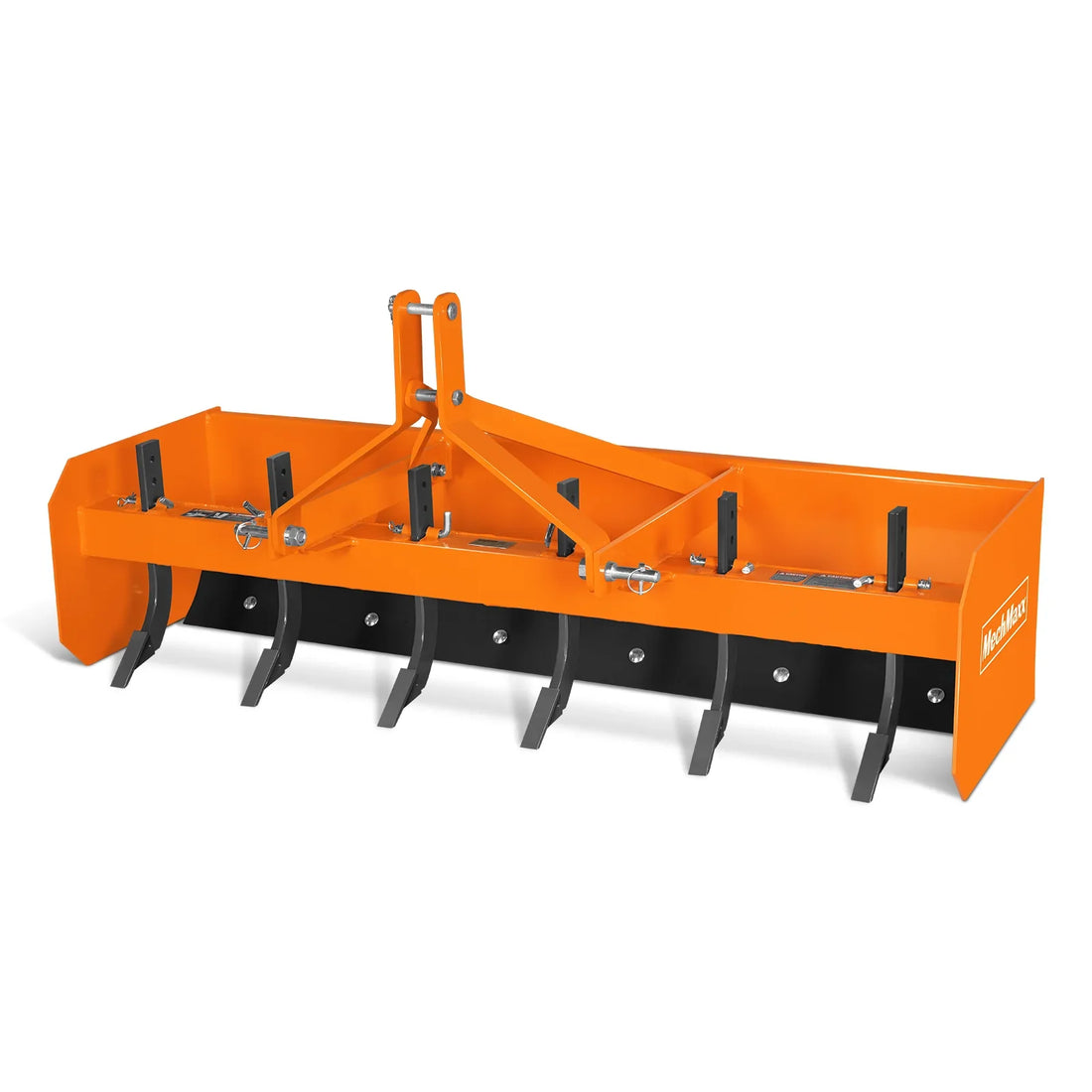

MechMaxx 72" Box Blade Scraper (6 Shanks)
MechMaxx 84" Land Plane / Land Leveler
Top Dog Land Plane
MechMaxx 60" Box Blade Scraper (5 Shanks)
How to choose — and the mistakes to avoid
- Match the width to your tractor, not your ego. An implement slightly wider than your rear tires grades cleanest. Oversizing on a light tractor just means you can't load the shanks or hold a line.
- Buy for your most common job. Building and moving material? Box blade. Maintaining ground that's already close? Land plane.
- Weight is your friend on a land plane. Heavier planes cut and finish better. Don't judge one on price alone.
- Add a hydraulic top link for box-blade work. It turns the steepest part of the learning curve into a joystick tap and makes crowning and fine grading far easier.
- Confirm your hitch category and lift capacity before you buy. Our team checks this for you, or use the compatibility guide.
Ready to grade smarter?
Shop our full range of box blades, land planes and grading tools — backed by manufacturer warranties and real experts you can talk to before you buy. Financing available.
Shop Land Planes & Graders Shop 3-Point Implements Request a QuoteFrequently Asked Questions
Is a land plane or box blade better for a gravel driveway?
Both, for different reasons. Use a box blade to fix deep potholes, add and spread new gravel, and rebuild a crown. Use a land plane for routine upkeep — it re-mixes separated gravel and erases washboard fast with almost no skill. If you can only own one and your gravel is mostly in place, most owners prefer a land plane for how easy and quick maintenance becomes.
Which grades flatter, a box blade or a land plane?
A land plane produces a flatter finished surface with less operator skill because its long frame bridges dips and averages the ground smooth. A box blade can grade just as flat in experienced hands and is far better at shaping — cutting highs, moving fill, and building a crown — but it takes practice to avoid gouges.
Can a compact tractor pull a land plane or box blade?
Yes. Most 25–45 HP compact tractors handle both if you size correctly. A good rule of thumb is roughly 4–6 HP per foot of box-blade width and an implement slightly wider than your rear tires. Land planes rely on weight to cut, so pick one your tractor can pull confidently and confirm your 3-point category and lift capacity first.
Do I really need both a box blade and a land plane?
Not to start. Many owners begin with a box blade because it's more versatile and affordable, then add a land plane once they see how much faster it finishes and maintains a surface. If you're building new ground and also maintaining a long drive or arena, owning both is common — the box blade builds, the land plane maintains.
Can a box blade or land plane move snow or spread gravel?
A box blade can push and back-drag light snow and is excellent at spreading and leveling a fresh load of gravel. A land plane will smooth packed snow on a drive but isn't a dedicated snow tool, and it spreads gravel more gently than a box blade. For heavy or frequent snow, a dedicated rear blade or snow pusher is the better choice.
Why are land planes more expensive than box blades?
Land planes use more steel — a longer frame and heavier build — because weight and length are what let them self-level and finish cleanly. In our lineup box blades start around $1,100 while land planes run roughly $1,700–$2,300, and the extra weight in a quality plane is worth it for grading performance and longevity.
