How to Choose a Box Blade for Your Compact Tractor
A box blade is one of the first attachments most people buy, and for good reason. The right box blade for a compact tractor will smooth a rutted driveway, cut a level pad, spread and grade gravel, and rip up hard-packed ground, all from the seat of your tractor. The trouble starts when you go to buy one. You are suddenly staring at a wall of choices: 48 inch or 72 inch, five shanks or eight, standard duty or heavy duty. Pick wrong and you will either overload a small tractor or end up with a blade too light to bite.
This guide is for compact and sub-compact tractor owners, homesteaders, and anyone maintaining a driveway, food plot, arena, or building site. We will walk through how to choose a box blade that actually matches your tractor, what size box blade you need by horsepower, why weight matters more than shank count, and the beginner mistakes that leave people frustrated on their first pass.
What size box blade for a compact tractor?
Width is the question everyone asks first, and it comes down to two things: coverage and capability. For coverage, you want the box blade at least as wide as the outside of your rear tires. If the blade is narrower than your track, you drive over ungraded ground with every pass and fight ridges all day. For capability, the blade has to be something your tractor can lift on the 3-point hitch and pull through the dirt without stalling or spinning.
Here is a sizing guide you can use as a starting point. Treat these as rules of thumb, not hard limits, since tractor weight, hydraulics, and ground conditions all matter.
| Tractor class | Engine HP (approx.) | Recommended box blade width | Typical shanks | Best for |
|---|---|---|---|---|
| Sub-compact | ~15–25 HP | 48–60 in | 5 | Light grading, food plots, small drives, spreading gravel |
| Compact | ~25–35 HP | 60–66 in | 5 | Driveways, leveling, moderate dirt work, arena footing |
| Compact / small utility | ~35–45 HP | 66–72 in | 5–6 | Longer driveways, building pads, heavier grading and ripping |
| Utility | ~45–65+ HP | 72–84 in and up | 6–8 | Acreage, road building, heavy leveling and material moving |
One thing new buyers often get backwards: for a box blade, a little too wide is usually better than too narrow, as long as your tractor can pull it. A wider blade covers your tracks and grades a smoother, flatter result. The limit is not the blade going wide, it is your tractor running out of lift capacity or traction. Check your loader-free lift rating at the ball ends and leave headroom.
Why box blade weight matters more than you think
If you remember one thing from this guide, make it this: weight is what makes a box blade cut. A box blade has no down-pressure of its own. It only bites as deep as its own mass and the tractor's top-link angle will drive it. Put a light, thin-steel blade on hard-packed clay or a compacted gravel road and it will skate right over the surface, riding up instead of digging in. That is the single most common complaint from people who bought "the cheap one."
This is the real difference between standard duty and heavy duty. Heavy duty box blades use thicker side plates, a heavier moldboard, and beefier shanks, adding a few hundred pounds that translate directly into cutting power on tough ground. Standard duty is fine for loose soil, spreading, and finish grading. If you deal with packed roads, dried clay, or you want to rip before you level, spend up for the heavier blade your tractor can handle. You will not regret the extra bite.
How many shanks and scarifiers do you need?
Shanks, also called scarifiers or ripper teeth, are the downward-pointing shafts that break up hard ground ahead of the blade. On most box blades they are adjustable: you drop them below the cutting edge to rip, or raise them up out of the way for finish grading. More shanks means more soil-breaking coverage, but it also takes more horsepower and traction to pull them all through packed dirt at full depth.
For a compact tractor, five shanks on a 60-inch blade or six on a 72-inch blade is a well-matched setup. If the ground is really hard, you don't have to run every shank at full depth, and you can make shallow ripping passes and let the blade clean up behind. Ripper shanks with replaceable points are worth looking for, since the points wear and it is far cheaper to swap a tip than replace a whole shank. Bolt-on reversible cutting edges are the same idea: they extend the life of the wear parts you actually use up.
Not sure which box blade fits your tractor?
Talk to our equipment experts before you buy. We'll walk you through width, weight, your horsepower and your lift capacity. Financing available, and we price-match.
Request a Quote Shop Land Grading Equipment Financing availableUsing a box blade to level and grade
A box blade grades in both directions, and learning to use both is what separates a smooth driveway from a washboard. Pull the front cutting edge forward to slice off high spots and load the box with material. Then, as you drag that material into low spots, the trailing rear edge and the loaded box act like a float, smoothing and leveling as you go. Many owners make a cutting pass forward, then drag the loose material backward to feather it out.
The top link is your depth and attitude control. Shorten it to tip the front edge down and dig; lengthen it to level the box out and float for a smooth finish. The biggest secret is patience: make several light passes rather than one deep gouge. Trying to move a mountain in a single pass just digs a hole, bogs the tractor, and leaves ridges. Keep your speed low, let the box carry material, and check your results often.
Common beginner mistakes to avoid
- Buying too light. The number one regret. A blade that won't bite hard ground is useless on the exact jobs you bought it for.
- Buying too narrow. If the box is narrower than your rear tires, you keep driving over ground you haven't graded. Match or slightly exceed your track width.
- Cutting too deep, too fast. Deep cuts overload the tractor and leave gouges. Light passes at low speed give a flatter, more controllable result.
- Never touching the top link. The top link controls whether you dig or float. If you leave it set and wonder why nothing works, that's why.
- Expecting laser-flat results by hand. A box blade smooths and grades, but true dead-level takes practice or a laser/2-way grading option. Give yourself a few sessions to build the feel.
- Ignoring hitch compatibility. Confirm the blade's 3-point category (Cat 1 for most compacts) matches your tractor before ordering.
Featured box blades for compact tractors
These MechMaxx box blade scrapers are popular, well-matched picks for compact and utility tractors. All mount to a standard 3-point hitch and include ripper shanks.

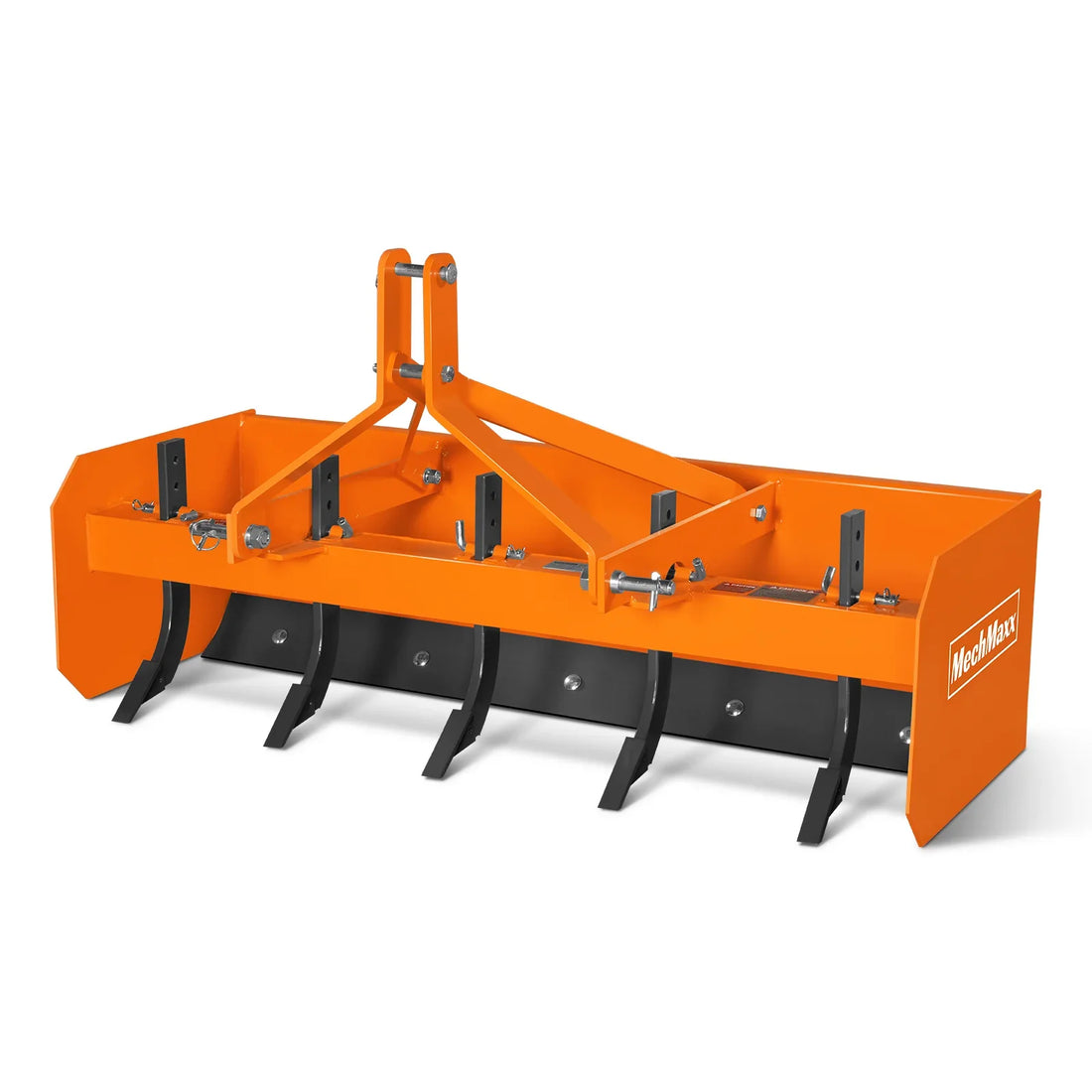

MechMaxx 60" Box Blade Scraper (5 Shanks)
$1,099 — Ideal for 25–35 HP compact tractors.
View details →
MechMaxx 72" Box Blade Scraper (6 Shanks)
$1,119 — Great all-arounder for 35–45 HP tractors.
View details →
MechMaxx 96" Box Blade Scraper (8 Shanks)
$1,599 — Heavy-duty width for 45+ HP utility tractors.
View details →Not sure a box blade fits your machine? Check our tractor and attachment compatibility guide, or browse the full range of 3-point implements.
Frequently Asked Questions
What size box blade do I need for a 25 HP tractor?
For a 25 HP sub-compact or small compact tractor, a 48 to 60 inch box blade is the right range. Aim to match the blade width to the outside of your rear tires so it covers your tracks, and stay on the lighter end so your tractor can lift and pull it comfortably on hard ground.
What size box blade for a 35 HP or 45 HP tractor?
A 35 HP compact tractor pairs well with a 60 to 66 inch box blade, and a 40 to 45 HP tractor can typically handle 66 to 72 inches. At the top of that range, a heavier-duty blade is worth it because you have the horsepower and traction to use the extra weight for deeper cutting.
Is a heavier box blade better?
For cutting hard or packed ground, yes. A box blade digs using its own weight, so a heavier, heavier-duty blade bites where a light one skates across the top. As long as your tractor can lift and pull it, buy the heaviest blade in your chosen width. You can always cut shallow with a heavy blade.
How many shanks or scarifiers should a box blade have?
Most compact-tractor box blades come with five or six shanks, which is plenty. Shanks rip and loosen hard ground ahead of the blade, and you can raise them for finish grading. More shanks cover more ground but take more horsepower to pull at full depth, so match shank count to your tractor rather than maxing it out.
Can you level and grade with a box blade?
Yes. Cut high spots with the front edge to load the box, then drag that material into low spots so the loaded box and rear edge float the surface smooth. Use the top link to control cutting depth, work in several light passes at low speed, and you can level driveways, pads, and food plots effectively.
What's the difference between a box blade and a land plane?
A box blade is the more versatile tool: its shanks rip hard ground and it moves and grades loose material well, making it the better choice for building, cutting, and filling. A land plane excels at finish-smoothing an already-loose gravel driveway. Many owners start with a box blade because it does more jobs.
Ready to pick the right box blade?
Ask our experts about sizing and lock in our price-match. Financing available. Call or text (817) 587-4397.
Request a Quote Shop 3-Point Implements Financing availableRelated reading: Land Grading Equipment · Tractor Implements Buying Guide for Small Farms & Homesteads
By the Farmer Direct Supply Team
