Rotary Tiller for Tractor: 3-Point Sizing & Buying Guide

Buying a rotary tiller for tractor work is really a sizing decision first and a features decision second. Match the tiller to your tractor's PTO horsepower and 3-point lift and it will turn hard, crusted ground into a fine, plantable seedbed in a pass or two. Size it wrong and you'll either bog the tractor down in every heavy patch or buy more implement than your hitch can safely pick up.

This 3-point tiller buying guide is written for homesteaders, market gardeners, food-plotters, and sub-compact, compact, and utility tractor owners who want to break new ground or maintain a garden without guessing. We'll cover how to match tiller width to PTO HP, gear-drive vs chain-drive, forward vs reverse-tine rotation, slip clutch vs shear bolt, and the adjustable skids and tailgate that most buyers overlook.

If you'd rather just talk it through, our equipment experts help buyers spec the right rotary tiller for their tractor every day — every unit ships by freight with expert help, price-match, and financing available.

Rotary Tiller for Tractor: What Size Do You Need?

Start with your tractor's PTO horsepower, not its engine horsepower. Engine HP is always the bigger, more flattering number, and sizing off it is the most common way people end up underpowered. Your PTO HP is listed in the tractor's spec sheet or owner's manual; if you can't find it, our team can look it up with you.

Two simple rules do most of the work. First, aim for roughly 4–6 PTO HP per foot of tilling width — the low end is fine for maintained garden soil, the high end is what you want for hard, rocky, or virgin ground. Second, choose a tiller that's a little wider than your rear wheel track. If the tiller is narrower than your tires, you'll pack down soil with your wheels and leave untilled strips you have to chase on the next pass.

Use this table as a starting point, then confirm against the specific model's rated HP range and your lift capacity.

These are guidance ranges, not hard limits. Drier, previously worked soil lowers the HP you actually need; hard clay, sod, and rocks raise it. When in doubt, size the tiller to the toughest ground you'll routinely work, not the easiest — and remember that a heavier tiller digs better because its own weight helps hold the tines in the dirt instead of bouncing across the top.

Gear-Drive vs Chain-Drive Tiller: Which Should You Buy?

This is the question that trips up most first-time buyers. Both designs power the tine rotor off the same gearbox — the difference is how the drive reaches the rotor at the far end.

Here's the honest version experienced owners will tell you: for most homestead and garden use, a well-built chain-drive tiller works fine for years. But if you're breaking hard new ground, running a larger tiller near the top of your tractor's range, or expect to use it a lot, a gear-drive tiller is the more forgiving long-term buy. It transmits power positively with nothing to stretch, which is why Farm-Maxx builds its FTM and FTL tillers as gear-drive units.

Forward vs Reverse-Tine Rotation: Which Is Better for New Ground?

Almost every 3-point rotary tiller you'll shop is forward-rotating — the tines spin the same direction as the tractor's wheels. Forward-tine tillers are simpler, less expensive, safer (the tines strike obstacles on the down-stroke and hop over them), and they do a great job on soil that's already been worked. For yearly garden tilling, food-plot refresh, and seedbed prep, a forward-tine tiller is usually all you need.

Reverse-tine (reverse-rotation) tillers spin the tines backward, against the direction of travel, so they claw down into the ground instead of climbing out of it. Owners who bust virgin sod and hard clay swear by them: a reverse tiller digs deeper in a single pass and pulls the tractor back rather than lunging it forward. The trade-offs are real, though — reverse units cost more, take more abuse from rocks (which get thrown around internally), and are overkill for maintained ground.

Bottom line: if you mostly maintain an established garden or food plot, go forward-tine and save the money. If your main job is breaking hard new ground on the first pass, a reverse-tine tiller earns its premium.

Slip Clutch vs Shear Bolt: How Is the Driveline Protected?

When your tines hit a buried root or rock, something has to give before the gearbox or PTO shaft does. There are two common ways a tiller handles that shock load:

• Slip clutch: Spring-loaded friction plates that momentarily slip when they hit an overload, then re-engage on their own. It's adjustable, protects the driveline continuously, and doesn't leave you stranded — the preferred setup for rocky ground and hard tilling. It just needs to be "burnished" (seated) occasionally per the manual.
• Shear bolt: A sacrificial bolt that snaps under excessive force to protect the gearbox. Simple and cheap, but when it breaks you stop, dig out the pieces, and install a replacement of the exact same grade — never a harder bolt, or you defeat the protection.

For occasional light garden work a shear bolt is fine. If you're tilling new or rocky ground, a slip clutch is worth paying for.

Don't Overlook the Skids and Tailgate

Two adjustments control how your finished seedbed actually looks. Adjustable skid shoes on the sides set your tilling depth — raise them for a deeper bite in loose soil, lower them to skim a shallow pass. The hinged rear tailgate (leveling shield) rides behind the tines and knocks the tilled soil down into a smooth, level bed; lifting it lets you leave a coarser, cloddier finish for drainage, while lowering it gives you a finer seedbed. Also look for 6-tine flanges rather than 4 — more tines per rotation means more cuts and a finer tilth. These are the details that separate a tiller that "works" from one you're happy with every season.

Garden, Food Plot, or Breaking New Ground?

Match the machine to the job. For a home or market garden, a right-sized forward-tine tiller with a slip clutch and adjustable tailgate gives you a fine, ready-to-plant seedbed and fits through gates. For food plots, prioritize width for coverage and enough tractor HP to work through weedy, semi-worked dirt in one or two passes. For breaking new ground — old pasture, sod, hard clay — lean toward a heavier, gear-drive tiller (and consider reverse-tine if it's truly virgin ground), plan on multiple passes, and don't undersize. If you're not sure your tractor can handle the width you want, our Tractor & Attachment Compatibility page and our team can confirm PTO HP and lift before you order.

Featured Rotary Tillers

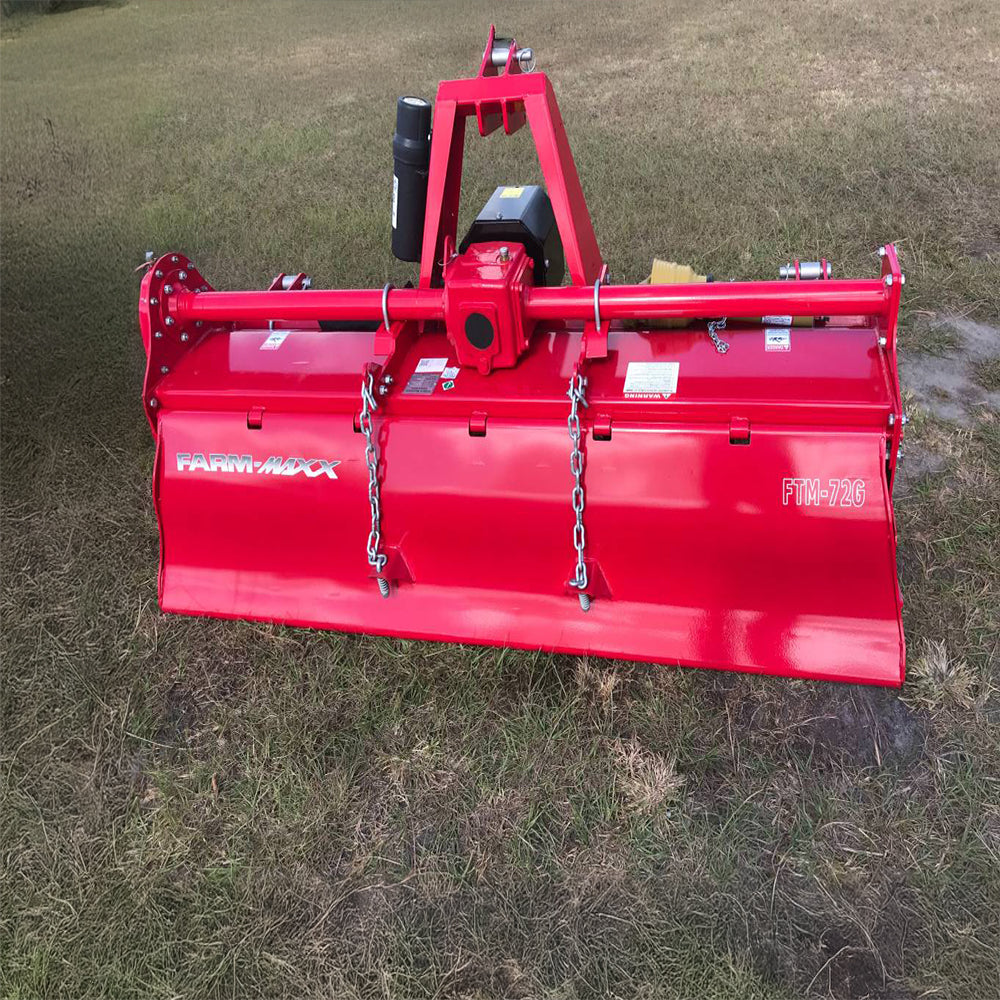

Farm-Maxx FTM Medium-Duty Gear-Drive Rotary Tiller

$2,795

View details →

Farm-Maxx FTL Compact Gear-Drive Rotary Tiller

$2,200

View details →

Farm-Maxx FTC Sub-Compact Rotary Tiller

$1,500

View details →

Frequently Asked Questions

What size rotary tiller do I need for my tractor?

Start with PTO horsepower and plan on roughly 4–6 PTO HP per foot of tilling width — the higher end for hard or new ground. As a class guide, sub-compact tractors (under ~25 PTO HP) suit a 42"–48" tiller, compacts (~25–45 HP) a 48"–66" tiller with 60" being the sweet spot, and utility tractors (~45 HP and up) a 72" or wider tiller. Also pick a tiller a few inches wider than your rear tire track so each pass tills out your wheel marks, and confirm the tiller's weight is within your 3-point lift capacity.

Is a gear-drive or chain-drive tiller better?

Both work off the same gearbox; the difference is how power reaches the far end of the rotor. Chain-drive is simpler and less expensive and is plenty for light-to-medium garden work. Gear-drive costs more but transmits power positively with nothing to stretch, so it's the more durable choice for hard ground, larger widths, and frequent use. If you're breaking new ground or running near the top of your tractor's range, gear-drive is the safer long-term buy.

Do I need a reverse-tine (reverse rotation) tiller?

Only if your main job is breaking hard, virgin ground. Reverse-tine tillers claw downward against the direction of travel and dig deeper in a single pass, but they cost more and take more abuse from rocks. For maintaining an established garden or food plot, a standard forward-tine tiller is simpler, cheaper, and does the job well.

Slip clutch or shear bolt — which should I choose?

A slip clutch uses spring-loaded friction plates that slip under an overload and re-engage on their own, giving continuous, adjustable protection without leaving you stranded — best for rocky or hard ground. A shear bolt is cheaper but snaps when overloaded, so you have to stop and replace it with a bolt of the exact same grade. For anything beyond occasional light tilling, a slip clutch is worth it.

Can a tiller be too big for my tractor?

Yes. Too wide for your PTO HP and the tractor bogs down in hard ground and cut quality drops; too heavy for your 3-point hitch and the front end gets light and the hydraulics strain. Match width to PTO horsepower and check that the tiller's weight is within your rear lift rating. If you're close to the limit, step down a size or choose a lighter-duty model.

How deep will a rotary tiller till?

Most 3-point rotary tillers work roughly 4–8 inches deep depending on soil, tractor power, and how you set the skid shoes. You'll reach full depth faster in loose, worked soil; in hard clay or sod, expect to take a couple of passes, lowering the skids and letting the tiller work down gradually rather than forcing full depth on the first pass.

Related reading: Tractor & Attachment Compatibility  •  Tractor Implements Buying Guide for Small Farms & Homesteads

By the Farmer Direct Supply Team
