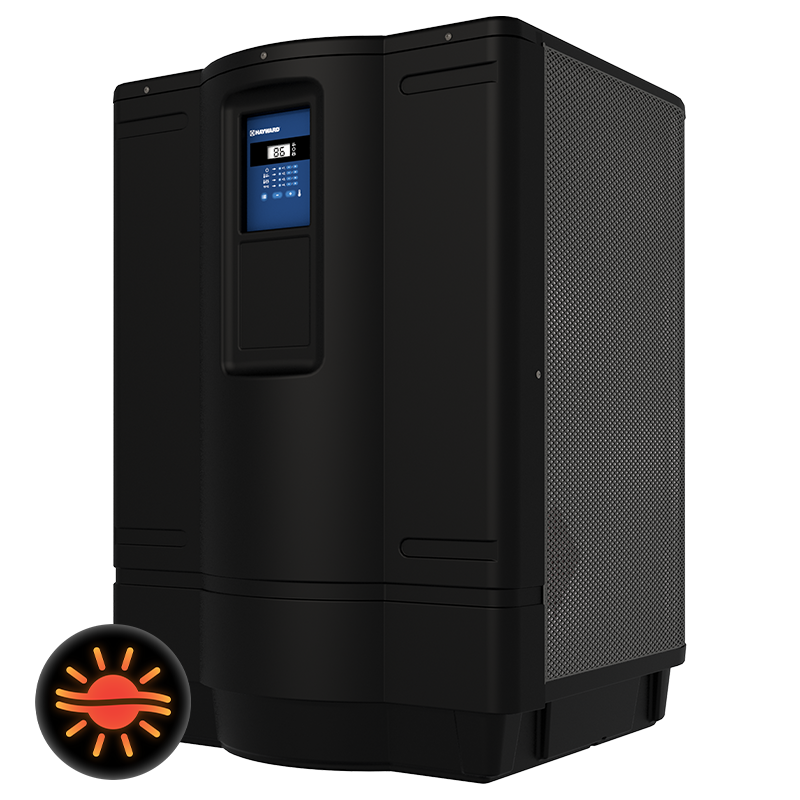

Hayward HeatPro MCHX Heat Pump 140,000 BTU — Heat Only
Hayward HeatPro MCHX Heat Pump 140,000 BTU — Heat Only
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The heat-only counterpart to Hayward's MCHX heat pump line, rated at a 5.7 max COP — the only unit in this heater/heat-pump lineup with a published coefficient of performance. Same microchannel heat exchanger and trivalent chromium coating as the heat+chill model, without the reversing valve needed for cooling.
- 140,000 BTU/hr heating only, COP up to 5.7
- Microchannel heat exchanger with trivalent chromium coating
- 230V, 1-phase, 60Hz, 50A breaker, 42.5A MCA, ~40kW draw
- Requires 60 in from pool edge unless separated by a barrier
- Omni compatible via 2-wire relay for automation integration
- 5-year parts / 2-year labor warranty
| Model | HeatPro MCHX (HP21405T) |
| GTIN | 610377424769 |
| Mode | Heat only (no cooling) |
| Heat output | 140,000 BTU/hr, COP up to 5.7 |
| Electrical | 230V, 1-ph, 60Hz, 40kW draw, 50A breaker, MCA 42.5A |
| Dimensions | 44H x 30.5W x 33.6L in |
| Shipping dimensions | 50 x 31.5 x 36 in |
| Weight | 233 lb unit / 250 lb shipping |
| Clearances | 12 in side, 12 in rear, 72 in vertical, 60 in from pool edge (unless barrier-separated) |
| Heat exchanger | Microchannel, trivalent chromium coating |
| Compressor | Single-speed |
| Min. operating temp | 40F |
| Warranty | 5 years parts / 2 years labor |
