Raypak Above Ground Pool Heater 106A
Raypak Above Ground Pool Heater 106A
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

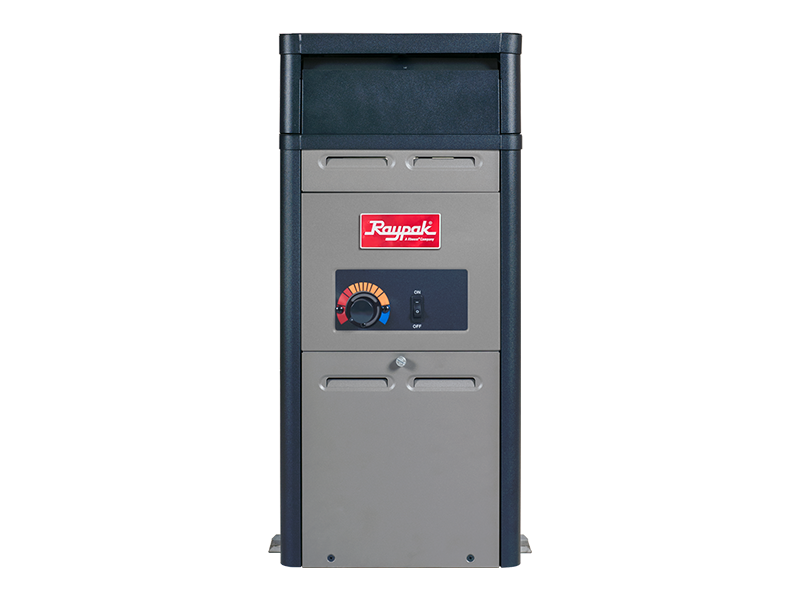

The 106A is Raypak's smaller above-ground heater, rated at 105,000 BTU with a copper fin-tube heat exchanger and stainless steel tube sheets and burners. It ships 120V standard with field conversion to 240V, uses a simple analog dial thermostat rather than a digital controller, and lights via spark-to-pilot ignition. Output derates 4% per 1,000 ft above 2,000 ft elevation, and it is not approved for Low NOx markets (California South Coast, Utah).
- 105,000 BTU output
- Copper fin-tube heat exchanger with stainless steel tube sheets and burners
- Analog dial thermostat, spark-to-pilot ignition
- 120V standard, field-convertible to 240V; 4A@120V / 2A@240V
- 1/2 in NPT gas connection, 2 in water connection, 6 in flue
- CA Title 24 compliant; not approved for Low NOx markets (CA South Coast, UT); derates 4% per 1,000 ft above 2,000 ft elevation
| Model | Above Ground 106A |

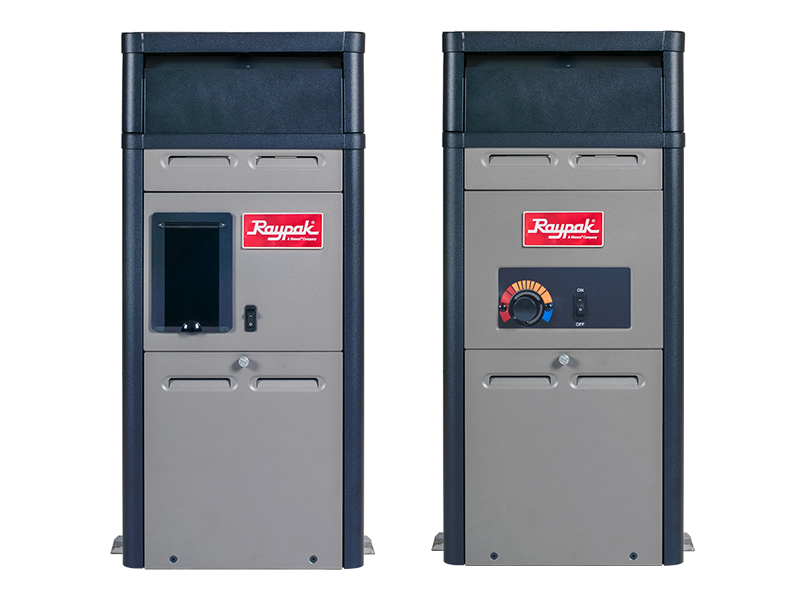

| MPN | R106A (P-R106A-EN / EP, digital or analog variants) |
| BTU output | 105,000 |
| Depth | 24 in |
| Flue | 6 in |
| Indoor drafthood height | 55-1/2 in |
| Ship weight | 85 lb (stackless); 15 lb (drafthood add-on) |
| Electrical | 120V standard, 240V field-convertible, 4A@120V / 2A@240V |
| Gas / water connection | 1/2 in NPT gas, 2 in water |
| Heat exchanger | Copper fin tube, stainless steel tube sheets and burners |
| Thermostat | Analog dial |
| Certifications | CA Title 24 (not for Low NOx markets: CA South Coast, UT) |
| Elevation derate | 4% per 1,000 ft above 2,000 ft |
