Raypak

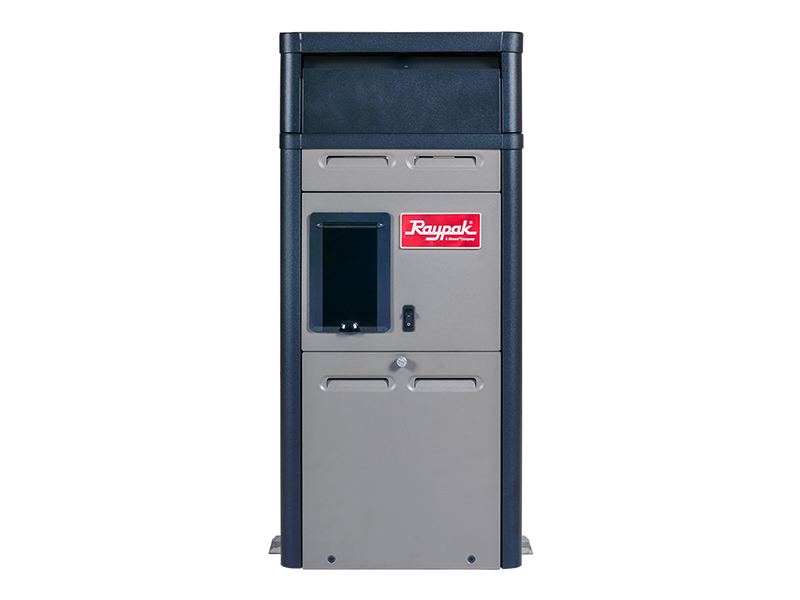

Raypak Above Ground Pool Heater 156A
Raypak Above Ground Pool Heater 156A
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

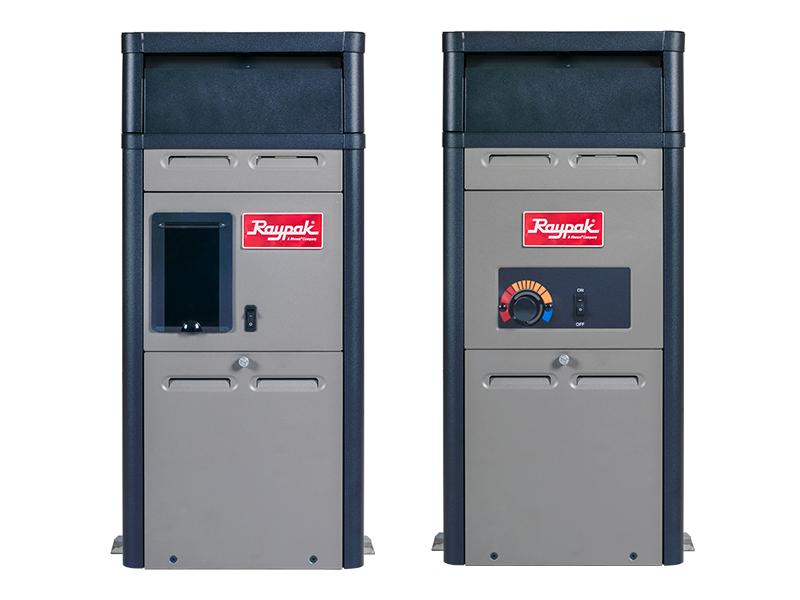

The 156A steps up from the 106A to 150,000 BTU in a slightly deeper 27 in cabinet, and swaps the analog dial for a digital microprocessor thermostat that supports remote control — the main functional difference between the two above-ground models. It shares the 106A's copper fin-tube heat exchanger, 120V standard/240V-convertible electrical, and the same Low NOx market restriction and elevation derate.
- 150,000 BTU output
- Digital microprocessor thermostat with remote-control compatibility (vs. 106A's analog dial)
- Copper fin-tube heat exchanger
- 120V standard, field-convertible to 240V; 4A@120V / 2A@240V
- 27 in cabinet depth, 6 in flue
- CA Title 24 compliant; not approved for Low NOx markets (CA South Coast, UT); same elevation derate as 106A
| Model | Above Ground 156A |
| MPN | R156A |
| BTU output | 150,000 |
| Depth | 27 in |
| Flue | 6 in |
| Ship weight | 100 lb (stackless); 15 lb (drafthood add-on) |
| Electrical | 120V standard, 240V field-convertible, 4A@120V / 2A@240V |
| Heat exchanger | Copper fin tube |
| Thermostat | Digital microprocessor, remote-compatible |
| Certifications | CA Title 24 (not for Low NOx markets: CA South Coast, UT) |
| Elevation derate | 4% per 1,000 ft above 2,000 ft (same as 106A) |
