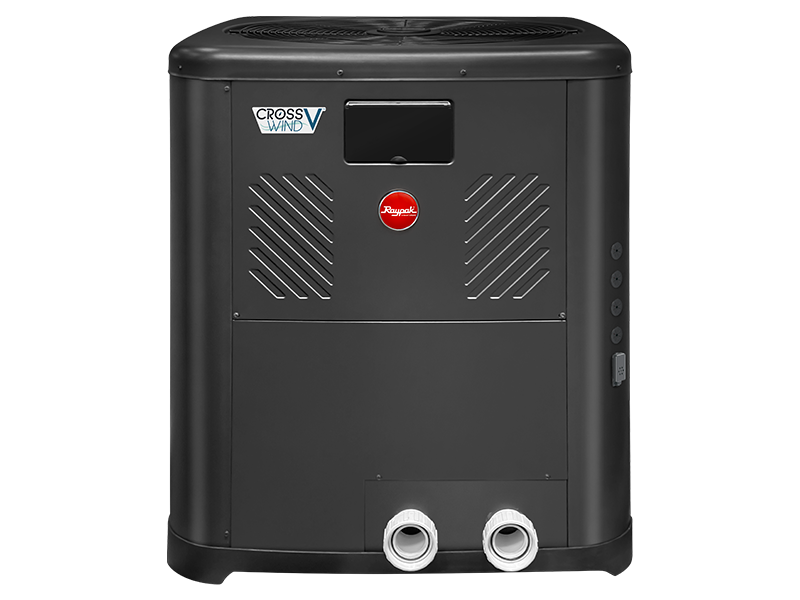

Raypak Crosswind V Heat Pump — Standard

Crosswind V Standard covers four output tiers in one cabinet size, from 85,000 to 138,000 BTU, so the same footprint scales across small to large pools. COP ratings run 5.8 to 6.1 across the range, meaning the unit moves roughly six units of heat into the water for every unit of electricity it consumes. A titanium heat exchanger carries a 10-year warranty on its own, well beyond the 2-year labor and 7-year parts coverage on the rest of the unit.

• Four BTU tiers: 85,000 (COP 5.8), 102,000 (COP 6.1), 118,000 (COP 6.1), 138,000 (COP 6.0)
• Titanium heat exchanger backed by a 10-year warranty (2-yr labor, 7-yr parts on the unit)
• R-410A refrigerant, max water flow 60 GPM through 2 in PVC
• 208-230VAC single-phase, 38-46A minimum circuit ampacity, 50-60A breaker (size-dependent)
• Raymote WiFi app control
• 64 dBA noise rating; AHRI 1160 tested, CA Title 24 compliant
