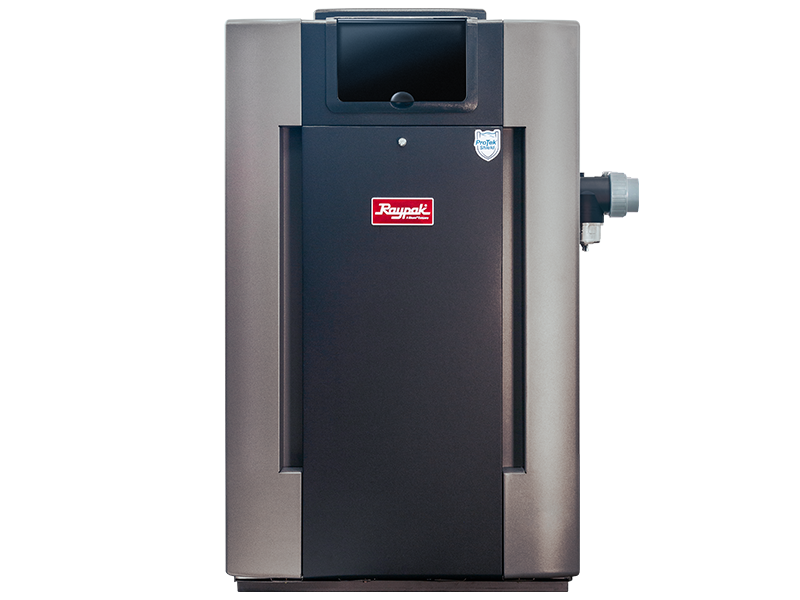

Raypak Digital Gas Heater — Residential

The Digital Gas Residential line spans four BTU sizes in two heat exchanger materials: copper models run 199,500 to 399,000 BTU, while cupro-nickel versions of the same four sizes are rated slightly lower, from 180,000 to 360,000 BTU, trading peak output for corrosion resistance. All eight configurations hold 82% thermal efficiency and share a 120/240VAC electrical platform, differing mainly in cabinet width (20 to 29 in) to match BTU size.

• Four sizes x two HX materials: copper 199,500-399,000 BTU, cupro-nickel 180,000-360,000 BTU
• 82% thermal efficiency across all eight configurations
• Cabinet height 38 in indoor / 40 in outdoor, depth 32-11/16 in, width 20-29 in by model
• 120/240VAC single-phase, 4A@120V / 2A@240V
• 3/4 in NPT gas connection, 2 in slip water connection, 6-9 in flue by model
• ANSI Z21.56 certified, CA Title 24 compliant, ProTek Shield module
