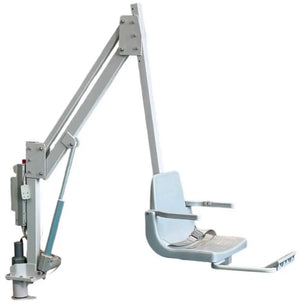

Global Pool Products R-450R reach ADA pool lift – front three-quarter view

Global Pool Products R-450R rotational pool lift dimension drawing

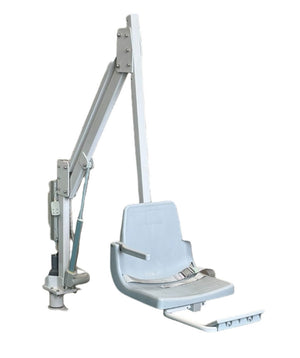

Global Pool Products R-450R reach pool lift – studio view

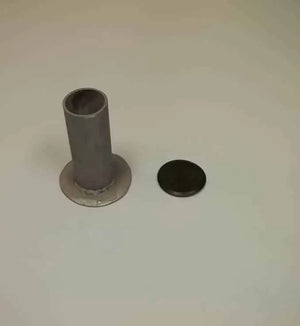

Global Pool Products R-450R pool lift round sleeve anchor

Global Pool Products Rotational Series R-450R Reach ADA Pool Lift, 450 lb Capacity, 360 Degree Rotation

Name: Global Pool Products Rotational Series R-450R Reach ADA Pool Lift, 450 lb Capacity, 360 Degree Rotation
Brand: Global Pool Products
SKU: R450RNA
Price: 8649.0 USD
Availability: InStock

R450RNA

$8,649.00 - $8,949.00

Save $259.47 on this order paying by wire

ㅤ

Talk to a real person

Key Specs

450 lb reach ADA pool lift with 360-degree rotation

Capacity: 450 lb
Power: 24V battery, charger incl.
Rotation: 360 degrees
Setback: 13-39 in.
Anchor: None or sleeve

The R-450R Reach lift pairs a 450 lb capacity with continuous 360-degree rotation for commercial pools that need extra reach from the anchor. A powder-coated 304 stainless frame and 24-volt battery controls keep it simple to operate.

Key features

450 lb lifting capacity
Continuous 360-degree rotation
304 stainless steel with multi-step powder coat finish
24-volt battery-powered system with charger and easy-to-use controls
Arm rests, foot rest and safety seat belt; marine-grade hardware
R-450 models offer a 48 in. wall clearance option
Setback range 13 to 39 in.; seat submerges up to 13 in. below deck
Ships UPS Ground

Who it's for

Commercial pools that need extra reach and a 450 lb rating Pools with wide gutters or raised edges the seat must swing over

Before you order

Confirm the anchor you need. Lifts listed without an anchor bolt to an existing compatible anchor; new installs need the matching anchor set in sound concrete.
Check deck material and thickness: Global Pool Products' anchor instructions call for solid concrete at the lift location (paver decks need a concrete pad under the lift).
The anchor must be electrically bonded to the pool bonding grid per the NEC and local code; have a qualified installer handle bonding and core drilling.
For public pools, place the lift where the water is no deeper than 48 in. and keep the clear deck space the ADA standard requires.
Rotational lifts need deck space for the seat to swing; check the 13-39 in. setback range against your deck.

What's included

R-450R lift with seat, arm rests, foot rest and safety seat belt
24-volt battery and charger
Hand control
Sleeve anchor on the R450RSL variant; no anchor on R450RNA

Key Features

450 lb lifting capacity
Continuous 360-degree rotation
304 stainless steel with multi-step powder coat finish
24-volt battery-powered system with charger and easy-to-use controls
Arm rests, foot rest and safety seat belt; marine-grade hardware
R-450 models offer a 48 in. wall clearance option
Setback range 13 to 39 in.; seat submerges up to 13 in. below deck
Ships UPS Ground

Who It's For

Commercial pools that need extra reach and a 450 lb rating
Pools with wide gutters or raised edges the seat must swing over

What's Included

R-450R lift with seat, arm rests, foot rest and safety seat belt
24-volt battery and charger
Hand control
Sleeve anchor on the R450RSL variant; no anchor on R450RNA

About the Brand

Global Pool Products designs and manufactures pool lifts, slides, rails and ladders, diving boards, games and in-pool furniture in Bad Axe, Michigan, and states that its products are made in the USA. The company sells through authorized dealers rather than directly to consumers. Its lift drawings, manuals and lift videos also carry the Global Lift Corp. name.

Performance

Lifting capacity: 450 lb
Seat submersion: Up to 13 in. below deck
Rotation: 360 degrees

Installation

Setback from pool edge: 13 in. min / 39 in. max
Anchor options: No anchor (R450RNA) or sleeve anchor (R450RSL); round anchor RGLCRA
Wall clearance: 48 in. option (R-450 models)

Electrical

Power: 24-volt rechargeable battery with charger

Construction

Frame: 304 stainless steel, multi-step powder coat

Warranty

Structural: 5 years per product page (see warranty note)
Actuator & controls: 2 years, then prorated to 5 years
Battery: 1 year

Shipping

Ships via: UPS Ground

Product

Pool Type: In-ground
Application: Commercial
Warranty (years): 5
Product Line: Rotational Series
Compatible With: RGLCRA R-450 round anchor, T5068-2 TiMOTION battery, T5068-17 TiMOTION charger, RGLCPCB / RGLCPCG R-series cover

Manufacturer lists the lift as "Ships via UPS Ground" (parcel).

Global Pool Products' current Rotational Series product page and 2026 Commercial Catalog list a 5-year structural warranty for this lift, while the manufacturer's lift warranty document places Rotational Series frames under its lifetime limited frame coverage. PDS shows the 5-year figure until Global Pool Products confirms which applies. The actuator and controls are covered for 2 years from purchase, then prorated (60% in year 3, 50% in year 4, 40% in year 5), and the battery for 1 year.

Coverage is for the original end user with installation per the manufacturer's instructions; return the warranty registration card within 30 days. Claims go through the selling distributor. Exceeding the weight capacity, improper chemical use, cosmetic rust and normal wear are excluded.

: Only R450RSL includes an anchor (sleeve anchor). R450RNA ships without one.
: Global Pool Products lists a setback range of 13 to 39 in. from the pool edge, with a maximum seat submersion of 13 in. below the deck. Check your deck against the drawing in the owner's manual before ordering.
: It runs on a 24-volt rechargeable battery system with a charger included, operated by a hand control. A spare battery (T5068-2) and charging station accessories are available.
: The R-450R is rated for 450 lb. Exceeding the rated capacity voids the warranty.
: Global Pool Products lists a 5-year structural warranty on the R-450R product page (its warranty PDF lists Rotational frames as lifetime; PDS shows 5 years until confirmed). Actuator and controls 2 years then prorated through year 5, battery 1 year.
: Global Pool Products states its lifts are laboratory tested to meet ADA standards. Compliance also depends on placement: the 2010 ADA standard (1009.2) calls for water no deeper than 48 in. at the lift, the raised seat centerline at least 16 in. from the pool edge, and a 36 x 48 in. clear deck space beside the seat.
