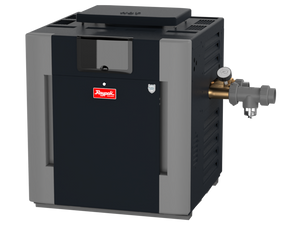

Raypak Digital Low NOx ASME 199K–399K BTU Gas Pool & Spa Heater
017705
$3,953.00 - $5,696.00
Save $197.65 on this order paying by wire
ㅤ
Key Specs
−The Low NOx, ASME-certified Digital — the model to specify where standard-NOx heaters are not permitted.
BTU/h input
199,000 – 399,000
Thermal efficiency
82%
Emissions
Low NOx
ASME certified
Yes
Max water flow
100 GPM
The Low NOx, ASME-certified Digital — the model to specify where standard-NOx heaters are not permitted.
Features
- Low NOx certified and ASME certified
- Gas valve and blower system that holds the air-fuel mixture steady
- 82% thermal efficiency
- Copper or cupro-nickel heat exchanger, chosen per variant
- ProTek Shield replaceable heat-exchanger protection module
Who it's for
- Pools in Low NOx jurisdictions
- Commercial work where both Low NOx and ASME are specified
Before you order
- Low NOx certified. Suitable for jurisdictions that require Low NOx pool and spa heaters.
- Each variant carries a Raypak unit code (#50, #51, #52, #57, #58 or #26) printed after the model. Raypak does not publish what these codes mean and we are not going to guess — confirm the correct code for your gas type and site elevation with us before you order, and we will confirm it with Raypak.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- Low NOx certified and ASME certified
- Gas valve and blower system that holds the air-fuel mixture steady
- 82% thermal efficiency
- Copper or cupro-nickel heat exchanger, chosen per variant
- ProTek Shield replaceable heat-exchanger protection module
Who It's For
- Pools in Low NOx jurisdictions
- Commercial work where both Low NOx and ASME are specified
About the Brand
Heating Performance
| BTU/h input — 207A | 199,000 |
|---|---|
| BTU/h input — 267A | 266,000 |
| BTU/h input — 337A | 332,000 |
| BTU/h input — 407A | 399,000 |
| Thermal efficiency | 82% |
| Maximum water flow | 100 GPM |
Fuel & Combustion
| Fuel | Natural gas or propane, by variant |
|---|---|
| Ignition | Electronic intermittent (IID) |
| Venting category | Category I |
Construction
| Heat exchanger | Copper or cupro-nickel fin tube, by variant |
|---|---|
| Headers | Bronze header |
| ASME certified | Yes |
Installation
| Electrical | 120/240 VAC, 1-phase, 60 Hz |
|---|---|
| Installation | Indoor or outdoor |

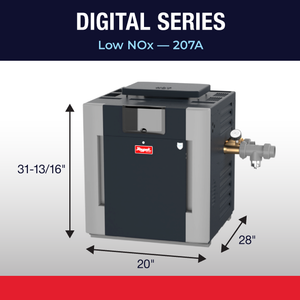

| Cabinet H x W x D — 207A | 31-13/16 in x 20 in x 28 in |

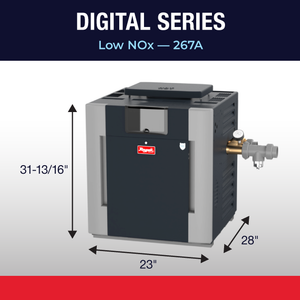

| Cabinet H x W x D — 267A | 31-13/16 in x 23 in x 28 in |

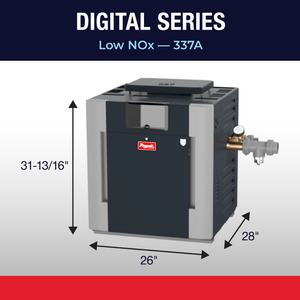

| Cabinet H x W x D — 337A | 31-13/16 in x 26 in x 28 in |

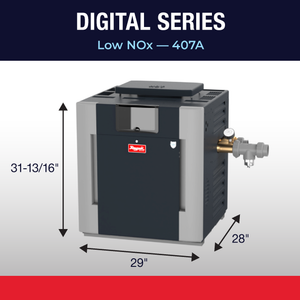

| Cabinet H x W x D — 407A | 31-13/16 in x 29 in x 28 in |
| Shipping weight — 207A | 200 lb |
| Shipping weight — 267A | 220 lb |
| Shipping weight — 337A | 240 lb |
| Shipping weight — 407A | 260 lb |
Compliance & Fit
| NOx | Low NOx certified |
|---|
