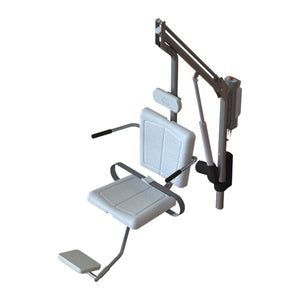

Spectrum Aquatics Motion Trek BP400 Deluxe ADA Pool Lift on white background

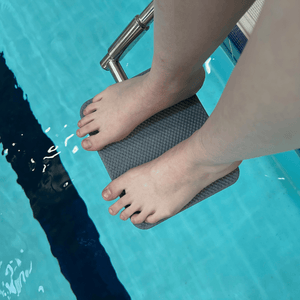

Spectrum Aquatics Motion Trek BP400 Deluxe pool lift — Deluxe headrest and paddle footrest

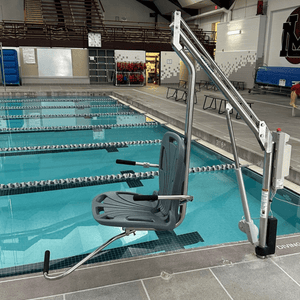

Spectrum Aquatics Motion Trek BP400 Deluxe pool lift — ergonomic seat on pool deck

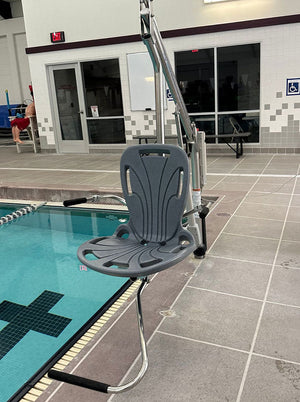

Spectrum Aquatics Motion Trek BP400 Deluxe pool lift — installed at pool edge

Spectrum Aquatics Motion Trek BP400 Deluxe ADA Pool Lift, 400 lb, With Anchor – 163145-DLX

Name: Spectrum Aquatics Motion Trek BP400 Deluxe ADA Pool Lift, 400 lb, With Anchor – 163145-DLX
Brand: Spectrum Aquatics
SKU: 163145DLX
Price: 7880.0 USD
Availability: InStock

163145DLX

$7,880.00

Save $236.40 on this order paying by wire

ㅤ

Talk to a real person

Key Specs

400 lb ADA pool lift with headrest, paddle footrest and deck anchor, UL Listed

Lift capacity: 400 lb
Setback: 6" to 28"
Water draft: Up to 13"
Lifts per charge: 90
Certification: UL Listed

The Spectrum Aquatics Motion Trek BP400 Deluxe raises the lifting capacity to 400 lb for facilities that serve a wider range of swimmers. This with-anchor package adds a padded headrest and paddle-style footrest for extra support during transfers.

Key features

400 lb capacity, UL Listed
About 90 lifts per battery charge
360-degree powered rotation
Electropolished 304L stainless steel with Spectra Shield
Deck anchor included

Who it is for

Municipal aquatic centers, water parks, universities, rehabilitation facilities, YMCAs and hotels that need a higher-capacity ADA lift.

Before you order

Confirm the anchor type your deck needs (new-pour composite anchor, wood deck anchor, surface mount anchor or retrofit) and whether you are ordering the lift with or without an anchor.
Confirm deck material and measure the setback from the pool wall to the anchor centerline and the water draft; check them against the ranges in the spec table.
Check your local ADA requirements: ADA guidance calls for a clear deck space of 36" x 48" beside the lift seat.
Anchors in concrete must be bonded to the pool bonding grid and the concrete must cure at least 7 days before use (per the Spectrum owner manual).

What is included

Motion Trek BP400 Deluxe lift with headrest and footrest
Deck anchor
Battery, charger and wired handset

Key Features

400 lb operating load capacity
UL Listed
Padded headrest and paddle-style footrest (Deluxe)
90 lifts per battery charge
360-degree continuous powered rotation
Electropolished 304L stainless steel with Spectra Shield coating
Fits 6" to 28" setbacks with water draft up to 13"

Who It's For

Municipal aquatic centers, water parks and universities
Rehabilitation facilities, YMCAs and hotels
Pools that need a 400 lb rated ADA lift

What's Included

Motion Trek BP400 Deluxe lift
Deck anchor
24 VDC battery and wall charger
Wired handset
Headrest and flip-up footrest

About the Brand

Spectrum Aquatics designs, fabricates and assembles its aquatic equipment at its own facility in Missoula, Montana. The line covers ADA pool lifts, lifeguard chairs, rails and ladders, starting platforms and other commercial deck equipment. Its stainless steel pool lifts are coated with Spectra-Shield for corrosion protection.

Performance

Lifting capacity: 400 lb
Lifts per battery charge: 90
Rotation: 360-degree continuous powered rotation
Linear actuator thrust: 10,000 N max (24 VDC)

Installation

Pool wall setback: 6" to 28"
Water draft: Up to 13"
Wall transfer height: 10" (without footrest)

Power

Battery: 24 VDC rechargeable, charger included

Controls

Handset: Wired handset, IP67, emergency stop

Construction

Material: Electropolished 304L stainless steel with Spectra Shield coating

Deluxe package

Adds: Padded headrest and paddle-style flip-up footrest

Included

Anchor: Yes (with-anchor model 163145-DLX)

General

Pool type: In-ground, Above-ground, Spa
Application: Commercial
Certifications: UL
Product line: Motion Trek

Warranty

Warranty: 5-year structural; 2-year electronics

Compatibility

Compatible with: 28510 Composite Anchor; 28515-00 Wood Deck Anchor; 75521 Surface Mount Anchor; 47949 Lift Cover; 42848 Heavy Duty Cart; 153607 Battery; 173415 Control Box with Battery; 153600 Actuator; 173424 Rotational Motor Assembly; 173410 Anchor Bearing Assembly

Spectrum Aquatics covers all of its pool lifts with a 5-year structural warranty, and battery-powered models carry a 2-year warranty on electronics. Register the lift with the serial number on its shaft through Spectrum's warranty registration page. Spectrum's standard warranty excludes transit damage, normal wear, chemical damage, misuse, improper installation, lack of maintenance, corrosion of metallic parts and labor to remove or install equipment.

: It is rated for a 400 lb operating load.
: Yes. Part 163145-DLX is the with-anchor version; 163371-DLX is the version without an anchor.
: A padded headrest and a paddle-style footrest.
: Yes. Spectrum lists the Motion Trek BP400 Deluxe as UL Listed.
: Spectrum states a 5-year structural warranty on all of its pool lifts and a 2-year warranty on electronics for battery-powered models. Register the lift with the serial number on its shaft.
