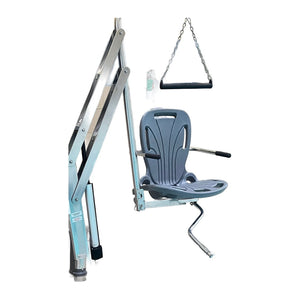

Spectrum Aquatics Traveler BP500 ADA Pool Lift on white background

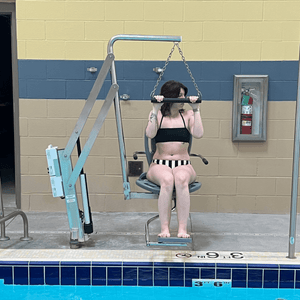

Spectrum Aquatics Traveler BP500 pool lift — lift with ergonomic seat

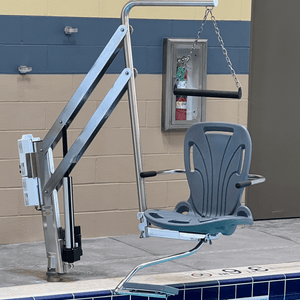

Spectrum Aquatics Traveler BP500 pool lift — side view

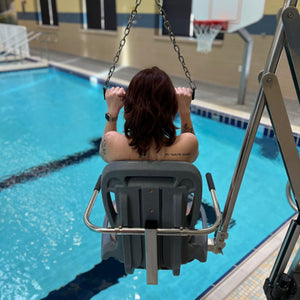

Spectrum Aquatics Traveler BP500 pool lift — installed at a pool

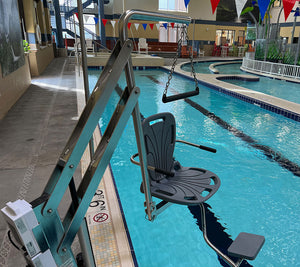

Spectrum Aquatics Traveler BP500 pool lift — lift over pool water

Spectrum Aquatics

Spectrum Aquatics Traveler BP500 ADA Pool Lift, 500 lb Capacity, Without Anchor – 163330

Name: Spectrum Aquatics Traveler BP500 ADA Pool Lift, 500 lb Capacity, Without Anchor – 163330
Brand: Spectrum Aquatics
SKU: 27610
Price: 11879.02 USD
Availability: InStock

27610

$11,879.02

Save $356.37 on this order paying by wire

ㅤ

Talk to a real person

Key Specs

500 lb UL Listed ADA pool lift with wireless remotes and 6"-33" setback range

Lift capacity: 500 lb
Setback: 6" to 33"
Water draft: Up to 12"
Lifts per charge: 90
Certification: UL Listed

The Spectrum Aquatics Traveler BP500 is a 500 lb capacity, battery-powered ADA pool lift for high-use commercial pools. It is UL Listed and runs on two watertight wireless remotes with 360-degree powered rotation.

Key features

500 lb capacity, UL Listed
6" to 33" setback, water draft up to 12"
About 90 lifts per charge
Two watertight wireless remotes
Headrest, swing-out footrest and flip-up armrests

Who it is for

Large municipal aquatic centers, universities, rehabilitation and therapy pools, hospitals and YMCAs that need maximum lifting capacity.

Before you order

Confirm the anchor type your deck needs (new-pour composite anchor, wood deck anchor, surface mount anchor or retrofit) and whether you are ordering the lift with or without an anchor.
Confirm deck material and measure the setback from the pool wall to the anchor centerline and the water draft; check them against the ranges in the spec table.
Check your local ADA requirements: ADA guidance calls for a clear deck space of 36" x 48" beside the lift seat.
Anchors in concrete must be bonded to the pool bonding grid and the concrete must cure at least 7 days before use (per the Spectrum owner manual).

What is included

Traveler BP500 lift (anchor sold separately)
Battery, charger and 2 wireless remotes
Headrest, footrest, armrests and seatbelt

Key Features

500 lb lifting capacity
UL Listed
90 lifts per battery charge
360-degree continuous powered rotation
Accommodates 6" to 33" setback and water draft up to 12"
Two watertight wireless remote controls
Adjustable swing-out footrest, flip-up armrests and padded headrest
Electropolished 304L stainless steel with Spectra Shield

Who It's For

Large municipal and university aquatic centers
Rehabilitation facilities, hospitals and therapy pools
Facilities that need a 500 lb rated lift

What's Included

Traveler BP500 lift (no anchor)
Stabilizer bar for transfer
24 volt battery and charger
2 watertight wireless remote controls
Swing-out footrest, flip-up armrests, padded headrest and seatbelt

About the Brand

Spectrum Aquatics designs, fabricates and assembles its aquatic equipment at its own facility in Missoula, Montana. The line covers ADA pool lifts, lifeguard chairs, rails and ladders, starting platforms and other commercial deck equipment. Its stainless steel pool lifts are coated with Spectra-Shield for corrosion protection.

Performance

Lifting capacity: 500 lb
Lifts per battery charge: 90
Rotation: 360-degree continuous powered rotation

Installation

Setback: 6" to 33" (anchor centerline)
Water draft: Up to 12"
Anchor: Single 1.9" I.D. anchor (sold separately, kit 23638-00)

Power

Battery: 24 V battery and charger

Controls

Remotes: 2 watertight wireless remote controls

Construction

Material: 304L electropolished stainless steel, Spectra Shield; 316L option 140290

Comfort

Seat: Padded headrest, swing-out footrest, flip-up armrests, seatbelt

General

Application: Commercial
Certifications: UL
Product line: Traveler

Warranty

Warranty: 5-year structural; 2-year electronics

Compatibility

Accessories: 23638-00 anchor kit, 54523 cart, 42323 spine board, 42932 wheelchair attachment, 54377 cover

Spectrum Aquatics covers all of its pool lifts with a 5-year structural warranty, and battery-powered models carry a 2-year warranty on electronics. Register the lift with the serial number on its shaft through Spectrum's warranty registration page. Spectrum's standard warranty excludes transit damage, normal wear, chemical damage, misuse, improper installation, lack of maintenance, corrosion of metallic parts and labor to remove or install equipment.

: It has a 500 lb lifting capacity. Spectrum rates battery cycle life at a 350 lb load.
: No. This SKU is the lift without anchor; Spectrum's 6 inch bronze 1.9 inch anchor kit is part 23638-00.
: Spectrum lists a setback of 6 to 33 inches and water draft up to 12 inches. For setbacks up to 40 inches see the Traveler Long Reach.
: Yes, Spectrum lists it as UL Listed.
: Spectrum states a 5-year structural warranty on all of its pool lifts and a 2-year warranty on electronics for battery-powered models. Register the lift with the serial number on its shaft.
