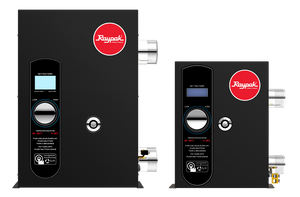

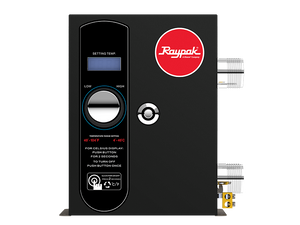

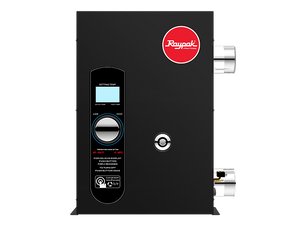

Raypak E3T 18K–92K BTU Electric Pool & Spa Heater — Titanium 240V
100-10000662
$1,038.00 - $2,999.00
Save $51.90 on this order paying by wire
ㅤ
Key Specs
−Titanium elements in 316L stainless — built to sit in salt-chlorinated water rather than tolerate it.
BTU/h
18,000 – 92,000
Thermal efficiency
100%
Elements
Titanium
Electrical
240 VAC, 1-phase
Max water flow
60 GPM
Titanium elements in 316L stainless — built to sit in salt-chlorinated water rather than tolerate it.
Features
- Titanium heating elements
- 316L marine-grade stainless steel vessel
- 100% thermal efficiency
- Solid-state design with flow-sensor technology
- Display shows set point, GPM flow and diagnostics
Who it's for
- Spas and small pools
- Salt-chlorinated water
- Sites with no gas supply
Before you order
- Some states and local jurisdictions restrict electric pool heaters unless the unit is certified to their energy-efficiency standard. Confirm your local requirement before ordering.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- Titanium heating elements
- 316L marine-grade stainless steel vessel
- 100% thermal efficiency
- Solid-state design with flow-sensor technology
- Display shows set point, GPM flow and diagnostics
Who It's For
- Spas and small pools
- Salt-chlorinated water
- Sites with no gas supply
About the Brand
Heating Performance
| BTU/h — 0005 | 18,000 |
|---|---|
| BTU/h — 0011 | 34,000 |
| BTU/h — 0018 | 61,000 |
| BTU/h — 0027 | 92,000 |
| Thermal efficiency | 100% |
| Maximum water flow | 60 GPM |
Electrical
| Supply | 240 VAC, 1-phase |
|---|---|
| Amperage — 0005 / 0011 / 0018 / 0027 | 23 A / 46 A / 75 A / 112.5 A |
Construction
| Heating elements | Titanium |
|---|---|
| Vessel | 316L stainless steel |
Controls & Safety
| Controls | Digital, with set point, GPM flow and diagnostics on the display |
|---|---|
| Flow sensing | Solid-state flow sensor |
Compliance
| Local restriction | Some jurisdictions restrict electric pool heaters unless certified to their energy-efficiency standard |
|---|
Installation
| Unit size — 0005 and 0011 | 11.75 in W x 13.54 in H x 4.72 in D |
|---|---|
| Unit size — 0018 and 0027 | 13.77 in W x 17.93 in H x 5.43 in D |
| Shipping weight | 20.8–35.1 lb by model |
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
