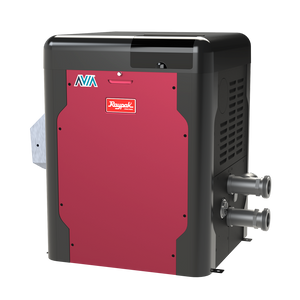

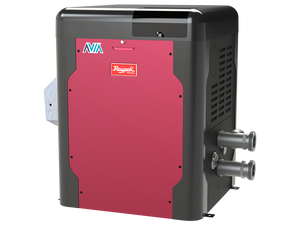

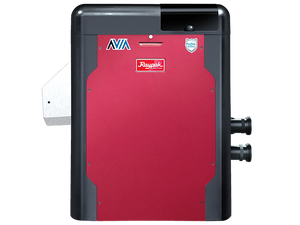

Raypak AVIA 264K–399K BTU Wi-Fi Gas Pool & Spa Heater — Copper
018032
$3,391.00 - $4,200.00
Save $169.55 on this order paying by wire
ㅤ
Key Specs
−84% thermal efficiency, Low NOx certified, Wi-Fi control through the Raymote app, and light enough for one pad and two people.
BTU/h input
264,000 / 399,000
Thermal efficiency
84%
Control
Wi-Fi, Raymote app
Emissions
Low NOx certified
Weight
Under 140 lb
84% thermal efficiency, Low NOx certified, Wi-Fi control through the Raymote app, and light enough for one pad and two people.
Features
- 84% thermal efficiency
- Low NOx certified
- Wi-Fi built in — no separate control panel needed
- Control panel rotates a full 360 degrees for install orientation
- Straight-tube heat exchanger designed for serviceability
- Under 140 lb on a 2 ft by 2 ft footprint
Who it's for
- Owners who want to run the heater from their phone
- New equipment pads where space and weight matter
- Low NOx jurisdictions
Before you order
- Low NOx certified. Suitable for jurisdictions that require Low NOx pool and spa heaters.
- Both sizes are ordered by gas type and elevation range. Check which range your site falls into before ordering.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- 84% thermal efficiency
- Low NOx certified
- Wi-Fi built in — no separate control panel needed
- Control panel rotates a full 360 degrees for install orientation
- Straight-tube heat exchanger designed for serviceability
- Under 140 lb on a 2 ft by 2 ft footprint
Who It's For
- Owners who want to run the heater from their phone
- New equipment pads where space and weight matter
- Low NOx jurisdictions
About the Brand
Heating Performance
| BTU/h input — 264A | 264,000 |
|---|---|
| BTU/h input — 404A | 399,000 |
| Thermal efficiency | 84% |
| Maximum water flow | 100 GPM |
Fuel & Combustion
| Fuel | Natural gas or propane, by variant |
|---|---|
| Venting category | Category I and III |
Construction
| Heat exchanger | Copper |
|---|---|
| Heat exchanger protection | ProTek Shield replaceable module |
Controls
| Wi-Fi | Built in; managed through the Raymote app |
|---|---|
| Control panel | Rotates 360 degrees for install orientation |
Installation
| Electrical | 120/240 VAC, 1-phase |
|---|---|
| Base footprint | 2 ft x 2 ft |
| Weight | Under 140 lb |
| Installation | Indoor or outdoor |
| Cabinet height and width | 30.38 in H x 23.24 in W |
| Gas connection | 3/4 in NPT |
| Water connections | 2 in |
| Weight — 264A | 135 lb, plus 20 lb packing |
Compliance & Fit
| NOx | Low NOx certified |
|---|
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
