Raypak Crosswind V 85K–138K BTU Pool & Spa Heat Pump
TWPH-4550EHT08
$4,100.00 - $5,200.00
Save $205.00 on this order paying by wire
ㅤ
Key Specs
−A COP as high as 6.1 on a standard equipment pad, with 2-inch connections reached through the front panel.
BTU/h
85,000 – 138,000
C.O.P.
up to 6.1
Heat exchanger
Titanium
Sound level
64 dBA
Electrical
208–230 VAC
A COP as high as 6.1 on a standard equipment pad, with 2-inch connections reached through the front panel.
Features
- C.O.P. up to 6.1
- Titanium heat exchanger
- Heat-only and heat-and-chill models

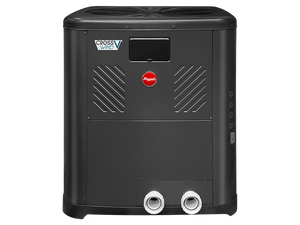

- 2 in water connections reached through the front panel
- Removable control J-box with an extended harness for servicing
- Fits a standard equipment pad
Who it's for
- Residential pools and spas on a standard equipment pad
- Owners cutting monthly heating cost
- Anyone who wants cooling as well as heating, in the EHC models
Before you order
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- C.O.P. up to 6.1
- Titanium heat exchanger
- Heat-only and heat-and-chill models
- 2 in water connections reached through the front panel
- Removable control J-box with an extended harness for servicing
- Fits a standard equipment pad
Who It's For
- Residential pools and spas on a standard equipment pad
- Owners cutting monthly heating cost
- Anyone who wants cooling as well as heating, in the EHC models
About the Brand
Heating Performance
| BTU/h — 4550EHT08 | 85,000 |
|---|---|
| BTU/h — 5550EHT08 | 102,000 |
| BTU/h — 6550EHT08 | 118,000 |
| BTU/h — 6550EHC08 | 115,000 |
| BTU/h — 8550EHT08 | 138,000 |
| BTU/h — 8550EHC08 | 137,000 |
| C.O.P. | 5.8 – 6.1 by model |
| Maximum water flow | 60 GPM |
Electrical
| Supply | 208–230 VAC |
|---|
Refrigeration & Build
| Heat exchanger | Titanium |
|---|
Modes & Controls
| Heat only models | EHT — heating |
|---|---|
| Heat and chill models | EHC — heating and cooling |

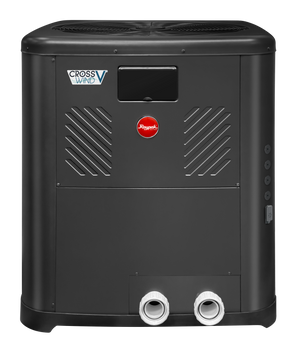

| Display | Capacitive touch with real-time diagnostics |
Installation
| Water connections | 2 in, reached through the front panel |
|---|---|
| Sound level | 64 dBA |
| Serviceability | Removable control J-box with an extended harness |
| Shipping weight | 278–358 lb by model |
| Shipping carton | 38.75 in x 38.75 in x 42.5 in |
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
