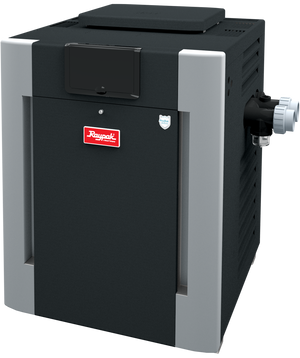

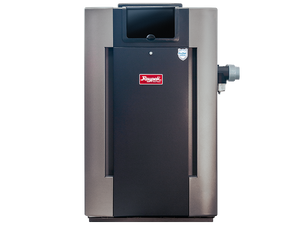

Raypak Digital 199K–399K BTU Gas Pool & Spa Heater — Copper
009216
$2,838.00 - $4,200.00
Save $141.90 on this order paying by wire
ㅤ
Key Specs
−82% thermal efficiency across four sizes, with a copper fin tube heat exchanger and Raypak's ProTek Shield module.
BTU/h input
199,000 – 399,000
Thermal efficiency
82%
Max water flow
100 GPM
Heat exchanger
Copper fin tube
Electrical
120/240 VAC, 1-phase
82% thermal efficiency across four sizes, with a copper fin tube heat exchanger and Raypak's ProTek Shield module.
Features
- 82% thermal efficiency on every size in the range
- Copper fin tube heat exchanger
- ProTek Shield replaceable heat-exchanger protection module
- Galvanised, corrosion-resistant cabinet
- Microprocessor thermostat that ties into an existing remote system
- Four cabinet sizes from 199,000 to 399,000 BTU/h
Who it's for
- In-ground pool and spa owners replacing an older gas heater
- Installers who want one familiar cabinet across four sizes
- Pools on natural gas or propane in standard-NOx jurisdictions
Before you order
- This is a standard-NOx model. Some states, counties and air districts require Low NOx pool heaters; this unit may not be installed in those areas. Check your local code before ordering.
- Each variant carries a Raypak unit code (#50, #51, #52, #57, #58 or #26) printed after the model. Raypak does not publish what these codes mean and we are not going to guess — confirm the correct code for your gas type and site elevation with us before you order, and we will confirm it with Raypak.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- 82% thermal efficiency on every size in the range
- Copper fin tube heat exchanger
- ProTek Shield replaceable heat-exchanger protection module
- Galvanised, corrosion-resistant cabinet
- Microprocessor thermostat that ties into an existing remote system
- Four cabinet sizes from 199,000 to 399,000 BTU/h
Who It's For
- In-ground pool and spa owners replacing an older gas heater
- Installers who want one familiar cabinet across four sizes
- Pools on natural gas or propane in standard-NOx jurisdictions
About the Brand
Heating Performance
| BTU/h input — 206A | 199,000 |
|---|---|
| BTU/h input — 266A | 266,000 |
| BTU/h input — 336A | 332,000 |
| BTU/h input — 406A | 399,000 |
| Thermal efficiency | 82% |
| Maximum water flow | 100 GPM |
Fuel & Combustion
| Fuel | Natural gas or propane, by variant |
|---|---|
| Ignition | Electronic intermittent (IID) |
| Venting category | Category I |
Construction
| Heat exchanger | Copper fin tube |
|---|---|
| Headers | Polymer header |
| ASME certified | No |
Installation
| Electrical | 120/240 VAC, 1-phase, 60 Hz |
|---|---|
| Installation | Indoor or outdoor |
| Water connections | 2 in slip |
| Gas connection | 3/4 in NPT |

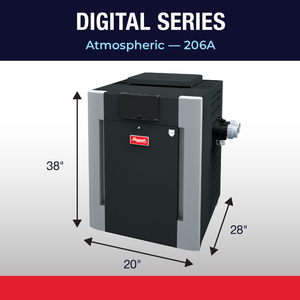

| Cabinet H x W x D — 206A | 38 in x 20 in x 28 in |
| Cabinet H x W x D — 266A | 38 in x 23 in x 28 in |
| Cabinet H x W x D — 336A | 38 in x 26 in x 28 in |
| Cabinet H x W x D — 406A | 38 in x 29 in x 28 in |
Compliance & Fit
| NOx | Standard NOx — not a Low NOx model |
|---|---|
| Unit code | Printed on each variant; see Before you order |
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
