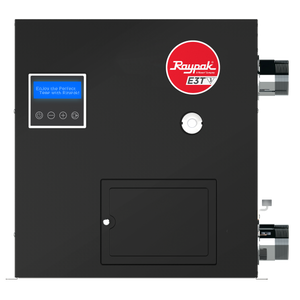

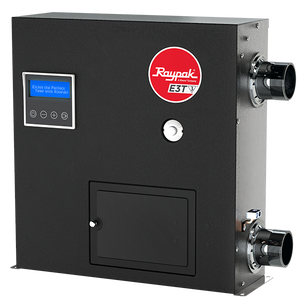

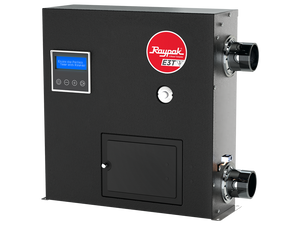

Raypak E3T 61K–184K BTU 3-Phase Electric Commercial Pool & Spa Heater
019141
$1,947.00 - $3,174.00
Save $100.95 on this order paying by wire
ㅤ
Key Specs
−Commercial three-phase electric heating with titanium elements and controls that report in words, not blink codes.
BTU/h
61,000 – 184,000
Thermal efficiency
99%
Elements
Titanium
Electrical
208 V or 480 V, 3-phase
Max water flow
60 GPM
Commercial three-phase electric heating with titanium elements and controls that report in words, not blink codes.
Features
- Titanium heating elements
- 99% thermal efficiency
- 208 V and 480 V three-phase options
- Plain-language diagnostics instead of blink codes
- Five kW classes from 61,000 to 184,000 BTU/h
Who it's for
- Commercial pools and spas
- Sites with three-phase power
- Salt-chlorinated commercial water
Before you order
- Some states and local jurisdictions restrict electric pool heaters unless the unit is certified to their energy-efficiency standard. Confirm your local requirement before ordering.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- Titanium heating elements
- 99% thermal efficiency
- 208 V and 480 V three-phase options
- Plain-language diagnostics instead of blink codes
- Five kW classes from 61,000 to 184,000 BTU/h
Who It's For
- Commercial pools and spas
- Sites with three-phase power
- Salt-chlorinated commercial water
About the Brand
Heating Performance
| BTU/h — 0018 | 61,000 |
|---|---|
| BTU/h — 0024 | 81,000 |
| BTU/h — 0030 | 101,000 |
| BTU/h — 0045 | 154,000 |
| BTU/h — 0054 | 184,000 |
| Thermal efficiency | 99% |
| Maximum water flow | 60 GPM |
Electrical
| -3 variants | 208 VAC, 3-phase |
|---|---|
| -4 variants | 480 VAC, 3-phase |
Construction
| Heating elements | Titanium |
|---|
Controls & Safety
| Controls | Digital, plain-language diagnostics |
|---|
Compliance
| Local restriction | Some jurisdictions restrict electric pool heaters unless certified to their energy-efficiency standard |
|---|
Installation
| Unit size — 0018 and 0024 | 17.7 in x 16.6 in x 5.5 in |
|---|---|
| Unit size — 0030 to 0054 | 17.7 in x 16.6 in x 8 in |
| Shipping weight | 47–69 lb by model, gross |
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
