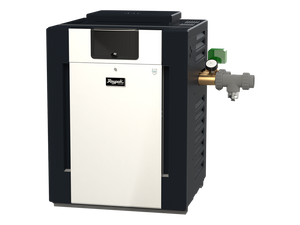

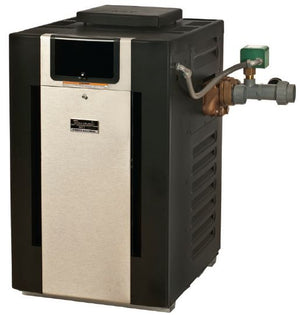

Raypak Professional 399K BTU ASME Gas Pool & Spa Heater — 408 Cupro-Nickel
013731
$7,130.00
Save $356.50 on this order paying by wire
ㅤ
Key Specs
−399,000 BTU, ASME certified, bronze headers and cupro-nickel tubes — Raypak's coastal and salt-water commercial workhorse.
BTU/h input
399,000
Thermal efficiency
82%
ASME certified
Yes
Heat exchanger
Cupro-nickel
Shipping weight
268 lb
399,000 BTU, ASME certified, bronze headers and cupro-nickel tubes — Raypak's coastal and salt-water commercial workhorse.
Features
- ASME certified with bronze headers
- Cupro-nickel fin tube heat exchanger
- 399,000 BTU/h at 82% thermal efficiency
- Built for coastal air and salt-water chemistry
- Digital controls with self-diagnostics
Who it's for
- Commercial pools on the coast
- Salt-water commercial installations
- Specs that call for ASME and cupro-nickel together
Before you order
- This is a standard-NOx model. Some states, counties and air districts require Low NOx pool heaters; this unit may not be installed in those areas. Check your local code before ordering.
- Each variant carries a Raypak unit code (#50, #51, #52, #57, #58 or #26) printed after the model. Raypak does not publish what these codes mean and we are not going to guess — confirm the correct code for your gas type and site elevation with us before you order, and we will confirm it with Raypak.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- ASME certified with bronze headers
- Cupro-nickel fin tube heat exchanger
- 399,000 BTU/h at 82% thermal efficiency
- Built for coastal air and salt-water chemistry
- Digital controls with self-diagnostics
Who It's For
- Commercial pools on the coast
- Salt-water commercial installations
- Specs that call for ASME and cupro-nickel together
About the Brand
Heating Performance
| BTU/h input | 399,000 |
|---|---|
| Thermal efficiency | 82% |
| Maximum water flow | 100 GPM |
Fuel & Combustion
| Fuel | Natural gas or propane, by variant |
|---|---|
| Ignition | Electronic intermittent (IID) |
| Venting category | Category I |
Construction
| Heat exchanger | Cupro-nickel fin tube |
|---|---|
| Headers | Bronze |
| ASME certified | Yes |

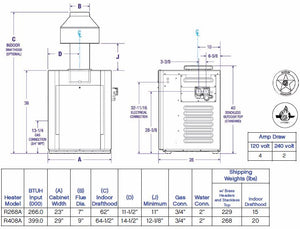

Installation
| Cabinet width | 29 in |
|---|---|
| Flue diameter | 9 in |
| Height with drafthood | 64-1/2 in |
| Shipping weight | 268 lb |
| Electrical | 120/240 V, 60 Hz, 1-phase; 240 VAC, 2 amps |
| Cabinet height and depth | 38 in H x 28 in D |
Compliance & Fit
| NOx | Standard NOx — not a Low NOx model |
|---|
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
