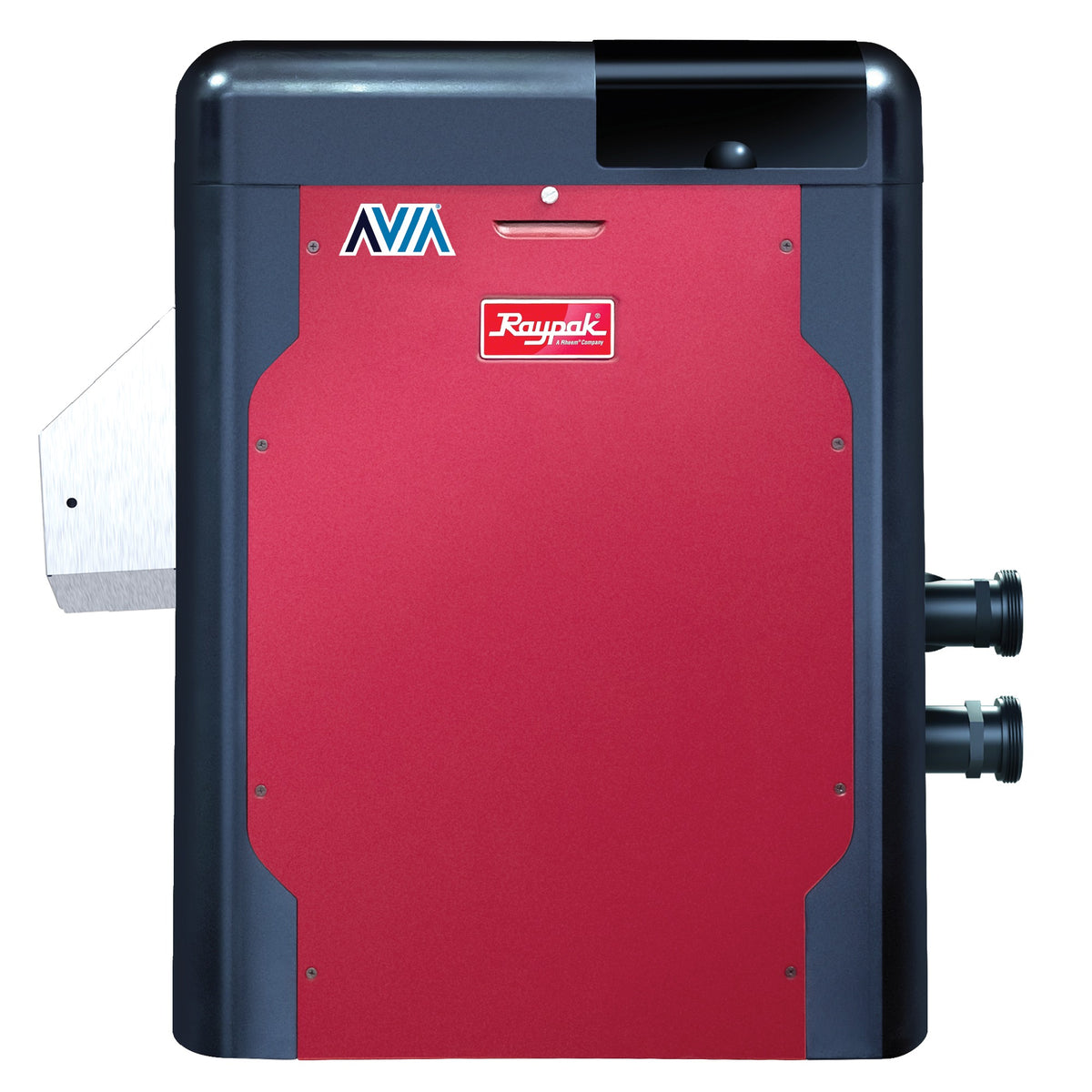

Raypak AVIA 264A / 404A Wi-Fi Natural Gas or Propane Pool & Spa Heater, Copper, Low NOx
018032
$3,391.00 - $4,200.00
Save $101.73 on this order paying by wire
ㅤ
Key Specs
84% thermal efficiency, Low NOx certified, Wi-Fi control through the Raymote app, and light enough for one pad and two people.
- BTU/h input
- 264,000 /
399,000 - Thermal efficiency
- 84%
- Control
- Wi-Fi, Raymote app
- Emissions
- Low NOx certified
- Weight
- Under 140 lb
AVIA puts the heater control on your phone. Wi-Fi is built in and the Raymote app runs the heater, so there is no separate control panel to buy. It weighs under 140 lb and sits on a 2 ft by 2 ft base, which makes it an easy fit on a standard equipment pad.
Key features
- Built-in Wi-Fi: set temperature and manage pool or spa from the Raymote app
- 84% thermal efficiency on both sizes; 264,000 or 399,000 BTU input
- Low NOx certified (SCAQMD 1146.2 and SJVAPCD Rule 4308)
- Under 140 lb with a 2 ft x 2 ft base footprint
- Top and control panel rotate 360° for more installation options

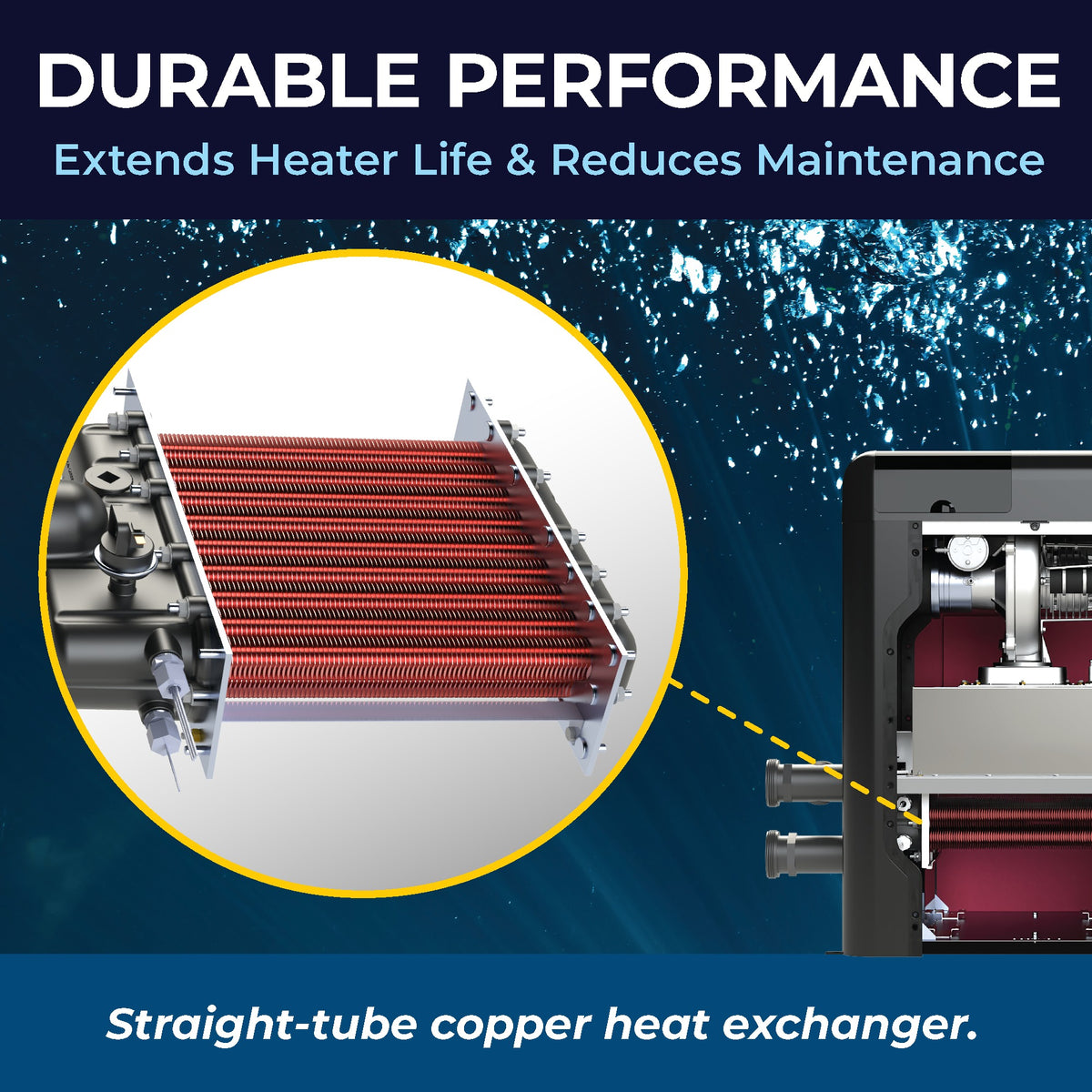

- Patented straight-tube copper heat exchanger designed for serviceability
- ProTek Shield: a replaceable module that protects the heat exchanger
Who it's for
- Owners who want to run the heater from their phone
- Equipment pads where space and weight matter
- Low NOx jurisdictions
Before you order
- Low NOx certified, suitable for jurisdictions that require Low NOx pool and spa heaters.
- Each variant is listed with its elevation range. Natural gas models are rated 0–10,000 ft; propane models 0–4,500 ft.
- Confirm your gas type. Natural gas and propane are different units and cannot be swapped after purchase.
- Requires 240 VAC (factory default) or 120 VAC, single-phase power, plus a Wi-Fi signal at the pad for app control.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Raypak residential warranty: 3 years parts and labor (1 year in commercial applications). See the Raypak warranty 100-10000378.
What's included
- Raypak AVIA gas pool and spa heater in the size and gas type you select
- 2 in Buttress unions, inlet with ProTek Shield
Key Features
- Built-in Wi-Fi: set temperature and manage pool or spa from the Raymote app
- 84% thermal efficiency on both sizes; 264,000 or 399,000 BTU input
- Low NOx certified (SCAQMD 1146.2 and SJVAPCD Rule 4308)
- Under 140 lb with a 2 ft x 2 ft base footprint
- Top and control panel rotate 360° for more installation options
- Patented straight-tube copper heat exchanger designed for serviceability
- ProTek Shield: a replaceable module that protects the heat exchanger
Who It's For
- Owners who want to run the heater from their phone
- Equipment pads where space and weight matter
- Low NOx jurisdictions
What's Included
- Raypak AVIA gas pool and spa heater in the size and gas type you select
- 2 in Buttress unions, inlet with ProTek Shield
About the Brand
Heating Performance
- BTU/h input — 264A
- 264,000
- BTU/h input — 404A
- 399,000
- Thermal efficiency
- 84%
- Maximum water flow
- 100 GPM
Fuel & Combustion
- Fuel
- Natural gas or propane, by variant
- Venting category
- Category I and III
Construction
- Heat exchanger
- Copper
- Heat exchanger protection
- ProTek Shield replaceable module
Controls
- Wi-Fi
- Built in; managed through the Raymote app

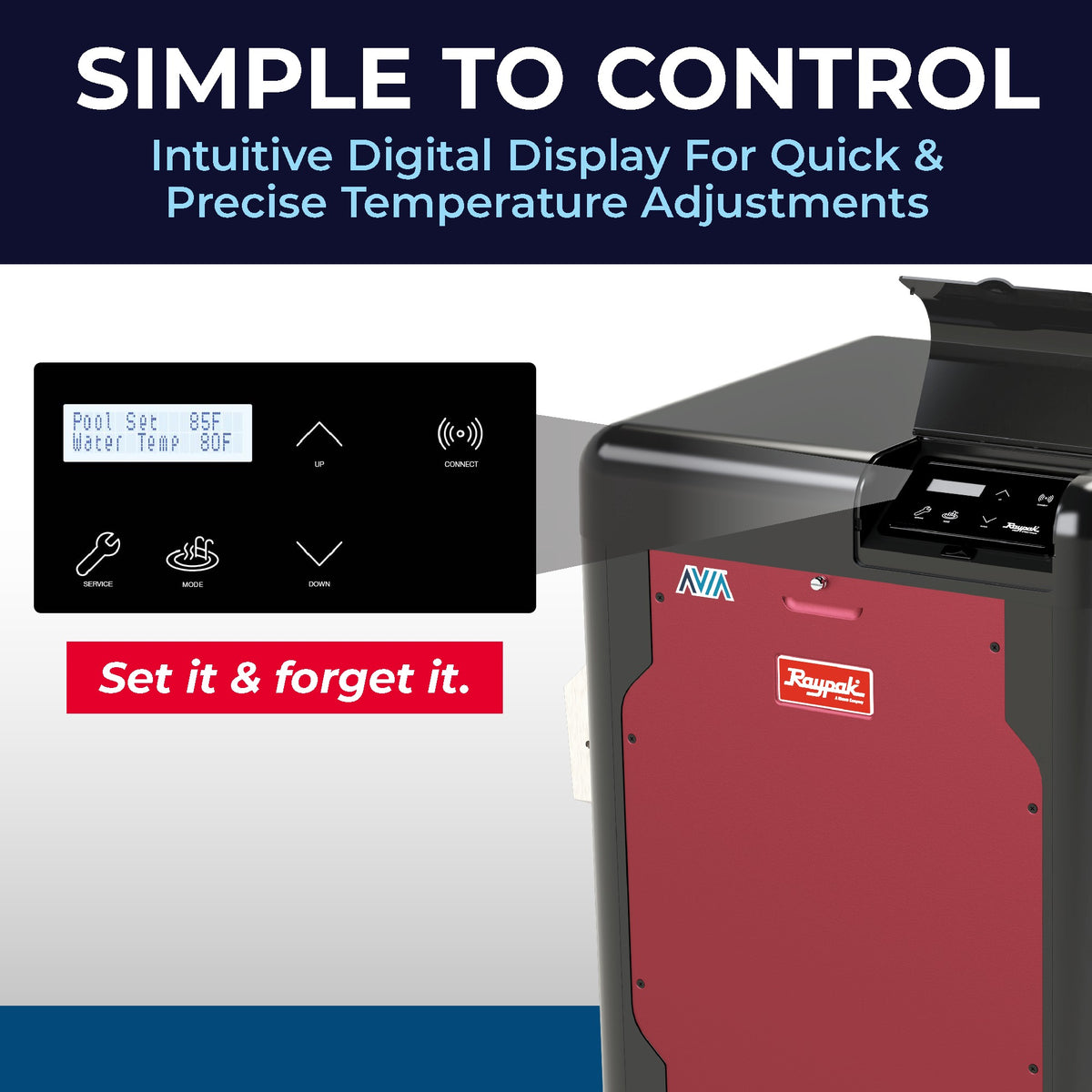

- Control panel
- Rotates 360 degrees for install orientation
Installation
- Electrical
- 120/240 VAC, 1-phase
- Base footprint
- 2 ft x 2 ft
- Weight
- Under 140 lb
- Installation
- Indoor or outdoor

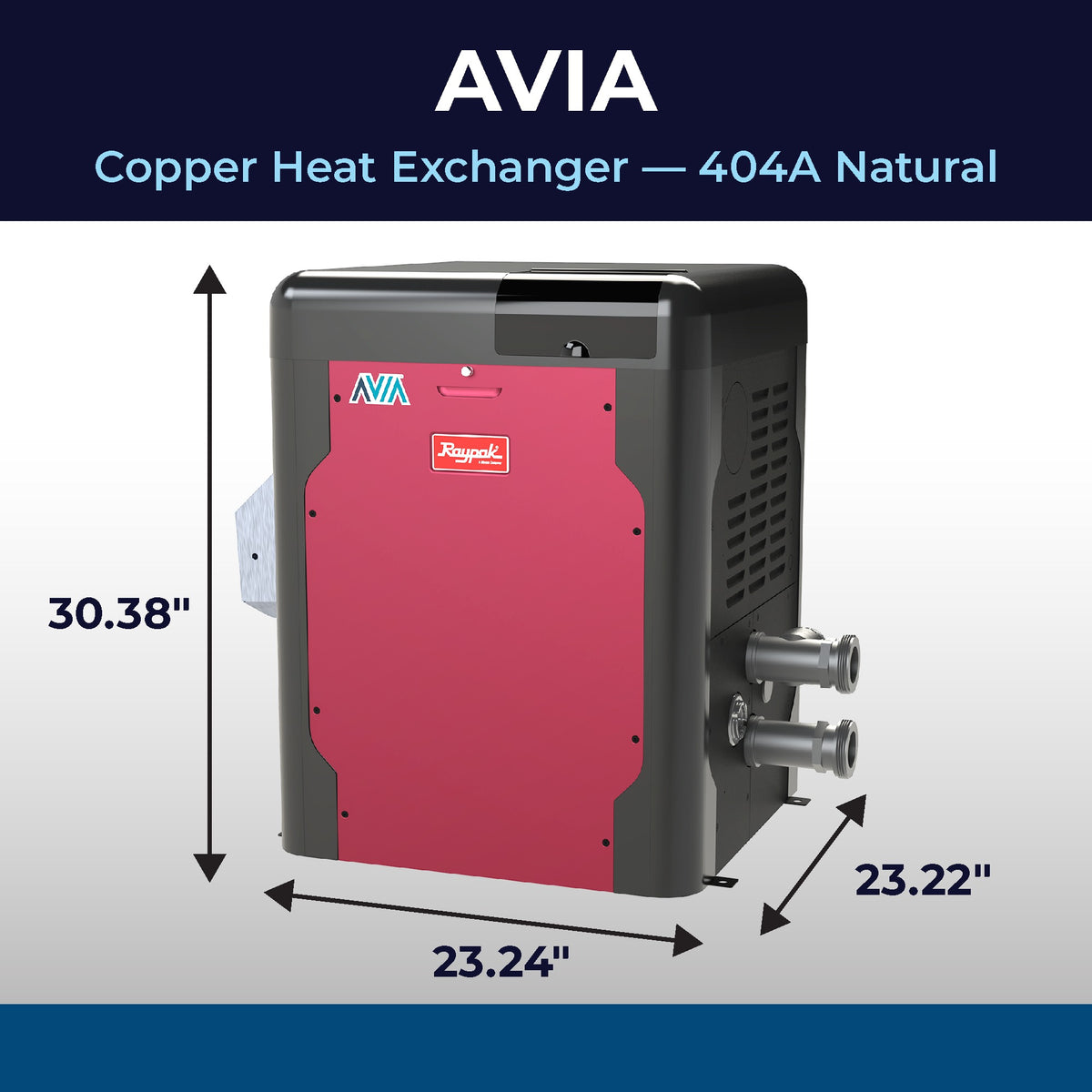

- Cabinet height and width
- 30.38 in H x 23.24 in W
- Gas connection
- 3/4 in NPT
- Water connections
- 2 in
- Weight — 264A
- 135 lb, plus 20 lb packing
Compliance & Fit
- NOx
- Low NOx certified
Compliance
- Certifications
- CSA certified; Low NOx (SCAQMD 1146.2, SJVAPCD Rule 4308)
