Raypak Digital ASME 206A / 266A / 336A / 406A Natural Gas or Propane Pool & Spa Heater, Cupro-Nickel
017399
$4,165.00 - $5,596.00
Save $124.95 on this order paying by wire
ㅤ
Key Specs
ASME certification, bronze headers and a cupro-nickel exchanger — the specification most often written for salt-water commercial work.
- BTU/h input
- 199,500 – 399,000
- Thermal efficiency
- 82%
- ASME certified
- Yes
- Heat exchanger
- Cupro-nickel fin tube
- Max water flow
- 100 GPM
ASME certification, bronze headers and a cupronickel heat exchanger: the Digital build for salt-water commercial pools. Same digital controls and low-profile galvanized cabinet as the rest of the Digital range.
Key features

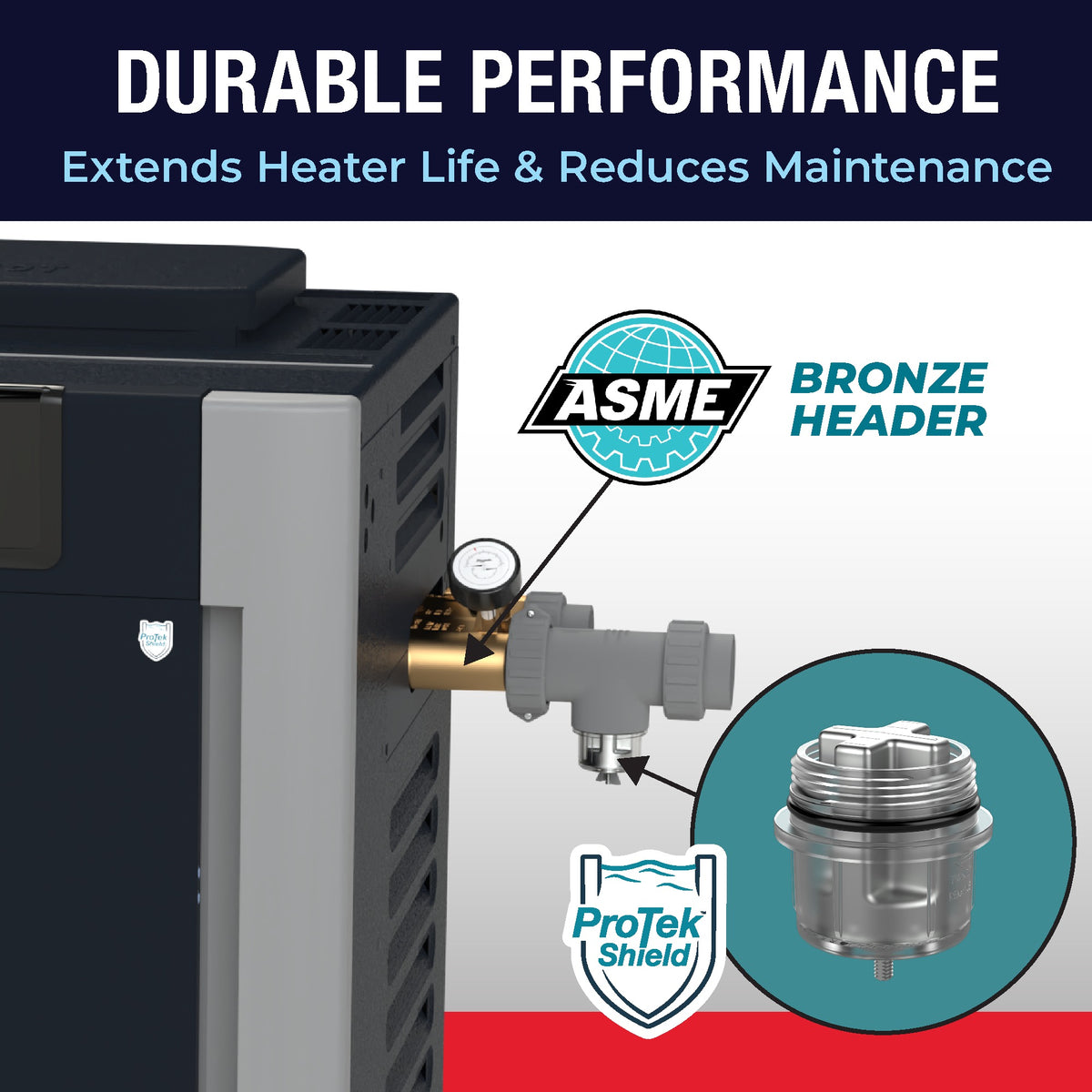

- ASME-certified heat exchanger with bronze headers

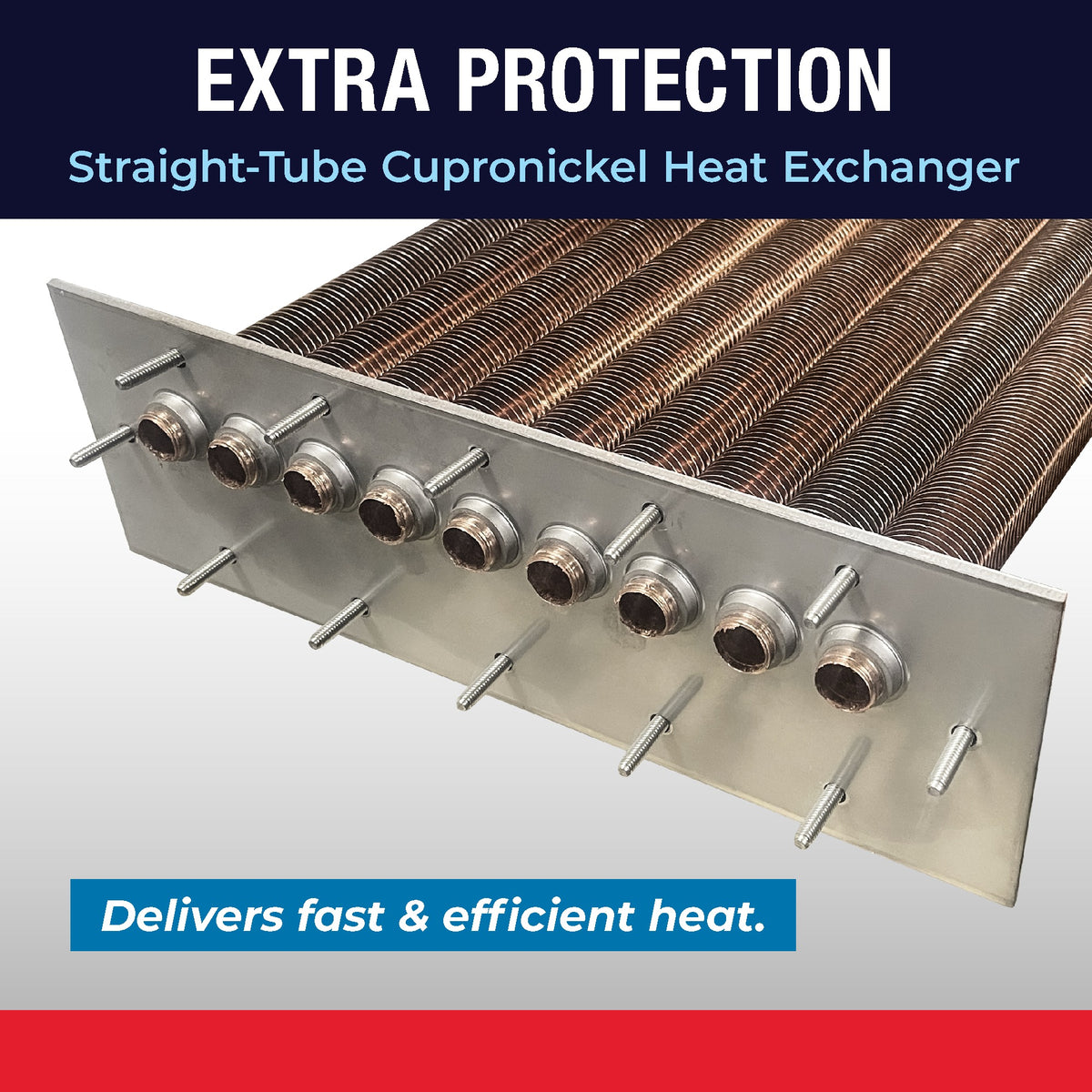

- Cupronickel fin tube heat exchanger for salt water
- 82% thermal efficiency, 199,500 to 399,000 BTU input
- ProTek Shield adapter on the inlet to protect the heat exchanger

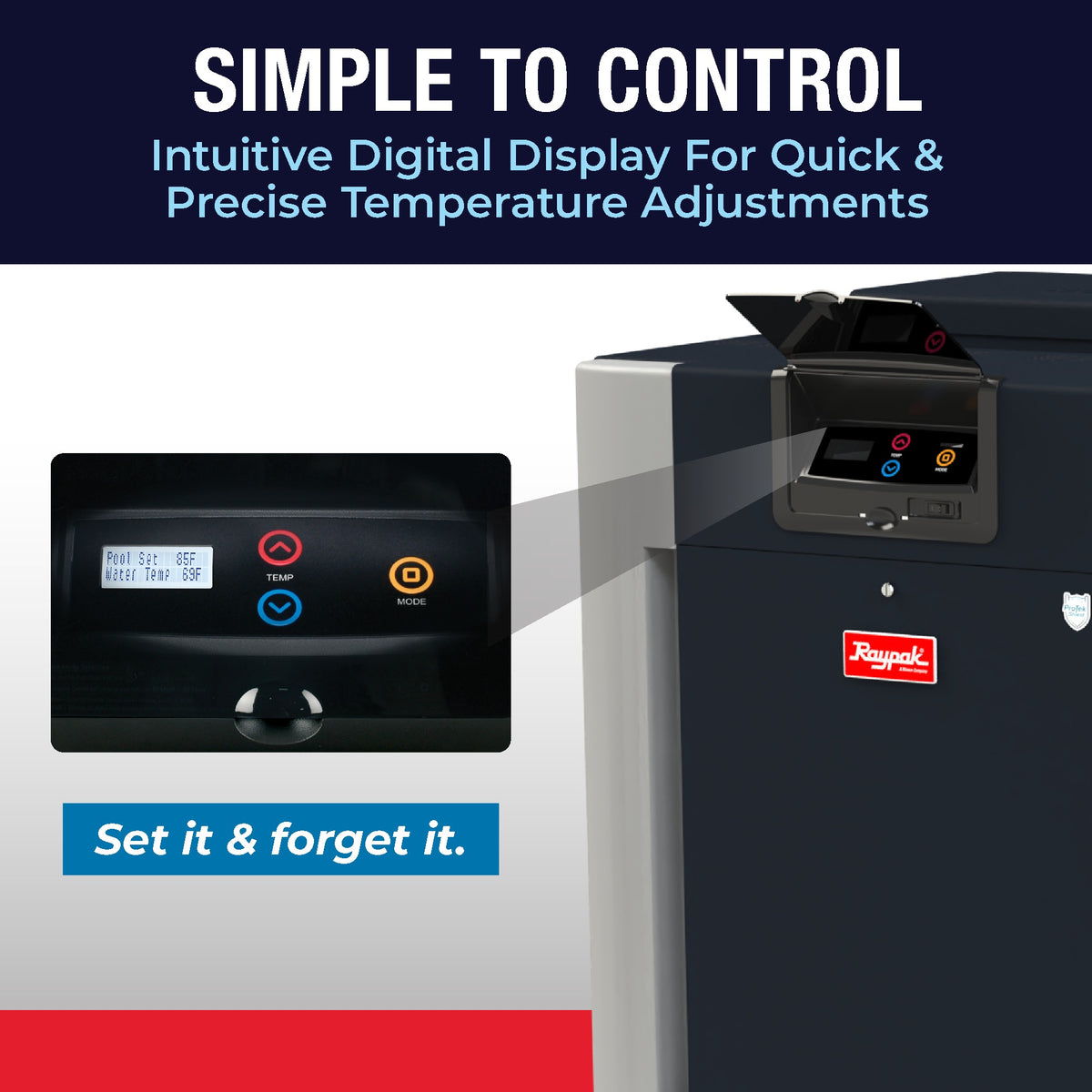

- Self-diagnostic digital controls with 2-wire or 3-wire remote capability
- Indoor or outdoor installation
Who it's for
- Commercial salt-water pools
- Coastal commercial installations where ASME is specified
Before you order
- This is a standard-NOx model. Raypak prohibits the sale of non-Low NOx heaters into regions that require Low NOx (certain states, counties and air districts). Tell us where the pool is and we will confirm before you order.
- Each variant is built for one gas type and elevation range, shown in the option name (Raypak option codes: #50 natural gas 0–1,999 ft, #51 natural gas 2,000–5,999 ft, #52 natural gas 6,000–8,999 ft, #57 propane 0–1,999 ft). Pick the range your site sits in.
- Confirm your gas type. Natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Raypak warranty: 1 year parts and labor on ASME pool and spa heaters. See the Raypak warranty 100-10000378.
What's included
- Raypak Digital ASME cupronickel gas pool and spa heater in the size, gas type and elevation range you select
- 2 in water connection union halves
Key Features
- ASME-certified heat exchanger with bronze headers
- Cupronickel fin tube heat exchanger for salt water
- 82% thermal efficiency, 199,500 to 399,000 BTU input
- ProTek Shield adapter on the inlet to protect the heat exchanger
- Self-diagnostic digital controls with 2-wire or 3-wire remote capability
- Indoor or outdoor installation
Who It's For
- Commercial salt-water pools
- Coastal commercial installations where ASME is specified
What's Included
- Raypak Digital ASME cupronickel gas pool and spa heater in the size, gas type and elevation range you select
- 2 in water connection union halves
About the Brand
Heating Performance
- BTU/h input — 206A
- 199,500
- BTU/h input — 266A
- 266,000
- BTU/h input — 336A
- 332,500
- BTU/h input — 406A
- 399,000
- Thermal efficiency
- 82%
- Maximum water flow
- 100 GPM
Fuel & Combustion
- Fuel
- Natural gas or propane, by variant
- Ignition
- Electronic intermittent (IID)
- Venting category
- Category I
Construction
- Heat exchanger
- Cupro-nickel fin tube
- Headers
- Bronze header
- ASME certified
- Yes
Installation
- Electrical
- 120/240 VAC, 1-phase, 60 Hz
- Installation
- Indoor or outdoor
- Cabinet H x W x D — 206A
- 38 in x 20 in x 28 in
- Cabinet H x W x D — 266A
- 38 in x 23 in x 28 in
- Cabinet H x W x D — 336A
- 38 in x 26 in x 28 in
- Cabinet H x W x D — 406A
- 38 in x 29 in x 28 in
- Shipping weight — 206A
- 212 lb
- Shipping weight — 266A
- 235 lb
- Shipping weight — 336A
- 250 lb
- Shipping weight — 406A
- 269 lb
Compliance & Fit
- NOx
- Standard NOx — not a Low NOx model
