Raypak Digital ASME 199K–399K BTU Gas Pool & Spa Heater — Copper
017371
$3,573.00 - $5,002.00
Save $178.65 on this order paying by wire
ㅤ
Key Specs
−ASME-certified build with bronze headers — the version specified when code or an inspector calls for it.
BTU/h input
199,000 – 399,000
Thermal efficiency
82%
ASME certified
Yes
Heat exchanger
Copper fin tube
Max water flow
100 GPM
ASME-certified build with bronze headers — the version specified when code or an inspector calls for it.
Features
- ASME certified with bronze headers
- 82% thermal efficiency
- Copper fin tube heat exchanger
- Galvanised, corrosion-resistant cabinet
- Digital controls with self-diagnostics
Who it's for
- Commercial and semi-public pools where ASME is specified
- Jurisdictions or inspectors that require an ASME-certified heater
Before you order
- This is a standard-NOx model. Some states, counties and air districts require Low NOx pool heaters; this unit may not be installed in those areas. Check your local code before ordering.
- Each variant carries a Raypak unit code (#50, #51, #52, #57, #58 or #26) printed after the model. Raypak does not publish what these codes mean and we are not going to guess — confirm the correct code for your gas type and site elevation with us before you order, and we will confirm it with Raypak.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- ASME certified with bronze headers
- 82% thermal efficiency
- Copper fin tube heat exchanger
- Galvanised, corrosion-resistant cabinet
- Digital controls with self-diagnostics
Who It's For
- Commercial and semi-public pools where ASME is specified
- Jurisdictions or inspectors that require an ASME-certified heater
About the Brand
Heating Performance
| BTU/h input — 206A | 199,000 |
|---|---|
| BTU/h input — 266A | 266,000 |
| BTU/h input — 336A | 332,000 |
| BTU/h input — 406A | 399,000 |
| Thermal efficiency | 82% |
| Maximum water flow | 100 GPM |
Fuel & Combustion
| Fuel | Natural gas or propane, by variant |
|---|---|
| Ignition | Electronic intermittent (IID) |
| Venting category | Category I |
Construction
| Heat exchanger | Copper fin tube |
|---|---|
| Headers | Bronze header |
| ASME certified | Yes |
Installation
| Electrical | 120/240 VAC, 1-phase, 60 Hz |
|---|---|
| Installation | Indoor or outdoor |
| Cabinet H x W x D — 206A | 38 in x 20 in x 28 in |
| Cabinet H x W x D — 266A | 38 in x 23 in x 28 in |
| Cabinet H x W x D — 336A | 38 in x 26 in x 28 in |

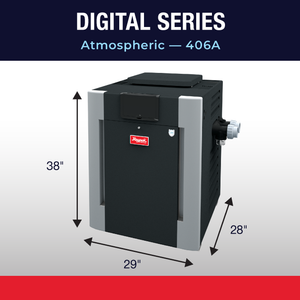

| Cabinet H x W x D — 406A | 38 in x 29 in x 28 in |
| Shipping weight — 206A | 212 lb |
| Shipping weight — 266A | 235 lb |
| Shipping weight — 336A | 250 lb |
| Shipping weight — 406A | 269 lb |
Compliance & Fit
| NOx | Standard NOx — not a Low NOx model |
|---|
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
