Raypak Digital 206A / 266A / 336A / 406A Natural Gas or Propane Pool & Spa Heater, Copper
009216
$2,838.00 - $4,200.00
Save $85.14 on this order paying by wire
ㅤ
Key Specs
82% thermal efficiency across four sizes, with a copper fin tube heat exchanger and Raypak's ProTek Shield module.
- BTU/h input
- 199,500 – 399,000
- Thermal efficiency
- 82%
- Max water flow
- 100 GPM
- Heat exchanger
- Copper fin tube
- Electrical
- 120/
240 VAC, 1-phase
Raypak's Digital heater keeps a pool or spa at the exact temperature you set, in a low-profile galvanized cabinet built to sit outside year-round. Four sizes from 199,500 to 399,000 BTU input share one control and one footprint style, so replacing an older heater is straightforward.
Key features
- 82% thermal efficiency on every size
- Copper fin tube heat exchanger in a straight-tube design

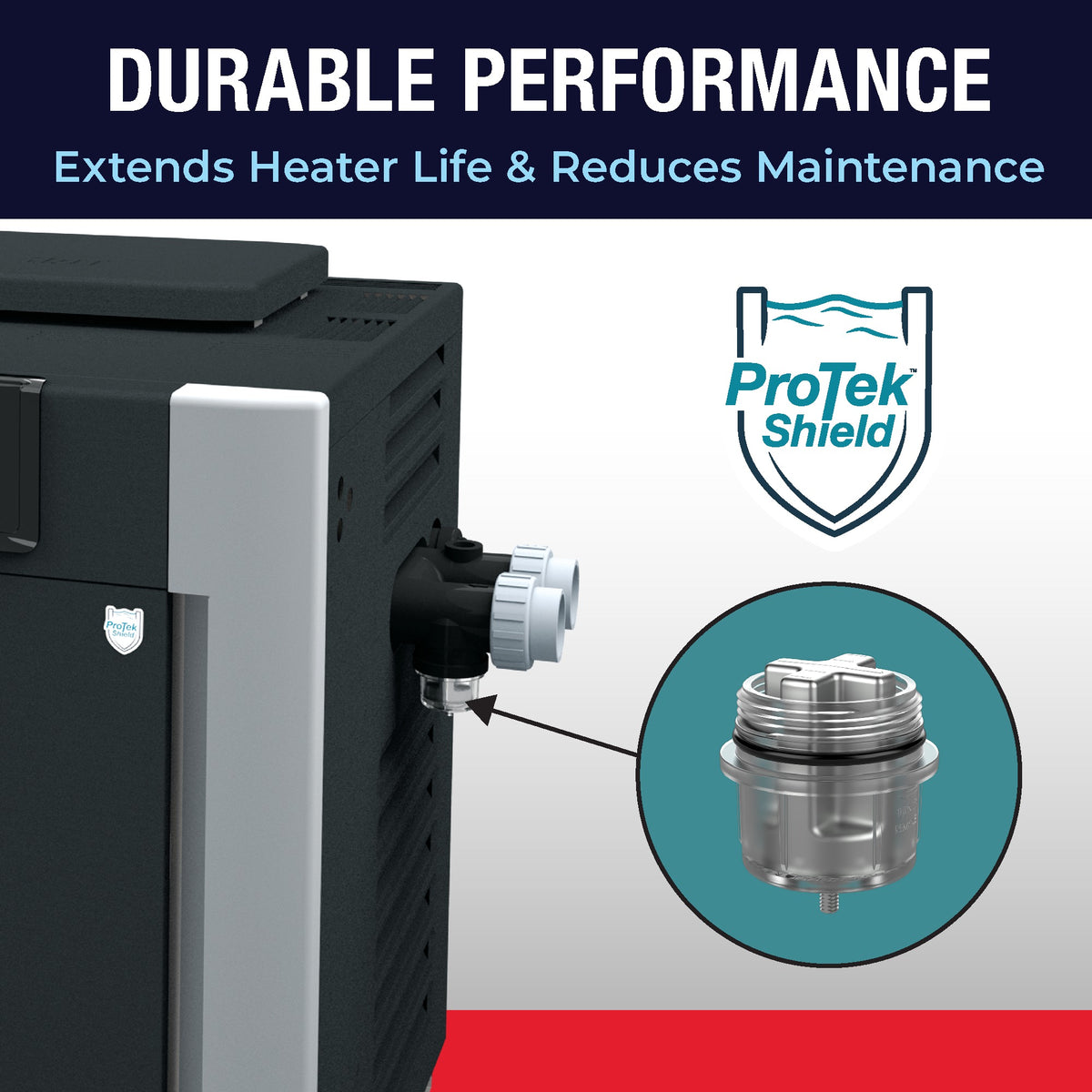

- ProTek Shield: a replaceable module that protects the heat exchanger and extends the life of the unit

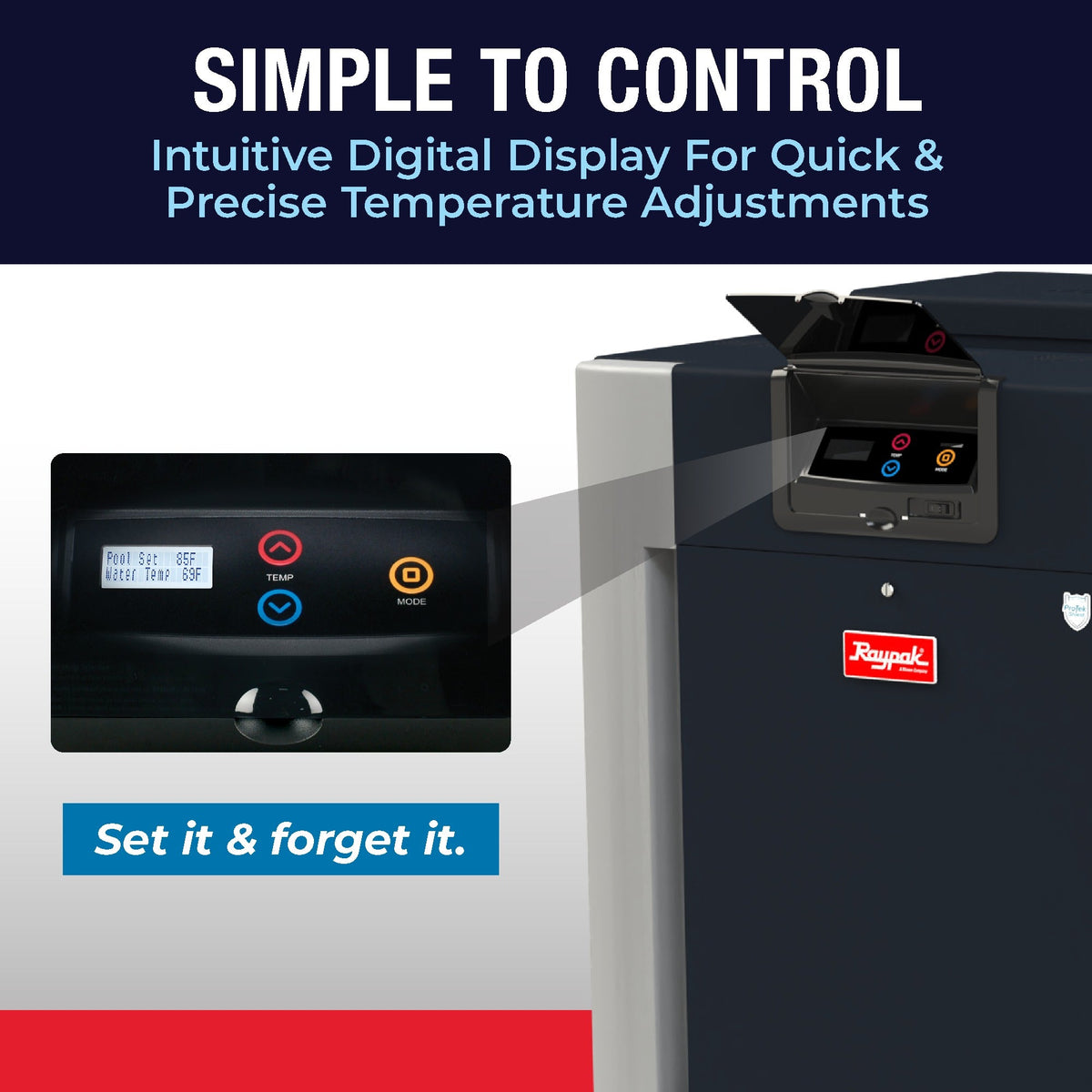

- Microprocessor thermostat that ties into an existing 2-wire or 3-wire remote system
- Corrosion-resistant galvanized metal cabinet for indoor or outdoor installation
- 2 in water connections with unions included
Who it's for
- In-ground pool and spa owners replacing an older gas heater
- New builds on natural gas or propane
- Installers who want one familiar cabinet across four sizes
Before you order
- This is a standard-NOx model. Raypak prohibits the sale of non-Low NOx heaters into regions that require Low NOx (certain states, counties and air districts). Tell us where the pool is and we will confirm before you order.
- Each Digital variant carries a Raypak option code (#50, #51, #52, #57, #58) after the model. In Raypak's catalog these codes set gas type and elevation range (for example #50 = natural gas, 0–1,999 ft). Tell us your gas type and site elevation and we will confirm the right code with Raypak before your order ships.
- Confirm your gas type. Natural gas and propane are different units and cannot be swapped after purchase.
- Requires 120 or 240 VAC single-phase power (factory-wired for 240 V). Raypak says not to run it on 208 V.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Raypak residential warranty: 2 years parts and labor on residential installs (most sizes carry 1 year in commercial applications). See the Raypak warranty 100-10000378.
What's included
- Raypak Digital gas pool and spa heater in the size, gas type and option code you select
- 2 in water connection unions
- ProTek Shield module
Key Features
- 82% thermal efficiency on every size
- Copper fin tube heat exchanger in a straight-tube design
- ProTek Shield: a replaceable module that protects the heat exchanger and extends the life of the unit
- Microprocessor thermostat that ties into an existing 2-wire or 3-wire remote system
- Corrosion-resistant galvanized metal cabinet for indoor or outdoor installation
- 2 in water connections with unions included
Who It's For
- In-ground pool and spa owners replacing an older gas heater
- New builds on natural gas or propane
- Installers who want one familiar cabinet across four sizes
What's Included
- Raypak Digital gas pool and spa heater in the size, gas type and option code you select
- 2 in water connection unions
- ProTek Shield module
About the Brand
Heating Performance
- BTU/h input — 206A
- 199,500
- BTU/h input — 266A
- 266,000
- BTU/h input — 336A
- 332,500
- BTU/h input — 406A
- 399,000
- Thermal efficiency
- 82%
- Maximum water flow
- 100 GPM
Fuel & Combustion
- Fuel
- Natural gas or propane, by variant
- Ignition
- Electronic intermittent (IID)
- Venting category
- Category I
Construction
- Heat exchanger
- Copper fin tube
- Headers
- Polymer header
- ASME certified
- No
Installation
- Electrical
- 120/240 VAC, 1-phase, 60 Hz
- Installation
- Indoor or outdoor
- Water connections
- 2 in slip
- Gas connection
- 3/4 in NPT
- Cabinet H x W x D — 206A
- 38 in x 20 in x 28 in
- Cabinet H x W x D — 266A
- 38 in x 23 in x 28 in
- Cabinet H x W x D — 336A
- 38 in x 26 in x 28 in
- Cabinet H x W x D — 406A
- 38 in x 29 in x 28 in
Compliance & Fit
- NOx
- Standard NOx — not a Low NOx model
- Unit code
- Printed on each variant; see Before you order
