Raypak Digital 206A / 266A / 336A / 406A Natural Gas or Propane Pool & Spa Heater, Cupro-Nickel
014938
$3,291.00 - $4,540.00
Save $98.73 on this order paying by wire
ㅤ
Key Specs
The same Digital cabinet with a cupro-nickel fin tube heat exchanger, built for salt systems and aggressive water chemistry.
- BTU/h input
- 180,000 – 360,000
- Thermal efficiency
- 82%
- Max water flow
- 100 GPM
- Heat exchanger
- Cupro-nickel fin tube
- Electrical
- 120/
240 VAC, 1-phase
The Digital heater with a cupronickel fin tube heat exchanger, for salt-chlorinated pools and water chemistry that is hard on copper. Raypak rates the cupronickel versions at 180,000, 240,000, 300,000 and 360,000 BTU input for the 206A, 266A, 336A and 406A cabinets.
Key features
- Cupronickel fin tube heat exchanger in a straight-tube design
- 82% thermal efficiency
- ProTek Shield: a replaceable module that protects the heat exchanger

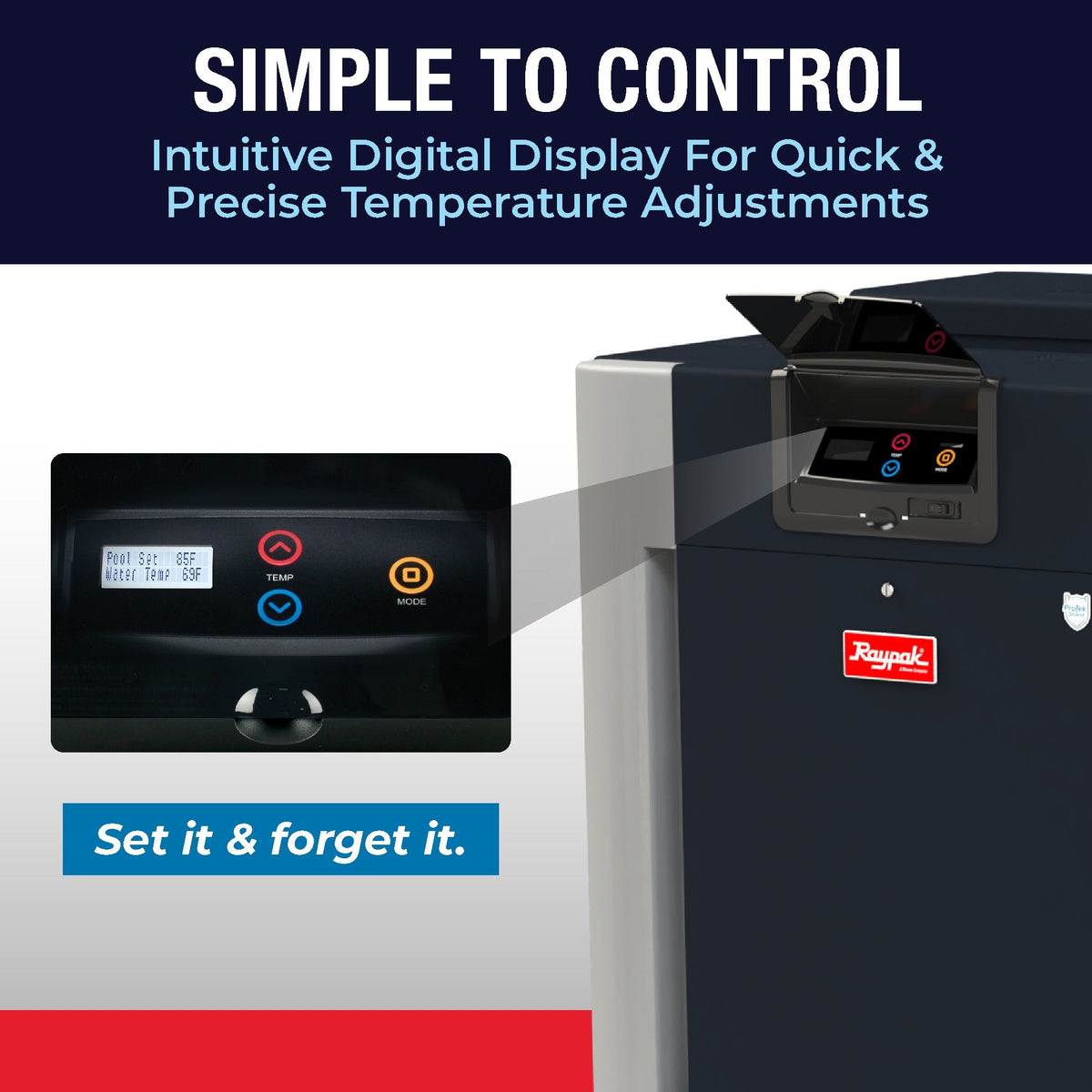

- Microprocessor thermostat that ties into an existing 2-wire or 3-wire remote system
- Corrosion-resistant galvanized metal cabinet for indoor or outdoor installation
- 2 in water connections with unions included
Who it's for
- Salt-chlorinated pools
- Pools with hard or aggressive water chemistry
- Coastal installations
Before you order
- Input is lower than the copper Digital of the same cabinet size (for example the 406A cupronickel is 360,000 BTU, not 399,000). Size your heater on the cupronickel rating.
- This is a standard-NOx model. Raypak prohibits the sale of non-Low NOx heaters into regions that require Low NOx (certain states, counties and air districts). Tell us where the pool is and we will confirm before you order.
- Each Digital variant carries a Raypak option code (#50, #51, #52, #57, #58) after the model. In Raypak's catalog these codes set gas type and elevation range (for example #50 = natural gas, 0–1,999 ft). Tell us your gas type and site elevation and we will confirm the right code with Raypak before your order ships.
- Confirm your gas type. Natural gas and propane are different units and cannot be swapped after purchase.
- Requires 120 or 240 VAC single-phase power (factory-wired for 240 V).
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Raypak residential warranty: 2 years parts and labor on residential installs (most sizes carry 1 year in commercial applications). See the Raypak warranty 100-10000378.
What's included
- Raypak Digital cupronickel gas pool and spa heater in the size, gas type and option code you select
- 2 in water connection unions
- ProTek Shield module
Key Features
- Cupronickel fin tube heat exchanger in a straight-tube design
- 82% thermal efficiency
- ProTek Shield: a replaceable module that protects the heat exchanger
- Microprocessor thermostat that ties into an existing 2-wire or 3-wire remote system
- Corrosion-resistant galvanized metal cabinet for indoor or outdoor installation
- 2 in water connections with unions included
Who It's For
- Salt-chlorinated pools
- Pools with hard or aggressive water chemistry
- Coastal installations
What's Included
- Raypak Digital cupronickel gas pool and spa heater in the size, gas type and option code you select
- 2 in water connection unions
- ProTek Shield module
About the Brand
Heating Performance
- BTU/h input — 206A
- 180,000
- BTU/h input — 266A
- 240,000
- BTU/h input — 336A
- 300,000
- BTU/h input — 406A
- 360,000
- Thermal efficiency
- 82%
- Maximum water flow
- 100 GPM
- Note
- Cupronickel inputs per Raypak brochure RP-P-601-1 Rev C
Fuel & Combustion
- Fuel
- Natural gas or propane, by variant
- Ignition
- Electronic intermittent (IID)
- Venting category
- Category I
Construction
- Heat exchanger
- Cupro-nickel fin tube
- Headers
- Polymer header
- ASME certified
- No
Installation
- Electrical
- 120/240 VAC, 1-phase, 60 Hz
- Installation
- Indoor or outdoor
- Water connections
- 2 in slip
- Gas connection
- 3/4 in NPT
- Cabinet H x W x D — 206A
- 38 in x 20 in x 28 in
- Cabinet H x W x D — 266A
- 38 in x 23 in x 28 in
- Cabinet H x W x D — 336A
- 38 in x 26 in x 28 in
- Cabinet H x W x D — 406A
- 38 in x 29 in x 28 in
Compliance & Fit
- NOx
- Standard NOx — not a Low NOx model
