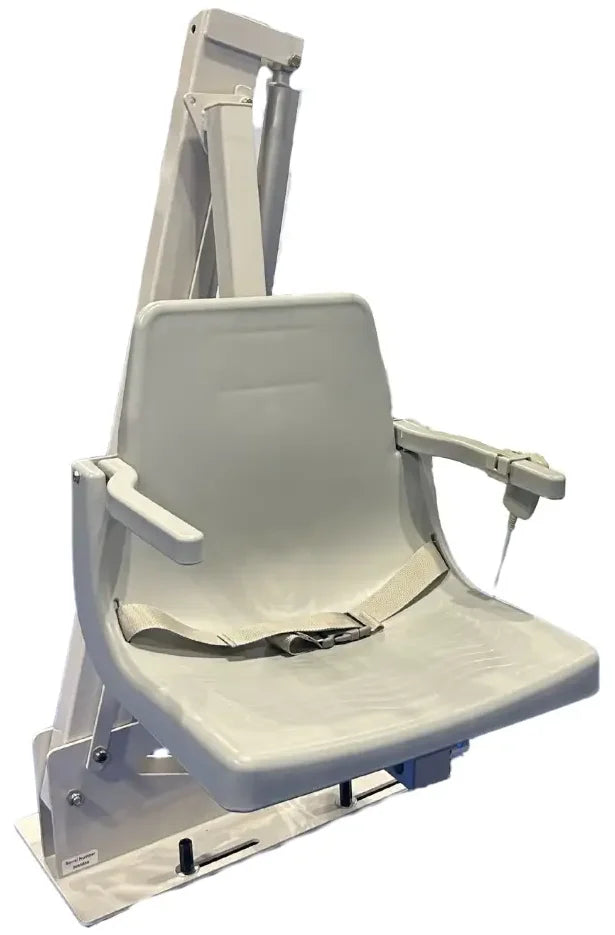

Global Pool Products Legend L-350R2 ADA pool lift – front three-quarter view

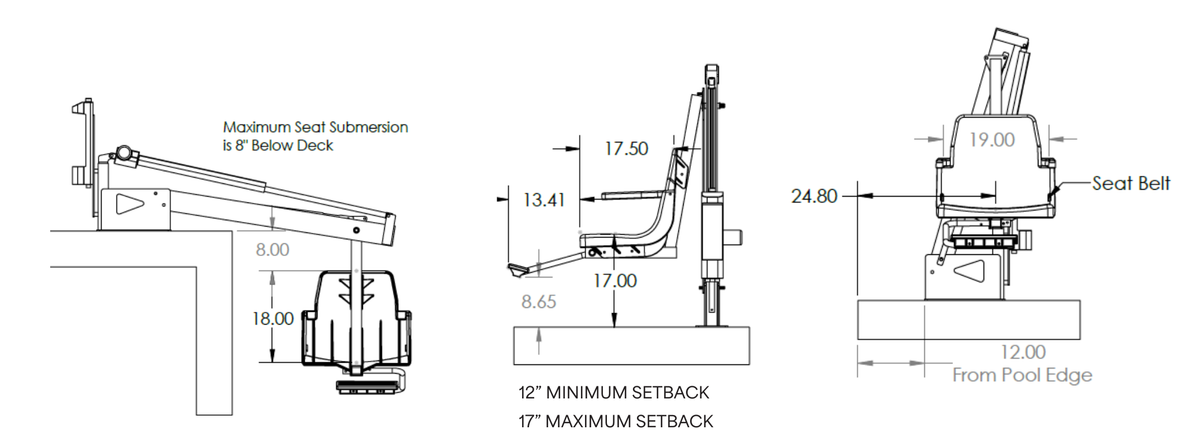

Global Pool Products Legend L-350R2 pool lift dimension drawing

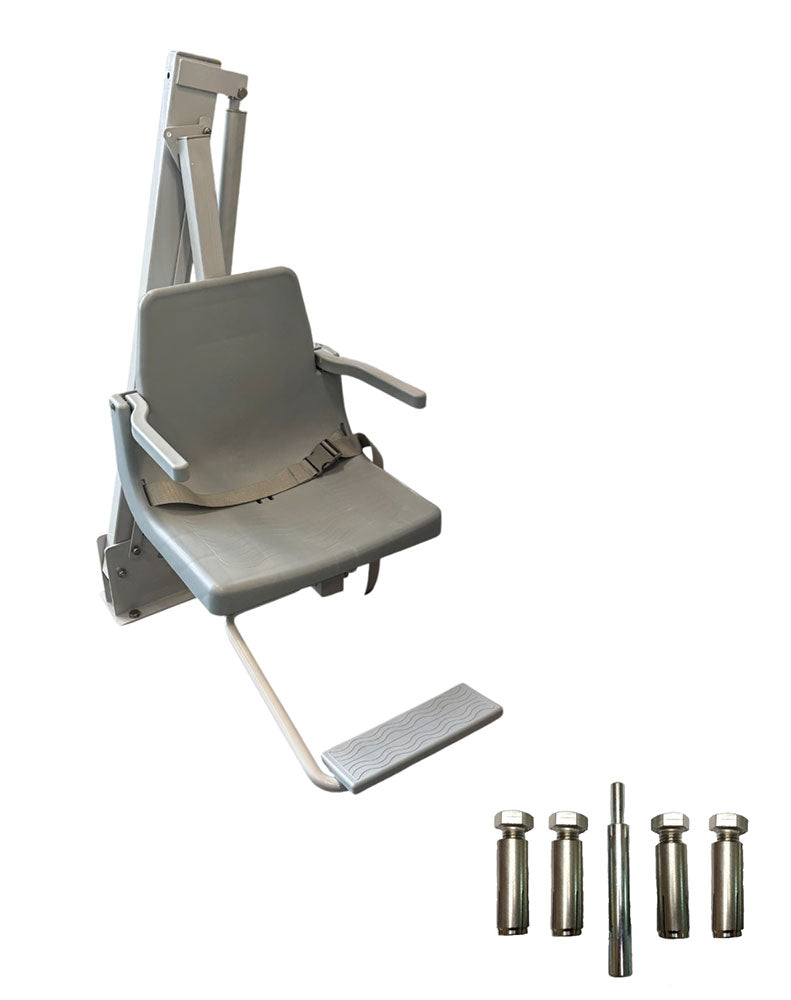

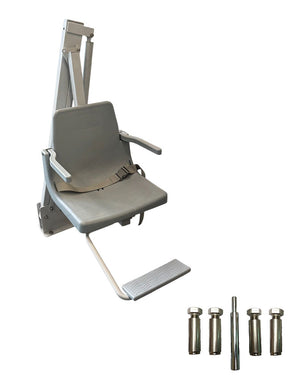

Global Pool Products Legend L-350R2 pool lift with drop-in anchor hardware

Global Pool Products Legend Series L-350R2 ADA Pool Lift, 350 lb Capacity, Field-Reversible

Name: Global Pool Products Legend Series L-350R2 ADA Pool Lift, 350 lb Capacity, Field-Reversible
Brand: Global Pool Products
SKU: L350R2NA
Price: 4999.0 USD
Availability: InStock

L350R2NA

$4,399.00 - $4,999.00

Save $149.97 on this order paying by wire

ㅤ

Talk to a real person

Key Specs

350 lb field-reversible ADA pool lift with 24V battery drive

Capacity: 350 lb
Power: 24V battery, charger incl.
Setback: 12-17 in.
Frame warranty: 5 years
Anchor: None or drop-in

The Legend Series L-350R2 is a compact 350 lb capacity ADA lift for pool and spa access, built on a powder-coated 304 stainless frame with a 24-volt battery drive. It is field-reversible, so the seat can be set up on either side to suit the pool layout.

Key features

350 lb lifting capacity
Field-reversible configuration to suit the pool layout
304 stainless steel with multi-step powder coat finish
24-volt battery-powered system with charging system included
User-friendly hand controls; arm rests, foot rest and safety seat belt
Retro-fits into most existing anchorless models (2026 catalog)
Marine-grade hardware; ships UPS Ground
5-year structural warranty

Who it's for

Commercial and residential pools needing a compact 350 lb ADA lift Owners replacing an older lift who want a field-reversible unit

Before you order

Confirm the anchor you need. Lifts listed without an anchor bolt to an existing compatible anchor; new installs need the matching anchor set in sound concrete.
Check deck material and thickness: Global Pool Products' anchor instructions call for solid concrete at the lift location (paver decks need a concrete pad under the lift).
The anchor must be electrically bonded to the pool bonding grid per the NEC and local code; have a qualified installer handle bonding and core drilling.
For public pools, place the lift where the water is no deeper than 48 in. and keep the clear deck space the ADA standard requires.

What's included

L-350R2 lift with seat, arm rests, foot rest and safety seat belt
24-volt battery and charging system
Hand control
Drop-in anchor on the L350R2DIA variant; no anchor on L350R2NA

Key Features

350 lb lifting capacity
Field-reversible configuration to suit the pool layout
304 stainless steel with multi-step powder coat finish
24-volt battery-powered system with charging system included
User-friendly hand controls; arm rests, foot rest and safety seat belt
Retro-fits into most existing anchorless models (2026 catalog)
Marine-grade hardware; ships UPS Ground
5-year structural warranty

Who It's For

Commercial and residential pools needing a compact 350 lb ADA lift
Owners replacing an older lift who want a field-reversible unit

What's Included

L-350R2 lift with seat, arm rests, foot rest and safety seat belt
24-volt battery and charging system
Hand control
Drop-in anchor on the L350R2DIA variant; no anchor on L350R2NA

About the Brand

Global Pool Products designs and manufactures pool lifts, slides, rails and ladders, diving boards, games and in-pool furniture in Bad Axe, Michigan, and states that its products are made in the USA. The company sells through authorized dealers rather than directly to consumers. Its lift drawings, manuals and lift videos also carry the Global Lift Corp. name.

Performance

Lifting capacity: 350 lb
Seat submersion: Up to 8 in. below deck

Installation

Setback from pool edge: 12 in. min / 17 in. max
Anchor options: No anchor (L350R2NA) or drop-in anchor (L350R2DIA)

Electrical

Power: 24-volt rechargeable battery with charger

Construction

Frame: 304 stainless steel, multi-step powder coat
Configuration: Field-reversible

Warranty

Structural: 5-year limited
Actuator & controls: 2 years, then prorated to 5 years
Battery: 1 year

Shipping

Ships via: UPS Ground

Product

Pool Type: In-ground, Spa
Application: Commercial, Residential
Warranty (years): 5
Product Line: Legend Series
Compatible With: GLCQDIA L-series drop-in anchor, GLCQPA L-series 4-point anchor, T5068-2 TiMOTION battery, T5068-17 TiMOTION charger, GLCPCXB / GLCPCXG deluxe cover

Manufacturer lists the lift as "Ships via UPS Ground" (parcel).

Global Pool Products gives Superior and Legend Series lifts a 5-year limited structural warranty on the metal frame (the powder coat finish is not included). The actuator and controls are covered for 2 years from the purchase date, then prorated: 60% coverage in year 3, 50% in year 4 and 40% in year 5. The battery is covered for 1 year.

Coverage applies to the original end user when the lift is installed, used and maintained per the manufacturer's instructions. Return the warranty registration card within 30 days of purchase. Claims are made in writing through the distributor that sold the lift. Exceeding the rated weight capacity, improper chemical use, cosmetic rust, normal wear and unapproved repairs are excluded.

: Only L350R2DIA includes an anchor (drop-in). L350R2NA ships without an anchor for use with a compatible L-series anchor (GLCQDIA drop-in or GLCQPA 4-point, sold separately).
: Global Pool Products lists a setback range of 12 to 17 in. from the pool edge, with a maximum seat submersion of 8 in. below the deck. Check your deck against the drawing in the owner's manual before ordering.
: It runs on a 24-volt rechargeable battery system with a charger included, operated by a hand control. A spare battery (T5068-2) and charging station accessories are available.
: The L-350R2 is rated for 350 lb. Exceeding the rated capacity voids the warranty.
: 5-year limited structural warranty, actuator and controls 2 years then prorated through year 5, battery 1 year.
: Global Pool Products states its lifts are laboratory tested to meet ADA standards. Compliance also depends on placement: the 2010 ADA standard (1009.2) calls for water no deeper than 48 in. at the lift, the raised seat centerline at least 16 in. from the pool edge, and a 36 x 48 in. clear deck space beside the seat.
