Raypak Digital 199K–399K BTU Gas Pool & Spa Heater — Cupro-Nickel
014938
$3,291.00 - $4,540.00
Save $164.55 on this order paying by wire
ㅤ
Key Specs
−The same Digital cabinet with a cupro-nickel fin tube heat exchanger, built for salt systems and aggressive water chemistry.
BTU/h input
199,000 – 399,000
Thermal efficiency
82%
Max water flow
100 GPM
Heat exchanger
Cupro-nickel fin tube
Electrical
120/240 VAC, 1-phase
The same Digital cabinet with a cupro-nickel fin tube heat exchanger, built for salt systems and aggressive water chemistry.
Features
- Cupro-nickel fin tube heat exchanger for salt systems and hard water
- 82% thermal efficiency across the range
- ProTek Shield replaceable heat-exchanger protection module
- Galvanised, corrosion-resistant cabinet
- Microprocessor thermostat that ties into an existing remote system
Who it's for
- Salt-chlorinated pools
- Pools with hard or aggressive water chemistry
- Coastal installations
Before you order
- This is a standard-NOx model. Some states, counties and air districts require Low NOx pool heaters; this unit may not be installed in those areas. Check your local code before ordering.
- Each variant carries a Raypak unit code (#50, #51, #52, #57, #58 or #26) printed after the model. Raypak does not publish what these codes mean and we are not going to guess — confirm the correct code for your gas type and site elevation with us before you order, and we will confirm it with Raypak.
- Confirm your gas type — natural gas and propane are different units and cannot be swapped after purchase.
- These are freight items. Check that the delivery truck can reach your property and that you have help to move the unit onto the pad. Installation must be carried out to local code by a qualified installer.
- Covered by the Raypak limited warranty. The full warranty document is published by Raypak at 100-10000378.
Key Features
- Cupro-nickel fin tube heat exchanger for salt systems and hard water
- 82% thermal efficiency across the range
- ProTek Shield replaceable heat-exchanger protection module
- Galvanised, corrosion-resistant cabinet
- Microprocessor thermostat that ties into an existing remote system
Who It's For
- Salt-chlorinated pools
- Pools with hard or aggressive water chemistry
- Coastal installations
About the Brand
Heating Performance
| BTU/h input — 206A | 199,000 |
|---|---|
| BTU/h input — 266A | 266,000 |
| BTU/h input — 336A | 332,000 |
| BTU/h input — 406A | 399,000 |
| Thermal efficiency | 82% |
| Maximum water flow | 100 GPM |
Fuel & Combustion
| Fuel | Natural gas or propane, by variant |
|---|---|
| Ignition | Electronic intermittent (IID) |
| Venting category | Category I |
Construction
| Heat exchanger | Cupro-nickel fin tube |
|---|---|
| Headers | Polymer header |
| ASME certified | No |
Installation
| Electrical | 120/240 VAC, 1-phase, 60 Hz |
|---|---|
| Installation | Indoor or outdoor |
| Water connections | 2 in slip |
| Gas connection | 3/4 in NPT |

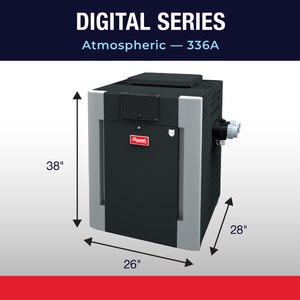

| Cabinet H x W x D — 206A | 38 in x 20 in x 28 in |
| Cabinet H x W x D — 266A | 38 in x 23 in x 28 in |
| Cabinet H x W x D — 336A | 38 in x 26 in x 28 in |
| Cabinet H x W x D — 406A | 38 in x 29 in x 28 in |
Compliance & Fit
| NOx | Standard NOx — not a Low NOx model |
|---|
Free shipping on this item
Free shipping within the United States, 3–5 business days. Freight item — confirm truck access.
