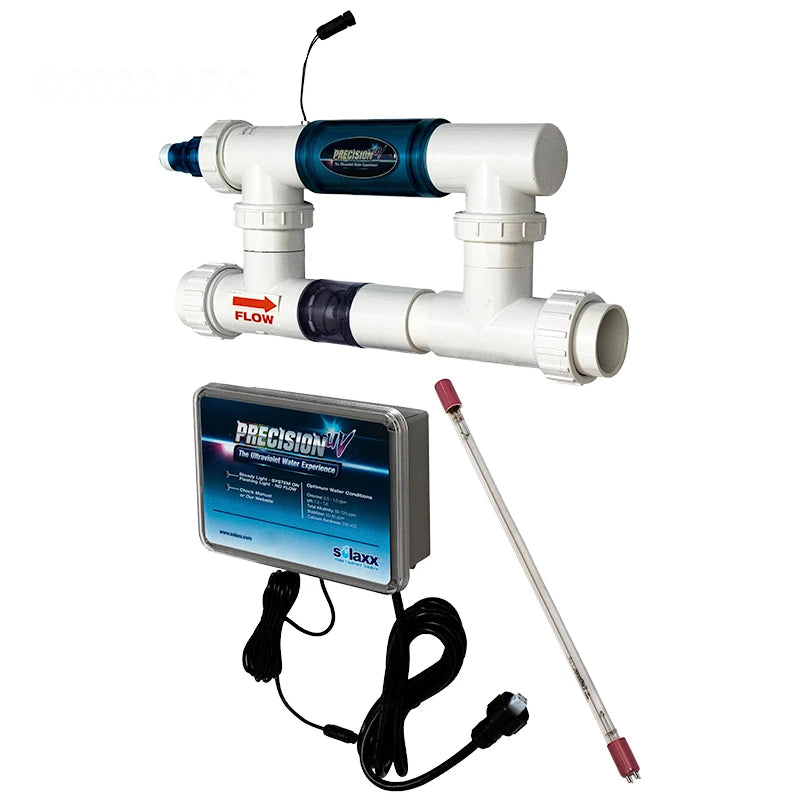

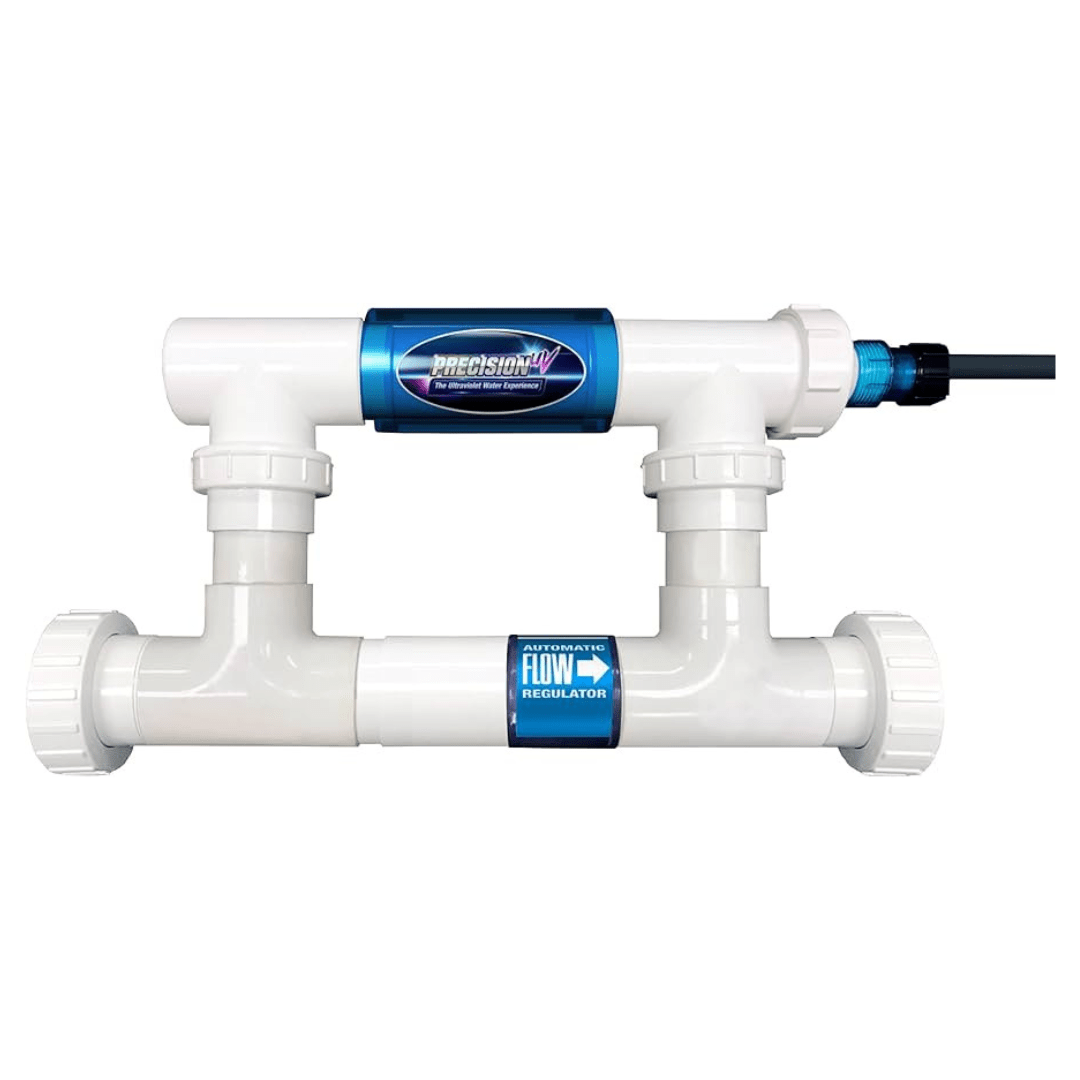

Solaxx Precision UV Pool Sanitizer — UV6000A, up to 40,000 Gallons
UV6000A
$1,423.00
Save $71.15 on this order paying by wire
ㅤ
Key Specs
−UV sanitation for inground pools to 40,000 gallons, on a manifold that flows up to 120 GPM.
Pool Capacity
Up to 40,000 gal
Lamp Life
13,000 hours
Flow Rate
Up to 120 GPM
UV Dose
30 mJ/cm²
Connections
2 in unions
UV sanitation for inground pools to 40,000 gallons, on a manifold that flows up to 120 GPM.
Features and benefits
- Rated for inground pools up to 40,000 gallons
- 13,000 hour lamp life

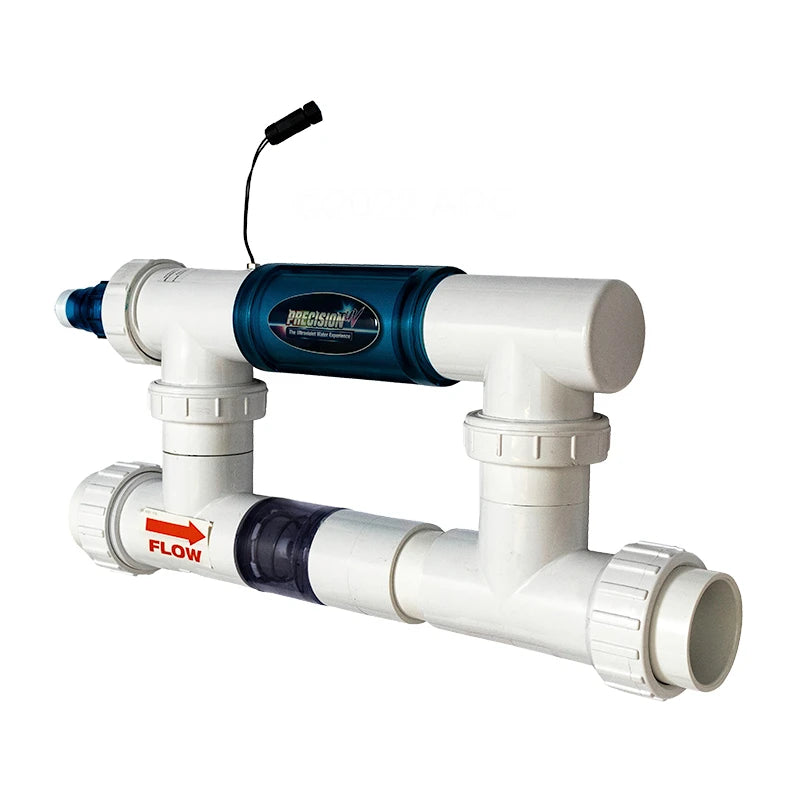

- Flows up to 120 GPM through a 20 inch manifold
- 30 mJ/cm² UV dose at regulated flow
- Dry fire protection stops the lamp running without water

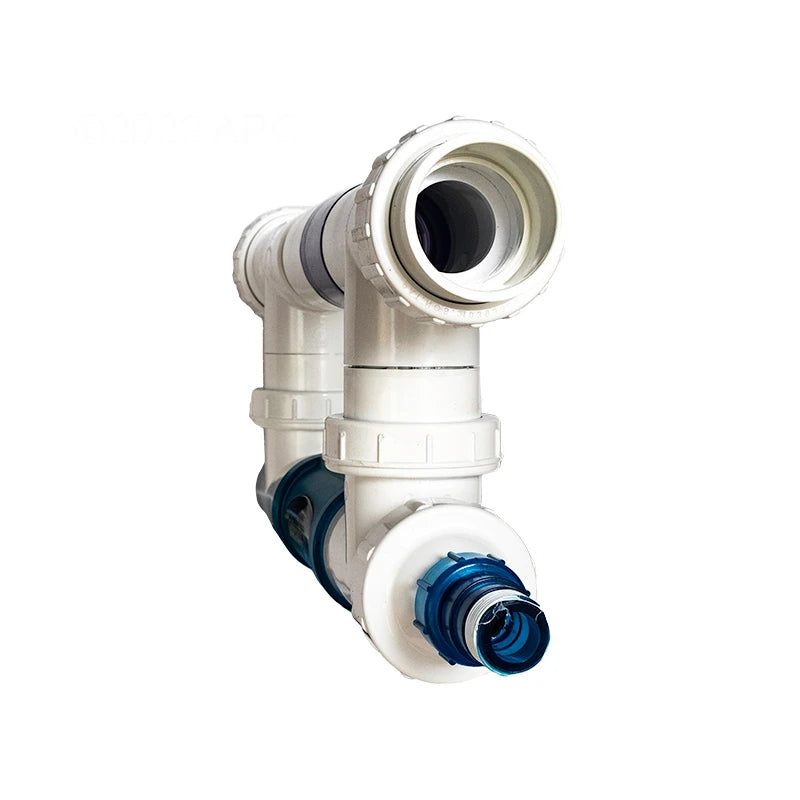

- 2 inch pipe connections with 2 inch unions on the manifold
- Molded ABS construction, UL 1081 listed
Who it's for
- Inground pool owners reducing chlorine demand
- Salt pool owners adding UV as a secondary sanitizer
- Owners who want a bypass manifold rather than an inline chamber
What's included
- UV chamber with lamp and quartz sleeve
- Bypass manifold

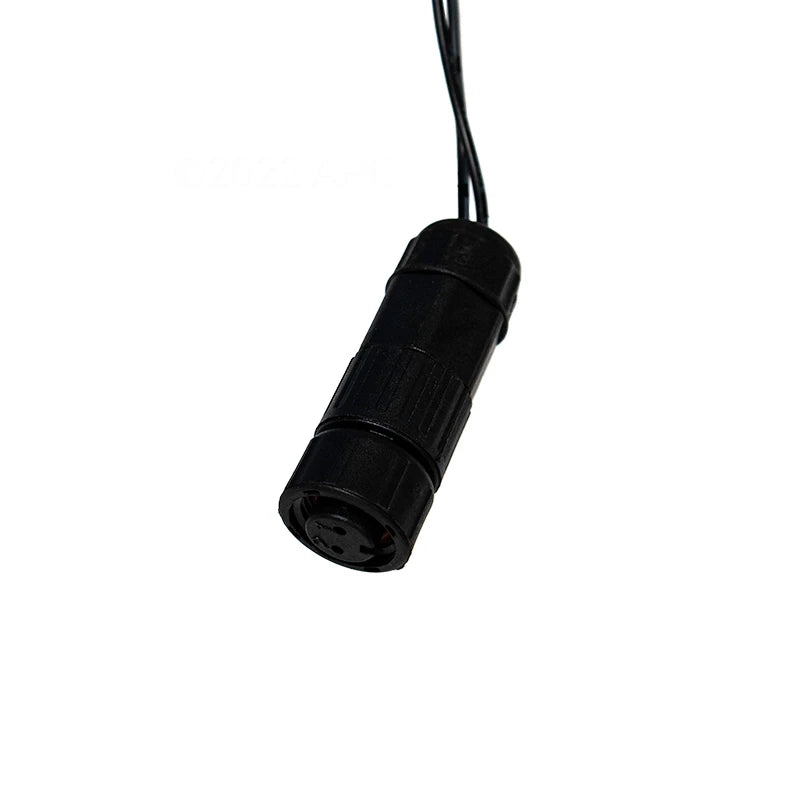

- Power supply
- 2 in unions
Before you order
Check your pump's flow sits inside the 120 GPM ceiling and that you have 2 inch plumbing for the manifold unions. The manifold is 20 inches wide, so measure the run you intend to cut into. UV is a secondary sanitizer — you will still run a chlorine residual, just less of it. Note the warranty on this unit is the manual's two-year term on the chamber and power supply and one year on the lamp, not the three years the website headline suggests.
Key Features
- Rated for inground pools up to 40,000 gallons
- 13,000 hour lamp life
- Flows up to 120 GPM through a 20 inch manifold
- 30 mJ/cm² UV dose at regulated flow
- Dry fire protection stops the lamp running without water
- 2 inch pipe connections with 2 inch unions on the manifold
- Molded ABS construction, UL 1081 listed
Who It's For
- Inground pool owners reducing chlorine demand
- Salt pool owners adding UV as a secondary sanitizer
- Owners who want a bypass manifold rather than an inline chamber
What's Included
- UV chamber with lamp and quartz sleeve
- Bypass manifold
- Power supply
- 2 in unions
About the Brand
Treatment
| Maximum Pool Volume | 40,000 gallons |
|---|---|
| Flow Rate | Up to 120 GPM |
| UV Dose | 30 mJ/cm² at regulated flow |
Lamp
| Lamp Life | 13,000 hours |
|---|---|
| Dry Fire Protection | Yes |
Plumbing
| Connections | 2 inch pipe connections on the manifold with 2 inch unions |
|---|---|
| Manifold Width | 20 inches |
| Maximum Pressure | 50 PSI |
Electrical
| Supply | 110V or 220V (manual states 120/240 VAC) |
|---|---|
| System Power Draw | 60 W maximum |
| Cord Length | 9 feet |
Build
| Material and Listing | Molded ABS, UL 1081 |
|---|
Weight
| Shipping Weight | 16 lb |
|---|
Warranty
| Manufacturer Warranty | Chamber, manifold, power supply and sensor 2 years; UV lamp and quartz sleeve 1 year (per the owner's manual) |
|---|
