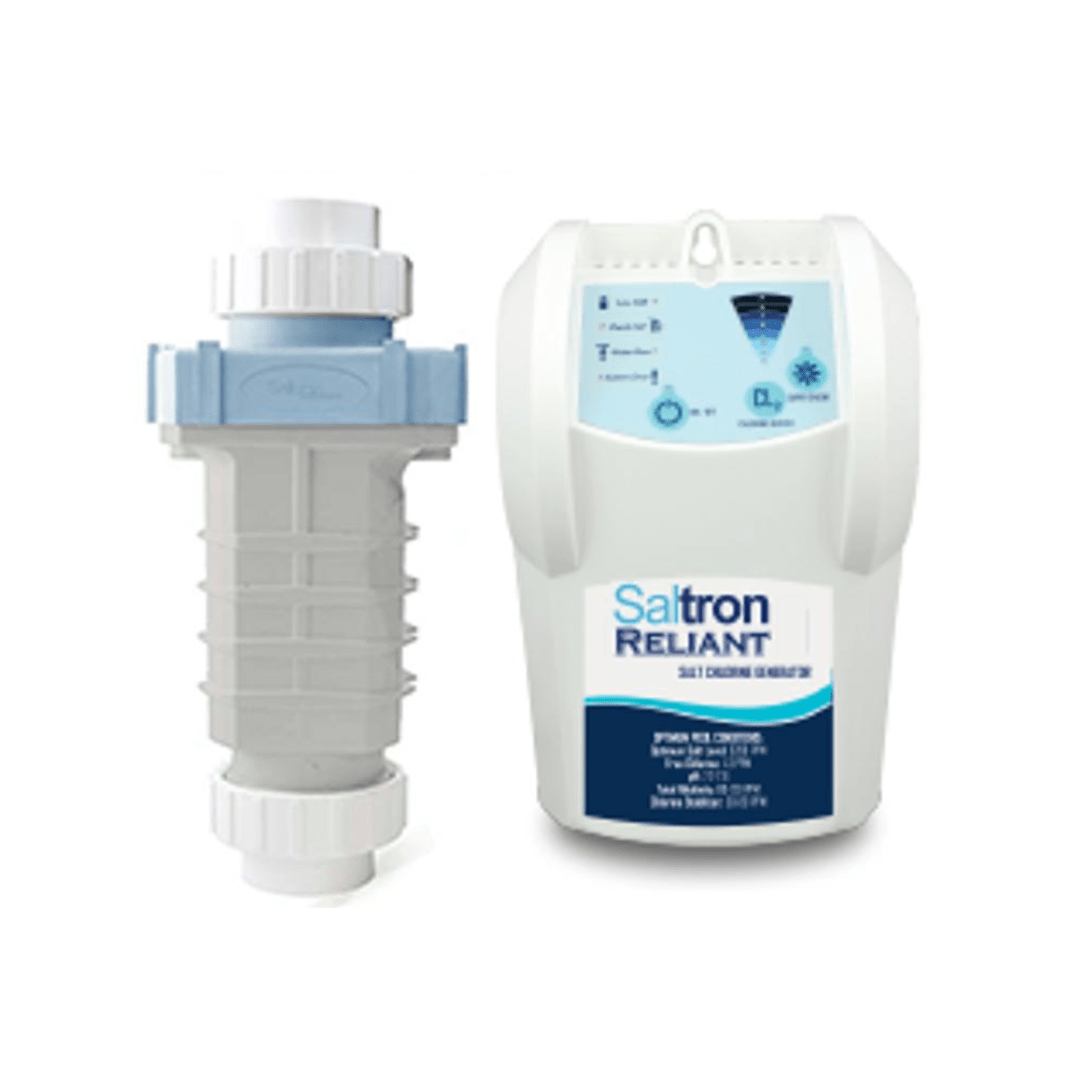

Solaxx Saltron Reliant Salt Chlorine Generator — 25,000 or 40,000 Gallons

Key Features

• Two capacities — 1.15 lb of chlorine per 24 hours at 25,000 gallons, 1.65 lb at 40,000
• Universal 90–260 VAC supply runs on 115V or 230V with no rewiring

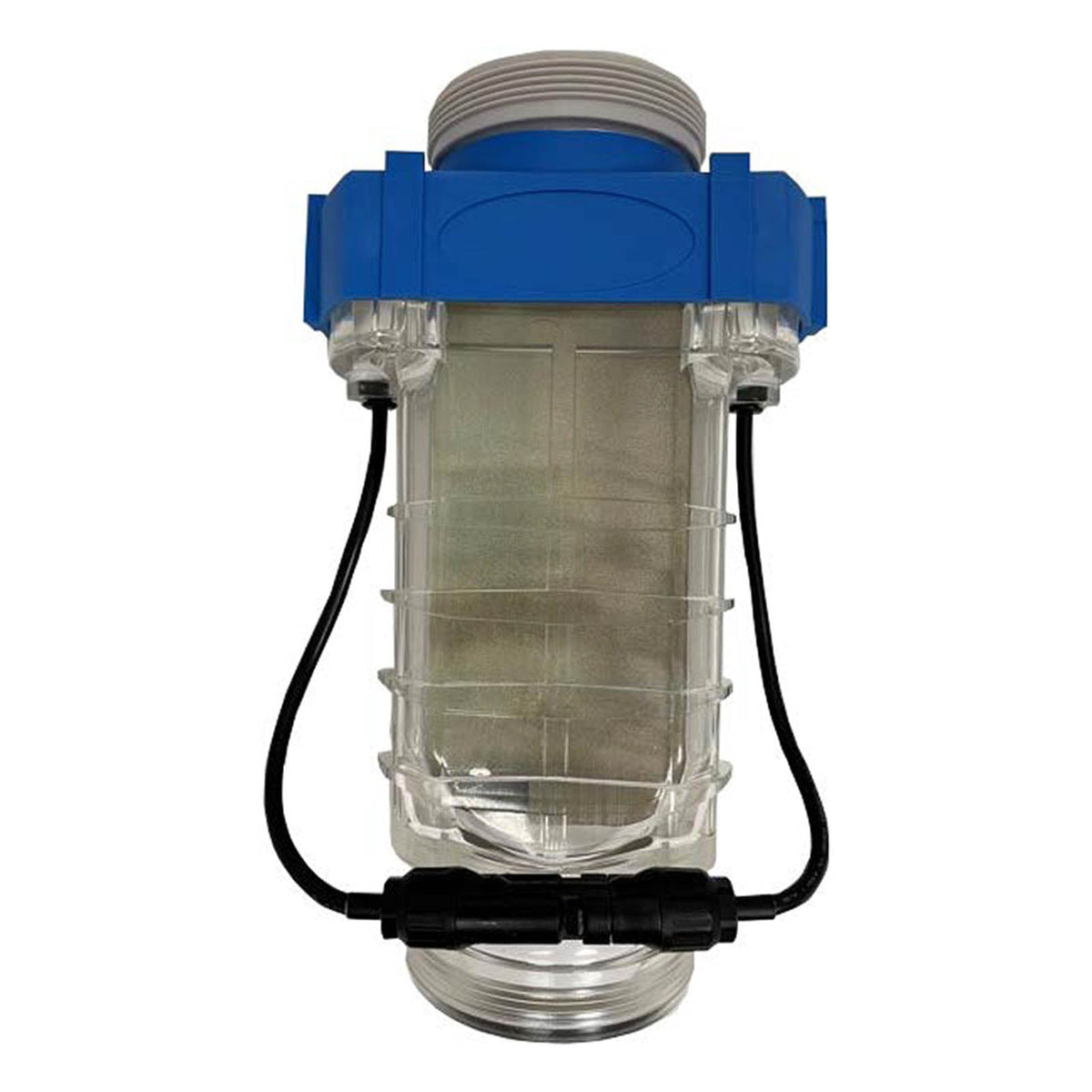

• Bipolar electrodes with a cleaning cap supplied
• Flow and temperature sensor prevents production when water is not moving
• Eight output levels plus a SuperChlor button for 24 hours at full capacity
• Anti-UV tinted window over the control membrane, which is what usually fails first outdoors

Who It's For

• Inground pool owners converting from tablets to salt
• Owners replacing a failed chlorinator who want one that runs on either voltage
• Anyone who wants a single control box with eight output steps rather than a dial

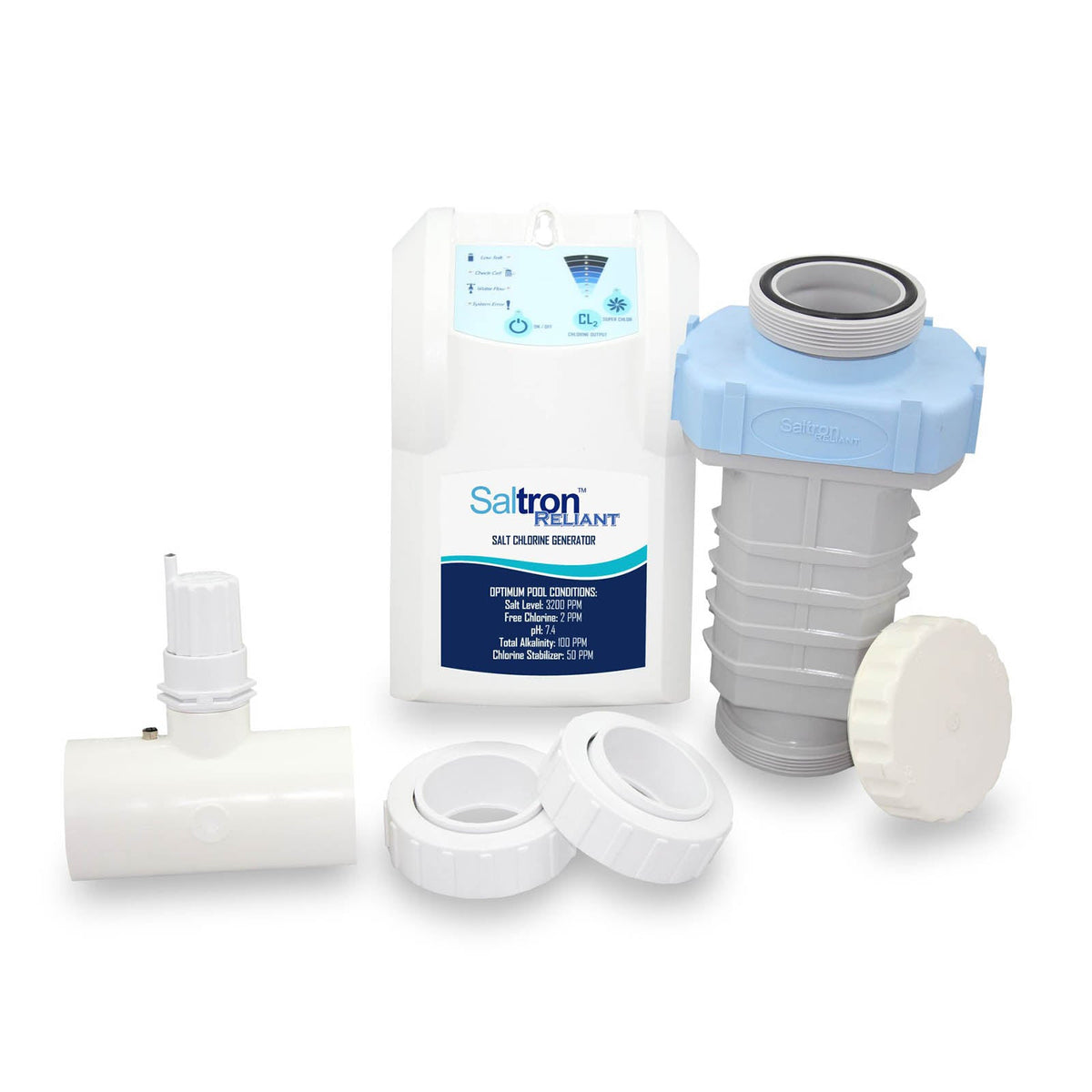

What's Included

• Control box
• Salt cell
• Flow and temperature sensor
• Cell cleaning cap

About the Brand

Capacity

Cell

Control

Water Chemistry

Electrical

Installation

Weight

Warranty

Which capacity should I buy?

Match the rating to your actual pool volume rather than buying up. The CLG225A covers pools to 25,000 gallons at 1.15 lb of chlorine per 24 hours; the CLG240A covers 40,000 gallons at 1.65 lb. An undersized cell runs at full output constantly and wears out early.

Does it need rewiring for 230V?

No. The supply is a 90 to 260 VAC open range, so the same unit runs on 115V or 230V as wired.

What salt level should I hold?

The operating range is 500 to 6,000 ppm, and Solaxx's manual gives 3,500 ppm as optimal with 5,500 ppm as the maximum before corrosion risk climbs. Holding the middle of the range protects your heater, ladders and rails as well as the cell.

Where does the flow sensor go?

In its own tee, between the last piece of equipment and the cell. It is what stops the unit generating chlorine gas into a dead pipe, so it is not optional.

Should I add a zinc anode?

On a salt pool it is worth considering. A sacrificial anode corrodes in place of your heater exchanger, ladders and rails. Solaxx sells an inline zinc anode with a tee that plumbs into the same return line.
