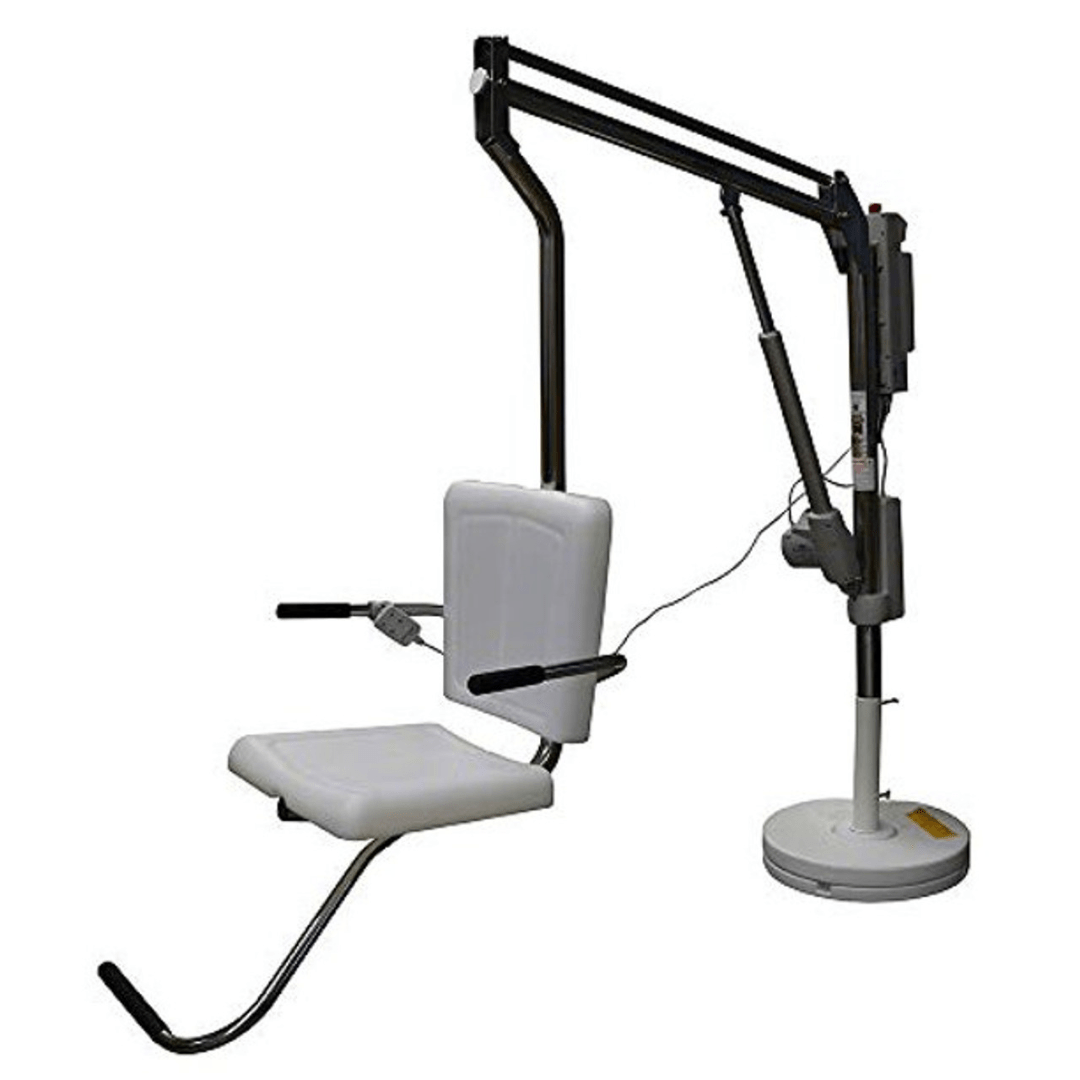

Spectrum Aquatics Motion Trek BP350 ADA pool lift — front three-quarter view on white

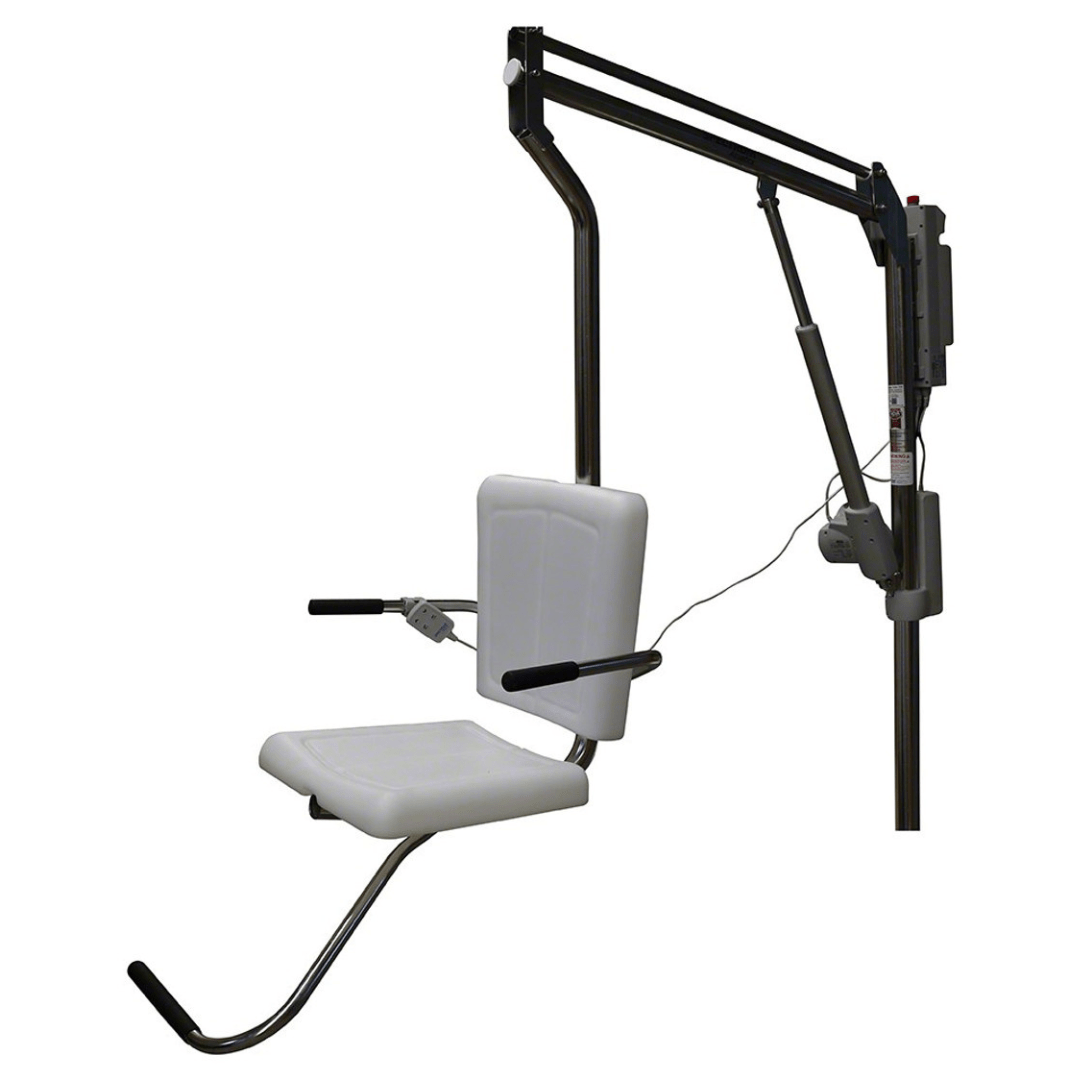

Spectrum Aquatics Motion Trek BP350 ADA pool lift — side view of lift arm and seat

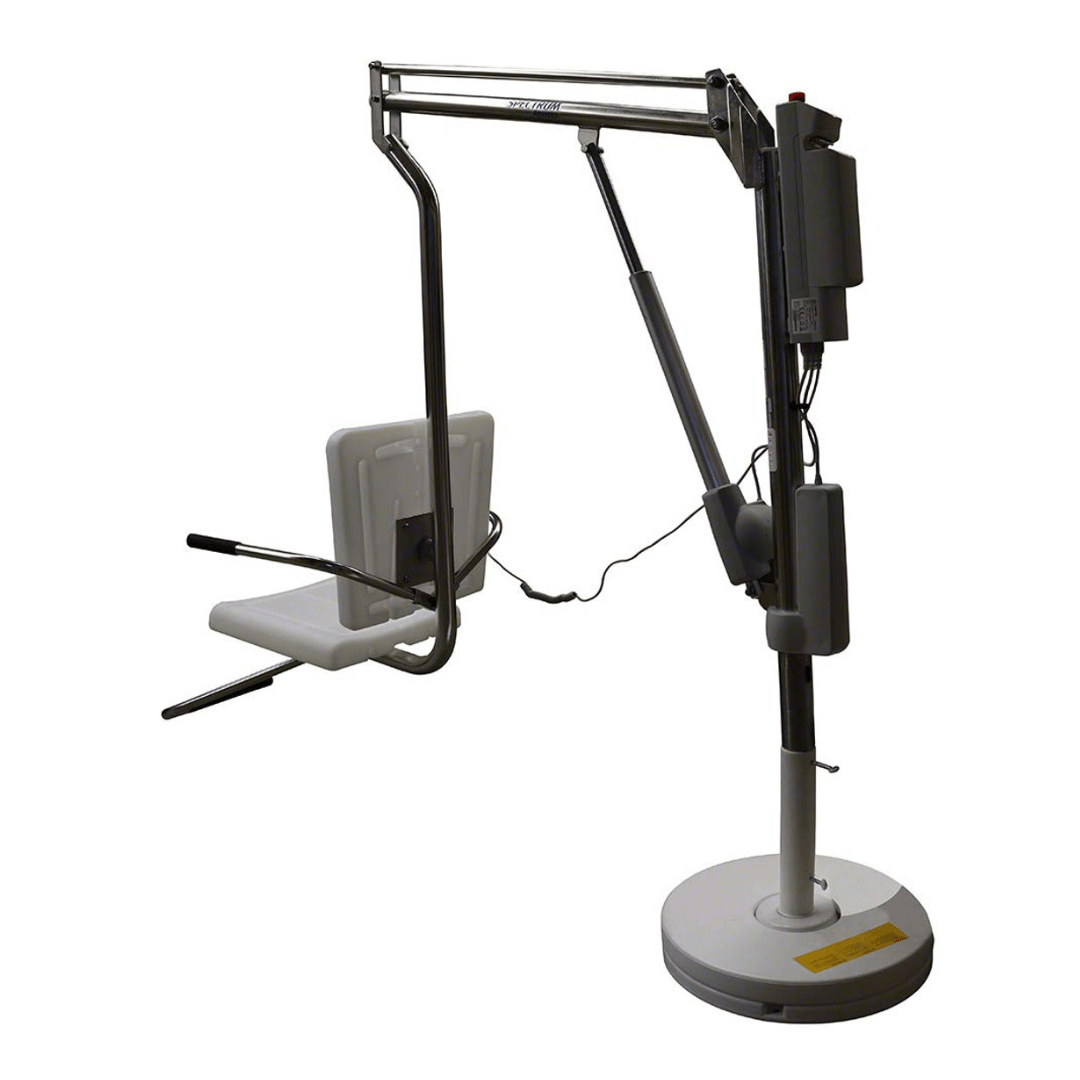

Spectrum Aquatics Motion Trek BP350 ADA pool lift — rear view with mast and anchor base

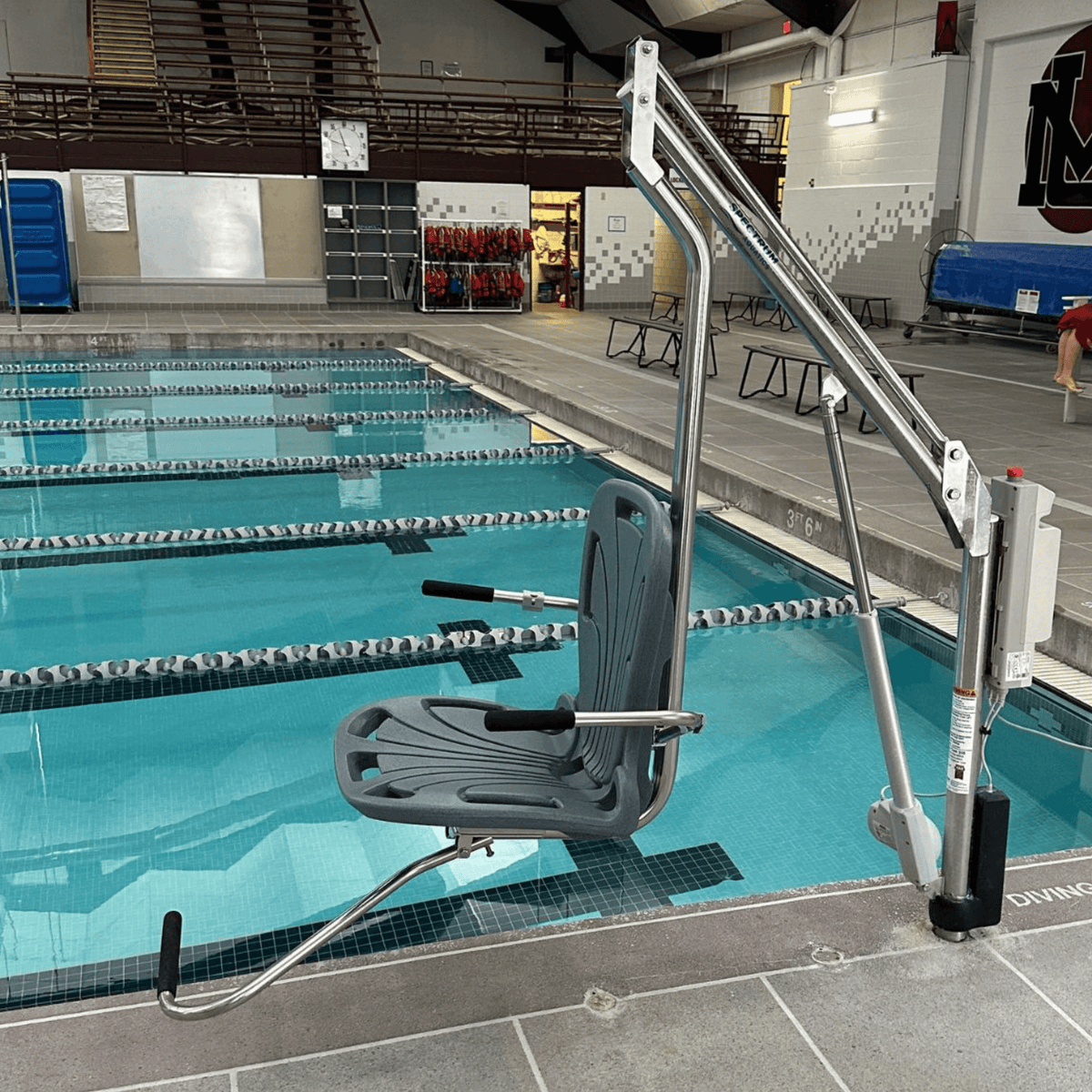

Spectrum Aquatics Motion Trek BP350 ADA pool lift — current ergonomic seat

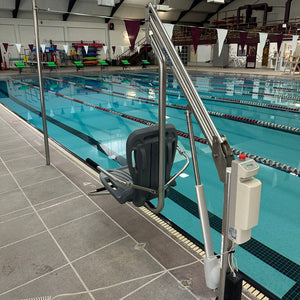

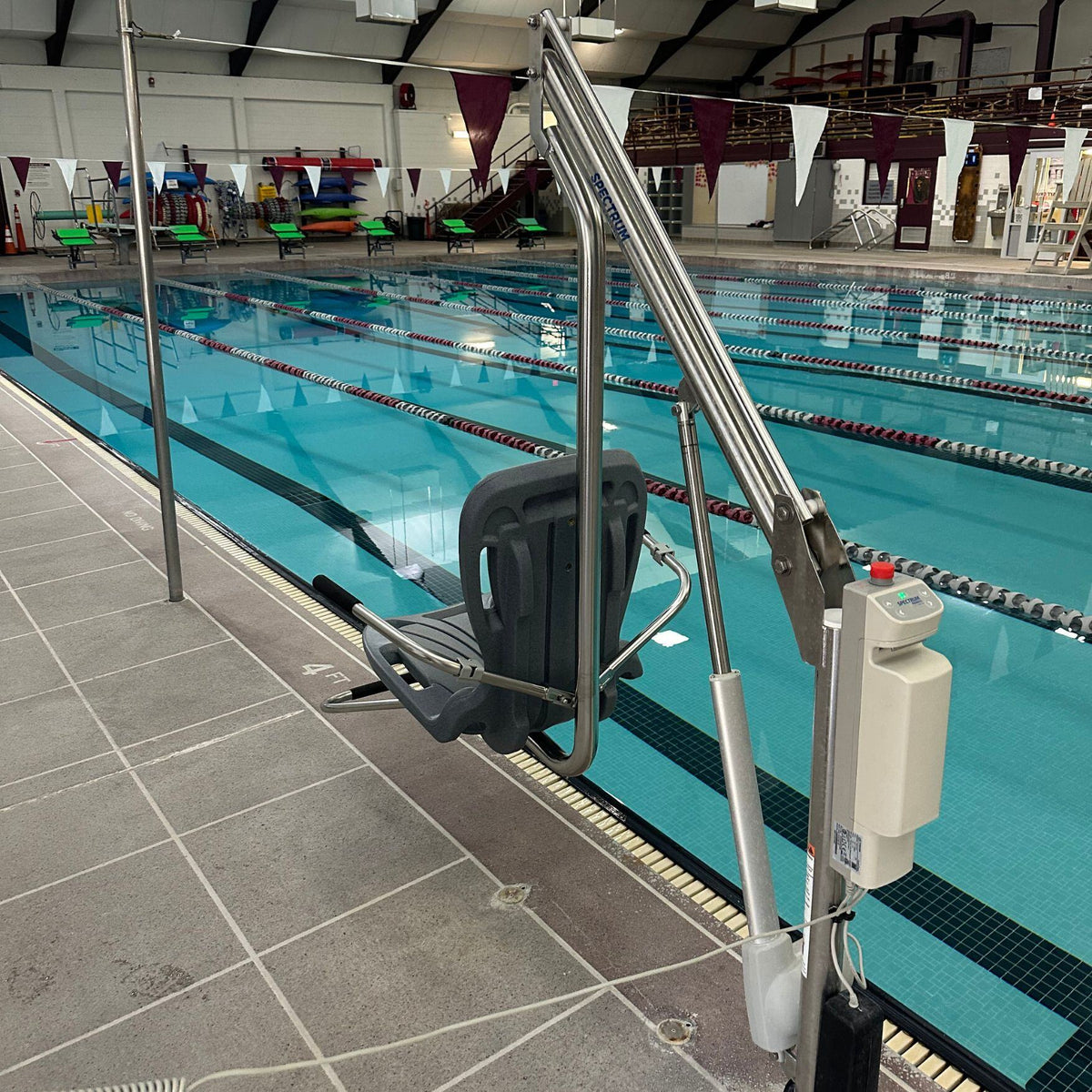

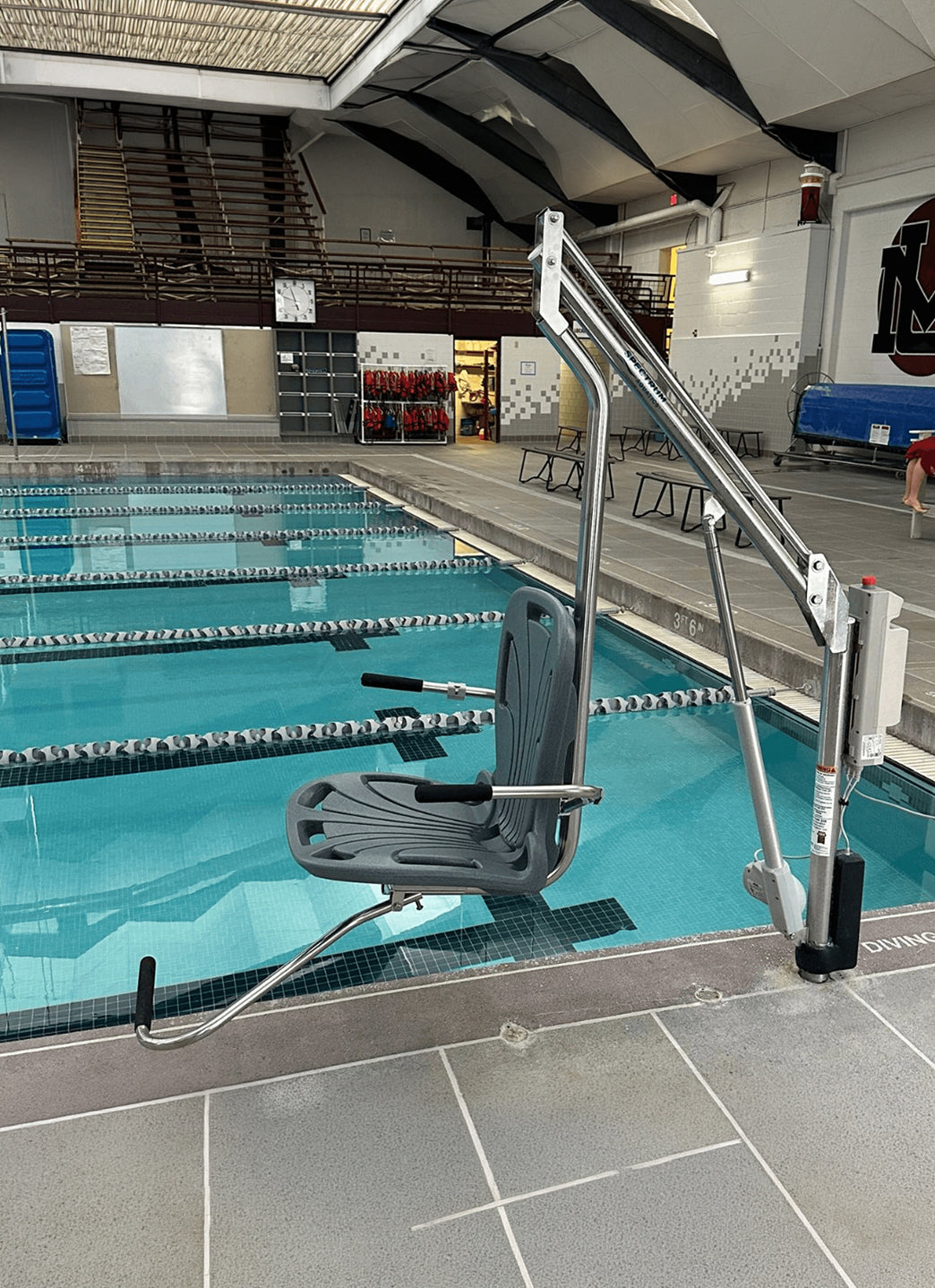

Spectrum Aquatics Motion Trek BP350 ADA pool lift — installed on a pool deck

Spectrum Aquatics

Spectrum Aquatics Motion Trek BP350 ADA Pool Lift, 350 lb Capacity, Battery Powered

Name: Spectrum Aquatics Motion Trek BP350 ADA Pool Lift, 350 lb Capacity, Battery Powered
Brand: Spectrum Aquatics
SKU: 153121
Price: 5507.0 USD
Availability: InStock

153121

$5,507.00 - $6,542.22

Save $165.21 on this order paying by wire

ㅤ

Talk to a real person

Key Specs

ADA pool lift with 350 lb capacity, 360-degree powered rotation and 90 lifts per charge

Lift capacity: 350 lb
Setback: 6" to 28"
Water draft: Up to 13"
Lifts per charge: 90
Rotation: 360-degree powered
Warranty: 5-yr structural / 2-yr electronics

The Spectrum Aquatics Motion Trek BP350 is a battery-powered ADA pool lift that lets swimmers get in and out of the pool independently. It lifts up to 350 lb and rotates a full 360 degrees under power, operated from the deck or from the water.

Key features

350 lb lifting capacity, about 90 lifts per charge
Electropolished 304L stainless steel with Spectra Shield coating
Fits 6" to 28" setbacks with up to 13" water draft
Wired IP67 handset with emergency stop
Deluxe package adds headrest and paddle-style footrest

Who it is for

Commercial pools such as municipal aquatic centers, community pools, universities, YMCAs and therapy pools that need an ADA-compliant means of entry.

Before you order

Confirm the anchor type your deck needs (new-pour composite anchor, wood deck anchor, surface mount anchor or retrofit) and whether you are ordering the lift with or without an anchor.
Confirm deck material and measure the setback from the pool wall to the anchor centerline and the water draft; check them against the ranges in the spec table.
Check your local ADA requirements: ADA guidance calls for a clear deck space of 36" x 48" beside the lift seat.
Anchors in concrete must be bonded to the pool bonding grid and the concrete must cure at least 7 days before use (per the Spectrum owner manual).

What is included

Motion Trek BP350 lift, Standard or Deluxe
Battery, charger and wired handset
Deck anchor on with-anchor variants

Key Features

350 lb operating load capacity
Self-operable from the deck and from the water
90 lifts per battery charge
Electropolished 304L stainless steel with Spectra Shield coating
Stabilizer bar for steadier transfers
Powered vertical travel and 360-degree continuous powered rotation
Fits pool wall setbacks of 6" to 28" with water draft up to 13"
Deluxe package adds a headrest and paddle-style footrest

Who It's For

Municipal aquatic centers and community pools
Universities, YMCAs and therapy pools
Commercial facilities upgrading to meet ADA pool access requirements

What's Included

Motion Trek BP350 lift (Standard or Deluxe per variant)
24 VDC rechargeable battery and wall charger with mounting bracket
Wired handset
Deck anchor on "with anchor" variants (153121 / 153121-DLX)

About the Brand

Spectrum Aquatics designs, fabricates and assembles its aquatic equipment at its own facility in Missoula, Montana. The line covers ADA pool lifts, lifeguard chairs, rails and ladders, starting platforms and other commercial deck equipment. Its stainless steel pool lifts are coated with Spectra-Shield for corrosion protection.

Performance

Lifting capacity: 350 lb
Lifts per battery charge: 90
Rotation: 360-degree continuous powered rotation

Installation

Pool wall setback: 6" to 28" (anchor centerline)
Water draft: Up to 13" (reduces above 23" setback)
Wall transfer height: 10" (without footrest)
Anchor: Single 2.375" I.D. deck anchor

Power

Battery: 24 VDC rechargeable, charger included

Controls

Handset: Wired handset, IP67, up/down/left/right and emergency stop

Construction

Material: Electropolished 304L stainless steel with Spectra Shield coating

Compliance

ADA: Fully ADA compliant (manufacturer statement)

Deluxe package

Adds: Headrest and paddle-style footrest

General

Pool type: In-ground, Above-ground, Spa
Application: Commercial
Product line: Motion Trek

Warranty

Warranty: 5-year structural; 2-year electronics

Compatibility

Anchors: 28510 composite, 28515-00 wood deck, 75521 surface mount

Spectrum Aquatics covers all of its pool lifts with a 5-year structural warranty, and battery-powered models carry a 2-year warranty on electronics. Register the lift with the serial number on its shaft through Spectrum's warranty registration page. Spectrum's standard warranty excludes transit damage, normal wear, chemical damage, misuse, improper installation, lack of maintenance, corrosion of metallic parts and labor to remove or install equipment.

: Both lift 350 lb with the same frame and controls. The Deluxe adds a headrest and a paddle-style footrest.
: Choose a with-anchor variant (153121 or 153121-DLX) to receive a deck anchor. Without-anchor variants suit decks that already have a compatible 2.375 inch anchor or need a wood deck or surface mount anchor ordered separately.
: Spectrum rates it for an anchor setback of 6 to 28 inches from the pool wall, with a water draft up to 13 inches. Maximum water draft drops as setback goes past 23 inches.
: Spectrum rates the Motion Trek at about 90 lifts per charge.
: Spectrum states a 5-year structural warranty on all of its pool lifts and a 2-year warranty on electronics for battery-powered models. Register the lift with the serial number on its shaft.
